ChinaCNCzone New Product HY-3040 Homemade CNC Router Machine 3 AxisChinaCNCzone New Product HY-3040 Homemade CNC Router Machine 3 AxisChinaCNCzone New Product HY-3040 Homemade CNC Router Machine 3 Axis

ChinaCNCzone New Product HY-3040 Homemade CNC Router Machine 3 Axis

  • product dimension 715(H)*700(L)*610(W) mm
  • effective work area 300*400*150mm
  • precision ballscrew 1605
  • XYZ rail material hard chrome shaft
  • spindle power 1500W/ 2200W water-cooled frequency spindle
  • input power 220V/ 110V power supply
  • output current drive 4.5A (peak 5A)
  • collet size 3/3.175/6mm if need others change into  ER11 first
ChinaCNC Product Highlight
New Product HY-3040 Homemade CNC Router Machine 3 Axis

Main features for HY-3040 Homemade CNC Router Machine 3 Axis

  • It can be updated into CNC mini router 4 axis and 5 axis CNC router.
  • Integrated high-speed micro computer intelligent control chip.
  • With external digital LCD monitor and handwheel controller.
  • Mach 3 software (Original Mach 3 software can be provided.)
  • New USB interface can be added (compatible with Mach 3 software)
  • Built in frequencey converter and without controller box.

Higher precision because:

  • Cross slippery platform design rather than gantry design.
  • Aluminum base sheet is heavy which can make sure no vibration when work.
  • With auto-checking function.
  • 1500w/2200W frequency water-cooled spindle for your selection.
  • Ball screw.

You can buy this  HY-3040 Homemade CNC Router Machine 3 Axis from us without any worry

  • CE approved.
  • Video support.
  • English manual available.
  • Mach 3 software send with the machine as a CD.
  • Can engrave material which hardness below 45.
  • From reliable & trustable profesional China CNC Router manufacturer.

HY-3040 Parameters



HY-3040 Homemade CNC Router Machine 3 Axis parameters
product dimension 715(H)*700(L)*610(W) mm
effective work area 300*400*150mm
precision ballscrew 1605
XYZ rail material hard chrome shaft
XY rail diameter 20mm
Z rail diameter 16mm
XYZ axis torque 57*78  250 OZ/IN (2.2N/CM)
repeat positioning accuracy 0.01mm
working precision  0.02mm
processing speed 0-4000 mm/min
XY table maximum load 50kg
tailgate material stainless steel
switching power supply integrated 24V 350W
spindle power 1500W/ 2200W water-cooled frequency spindle
input power 220V/ 110V power supply
output current drive 4.5A (peak 5A)
collet size 3/3.175/6mm if need others change into  ER11 first
high efficiency water pump  55W, 46.6L /Min
drive motor 57*78 stepper motors (two-phase 4 wire)
engraving material Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer system windowXP/ window 7
how to connect with computer 25 pin parallel port
software MACH3 3.04
net weight 50kg
packing wooden box
outside packing 78*66*82 (cm)
weight 96kg

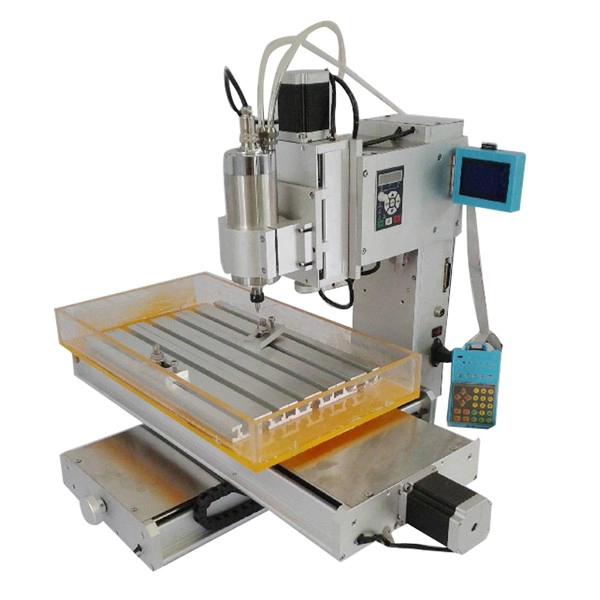

homemade cnc machine hy 3040

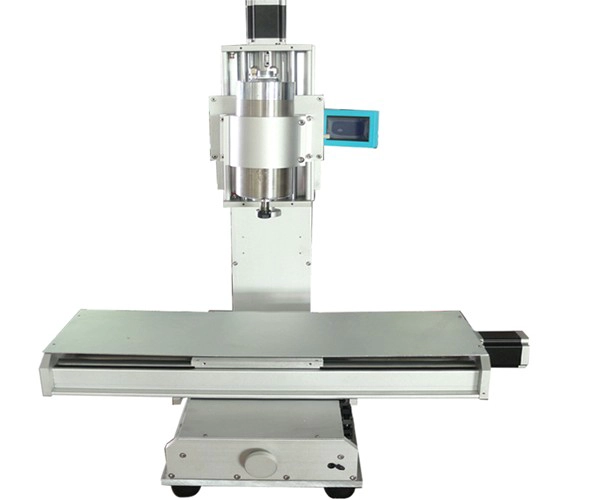

HY-3040 cnc router homemade
5 axis cnc machine 4.jpg

USB CNC To 25 Pins transfer cable

Ball Screw

HY-3040 CNC 3 Axis Router Engraver Machine Accessories


HY-3040 Gantry CNC Accessories


This Desktop HY-3040 Gantry CNC 3 Axis Router can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.

HY-3040 mini desktop 5 Axis CNC machine can do

3040 CNC Router for Aluminum

mini cnc 5 axis live demo
