![ChinaCNC Product Highlight](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/71/20151110122358433.png.webp)

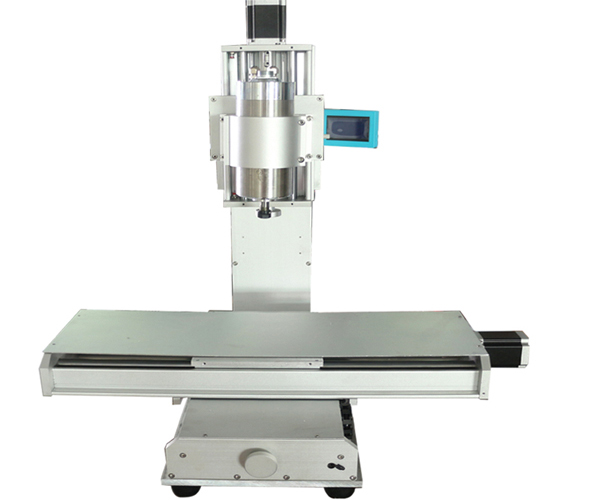

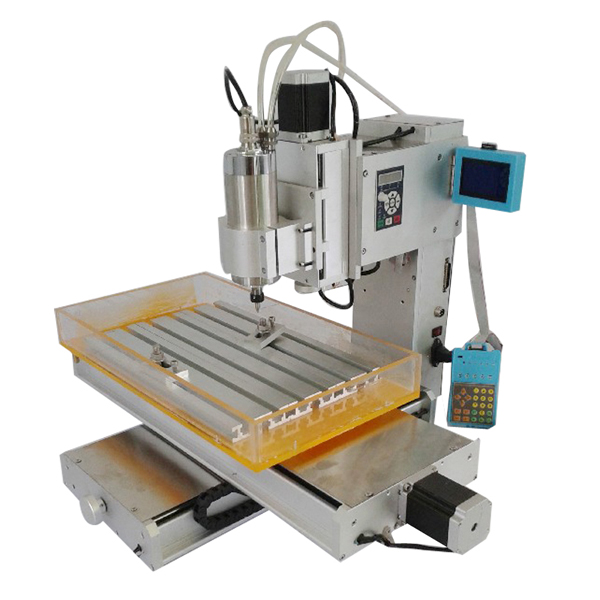

This HY-3040 Gantry CNC 3 Axis Router is our latest version of mini CNC router.
Easy operating because:
- It can be updated into mini 4 axis and 5 axis CNC router.
- Integrated high-speed micro computer intelligent control chip.
- With external digital LCD monitor and handwheel controller.
- The working process can be tracked, recorded in the digital LCD monitor automatically.
- Mach 3 software
- Built in frequencey converter and without controller box.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure no vibration when work.
- With auto-checking function.
- 1500w/2200W frequency water-cooled spindle for your selection.
- Ball screw.
You can buy this HY-3040 4 Axis CNC Router from us without any worry
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer.
- Original Mach 3 software can be provided.
- New USB interface can be added (compatible with Mach 3 software)
HY-3040 4 Axis CNC Router parameters | |
product dimension | 715(H)*700(L)*610(W) mm |
effective work area | 300*400*150mm |
precision ballscrew | 1605 |
XYZ rail material | hard chrome shaft |
XY rail diameter | 20mm |
Z rail diameter | 16mm |
XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |
4th and 5th | 57*56 |
4th and 5th transmission ratio | 1:6 |
repeat positioning accuracy | 0.01mm |
working precision | 0.02mm |
processing speed | 0-4000 mm/min |
A-axis B-axis rotation speed | 0-180 rpm/min |
XY table maximum load | 50kg |
XY+A+B axis table maximum load | 15kg |
tailgate material | stainless steel |
switching power supply | integrated 24V 350W |
spindle power | 1500W/ 2200W water-cooled frequency spindle |
input power | 220V/ 110V power supply |
output current | drive 4.5A (peak 5A) |
collet size | 3/3.175/6mm if need others change into ER11 first |
high efficiency water pump | 55W, 46.6L /Min |
drive motor | 57*78 stepper motors (two-phase 4 wire) |
engraving material | Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel |
(hardness less then 45 degree) | |
support computer system | windowXP/ window 7 |
how to connect with computer | 25 pin parallel port |
software | MACH3 3.04 |
net weight | 50kg |
packing | wooden box |
outside packing | 78*66*82 (cm) |
weight | 96kg |
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/2b/20151110155947211.png.webp)
![HY-3040 4 Axis CNC Router](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/90/20151118161605722.jpg.webp)
![HY-3040 4 Axis CNC Router](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/94/20151118161729879.jpg.webp)
![HY-3040 CNC Router 4 Axis](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/78/20151118161804270.jpg.webp)
![HY3040 the 4th Axis](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/3a/20151118161925121.jpg.webp)
![5 axis cnc machine 4.jpg](http://kfdown.s.aliimg.com/kf/HTB1n8MKGpXXXXb7XpXXq6xXFXXXR/200059102/HTB1n8MKGpXXXXb7XpXXq6xXFXXXR.jpg)
![Ball Screw](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/10/20151111121126656.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/0f/20151110161434450.png.webp)
This Desktop Mini 5 Axis CNC Machine HY 3040 can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.
![HY-3040 mini desktop 5 Axis CNC machine can do](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/69/20151110162155065.jpg.webp)
ChinaCNCzone
team always welcome customers from all over the world to visit our
factory, and let us provide the best diffirent models mini CNC routers for users together.
