New Product HY-3040 Homemade CNC Router Machine 3 AxisNew Product HY-3040 Homemade CNC Router Machine 3 AxisNew Product HY-3040 Homemade CNC Router Machine 3 Axis

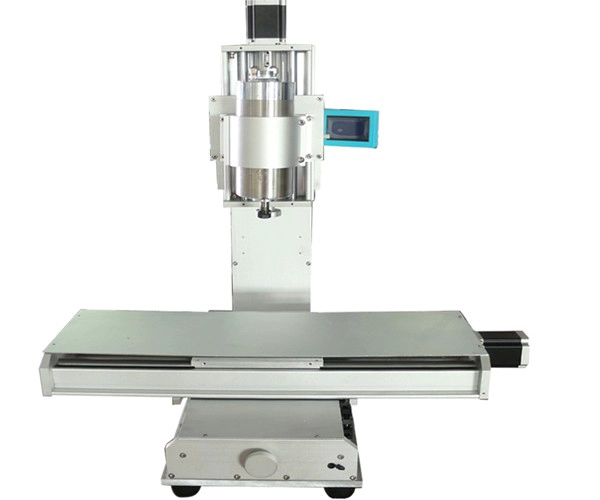

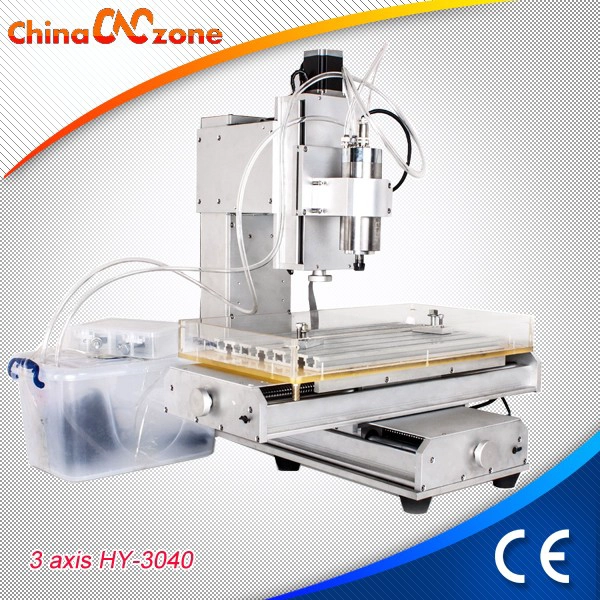

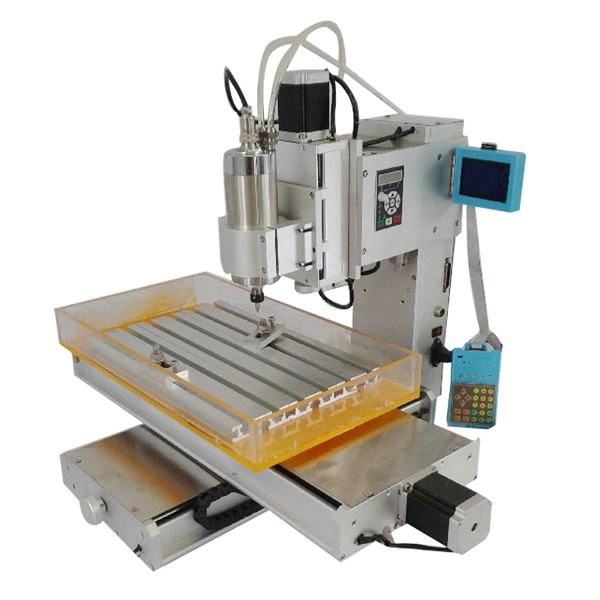

New Product HY-3040 Homemade CNC Router Machine 3 Axis

  • 464654
ChinaCNC Product Highlight
This HY-3040 Gantry CNC 3 Axis Router is our latest version of mini CNC router.

Easy operating because:

  • It can be updated into mini 4 axis and 5 axis CNC router.
  • Integrated high-speed micro computer intelligent control chip.
  • With external digital LCD monitor and handwheel controller.

  • The working process can be tracked, recorded in the digital LCD monitor automatically.
  • Mach 3 software
  • Built in frequencey converter and without controller box.

Higher precision because:

  • Cross slippery platform design rather than gantry design.
  • Aluminum base sheet is heavy which can make sure no vibration when work.
  • With auto-checking function.
  • 1500w/2200W frequency water-cooled spindle for your selection.
  • Ball screw.

You can buy this HY-3040 4 Axis CNC Router from us without any worry

  • CE approved.
  • Video support.
  • English manual available.
  • Mach 3 software send with the machine as a CD.
  • Can engrave material which hardness below 45.
  • From reliable & trustable profesional China CNC Router manufacturer.
  • Original Mach 3 software can be provided.
  • New USB interface can be added (compatible with Mach 3 software)

HY-3040 Parameters

 HY-3040 4 Axis CNC Router parameters
product dimension 715(H)*700(L)*610(W) mm
effective work area 300*400*150mm
precision ballscrew 1605
XYZ rail material hard chrome shaft
XY rail diameter 20mm
Z rail diameter 16mm
XYZ axis torque 57*78  250 OZ/IN (2.2N/CM)
4th and 5th  57*56
4th and 5th transmission ratio 1:6
repeat positioning accuracy 0.01mm
working precision  0.02mm
processing speed 0-4000 mm/min
A-axis B-axis rotation speed 0-180 rpm/min
XY table maximum load 50kg
XY+A+B axis table maximum load 15kg
tailgate material stainless steel
switching power supply integrated 24V 350W
spindle power 1500W/ 2200W water-cooled frequency spindle
input power 220V/ 110V power supply
output current drive 4.5A (peak 5A)
collet size 3/3.175/6mm if need others change into  ER11 first
high efficiency water pump  55W, 46.6L /Min
drive motor 57*78 stepper motors (two-phase 4 wire)
engraving material Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer system windowXP/ window 7
how to connect with computer 25 pin parallel port
software MACH3 3.04
net weight 50kg
packing wooden box
outside packing 78*66*82 (cm)
weight 96kg

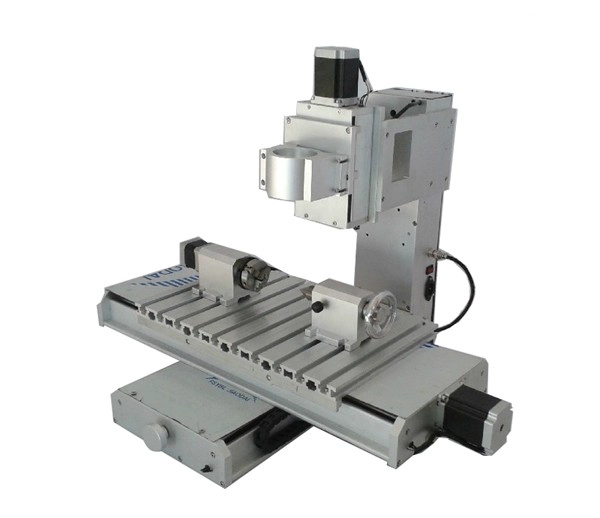

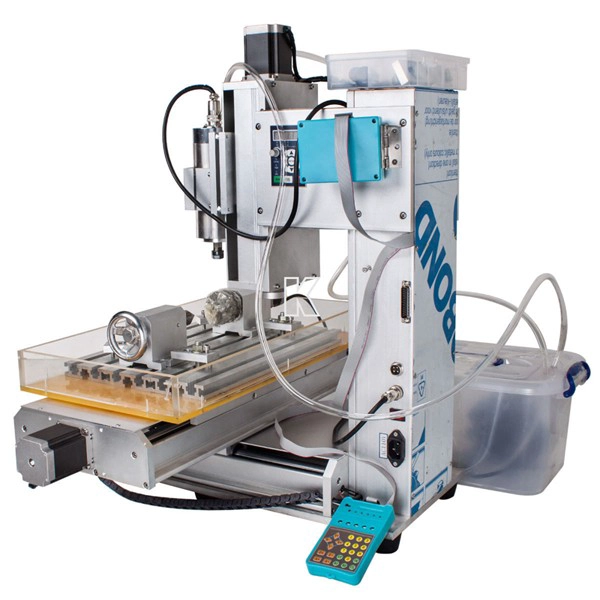

HY-3040 4 Axis CNC Router
HY-3040 4 Axis CNC Router

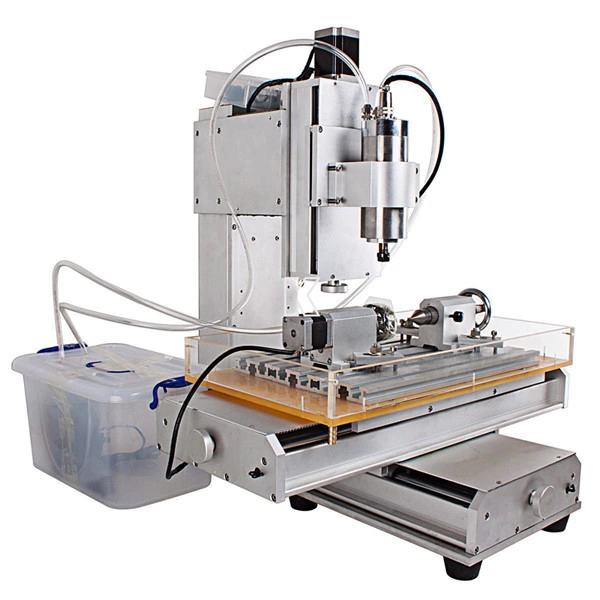

HY-3040 CNC Router 4 Axis

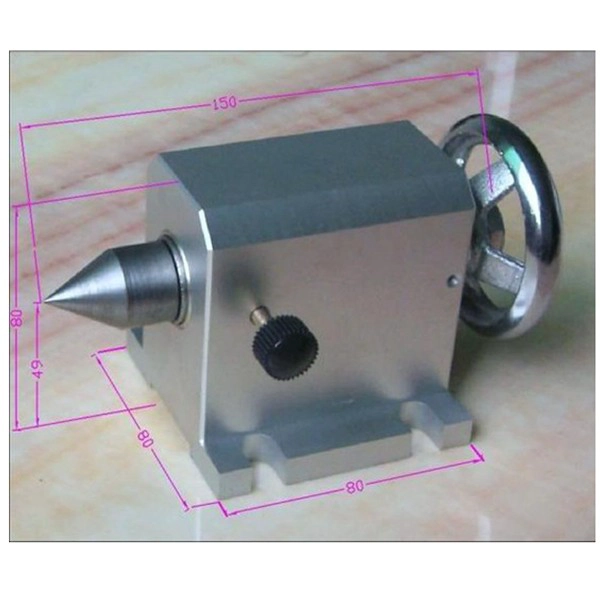

HY3040 the 4th Axis
5 axis cnc machine 4.jpg

Ball Screw


This Desktop Mini 5 Axis CNC Machine HY 3040 can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.

HY-3040 mini desktop 5 Axis CNC machine can do

mini cnc 5 axis live demo

ChinaCNCzone Factory Tour
ChinaCNCzone team always welcome customers from all over the world to visit our factory, and let us provide the best diffirent models mini CNC routers for users together.
China CNC Router Factory
Mini CNC Router Certificate

Mini cnc router certificate

ChinaCNCzone Company culture

ChinaCNCzone Culture
ChinaCNCzone Team
