ChinaCNCzone HY-3040 Jewelry Engraving Machine for Sale with 2200W Spindle and Water Cooling System
- product dimension 715(H)*700(L)*610(W) mm
- effective work area 300*400*150mm
- precision ballscrew 1605
- XYZ rail material hard chrome shaft
- spindle power 1500W/ 2200W water-cooled frequency spindle
- input power 220V/ 110V power supply
- output current drive 4.5A (peak 5A)
- collet size 3/3.175/6mm if need others change into ER11 first
![ChinaCNC Product Highlight](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/71/20151110122358433.png.webp)
ChinaCNCzone HY-3040 Jewelry Engraving Machine for Sale with 2200W Spindle and Water Cooling System
- It is 3 axis a d can be updated into 4 xis CNC router and 5 axis CNC router.
- Integrated high-speed micro computer intelligent control chip.
- With external digital LCD monitor and handwheel controller.
- Mach 3 software (Original Mach 3 software can be provided.)
- Built in frequencey converter and without controller box.
- With water cooling system
- Ideal mini CNC engraving machine for jewelry.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure no vibration when work.
- With auto-checking function.
- 1500w/2200W frequency water-cooled spindle for your selection.
- Ball screw.
You can buy this ChinaCNCzone HY-3040 Jewelry Engraving Machine for Sale with 2200W Spindle and Water Cooling System
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China mini cnc machine manufacturer.
HY-3040 Jewelry Engraving Machine parameters | |
product dimension | 715(H)*700(L)*610(W) mm |
effective work area | 300*400*150mm |
precision ballscrew | 1605 |
XYZ rail material | hard chrome shaft |
XY rail diameter | 20mm |
Z rail diameter | 16mm |
XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |
repeat positioning accuracy | 0.01mm |
working precision | 0.02mm |
processing speed | 0-4000 mm/min |
XY table maximum load | 50kg |
tailgate material | stainless steel |
switching power supply | integrated 24V 350W |
spindle power | 1500W/ 2200W water-cooled frequency spindle |
input power | 220V/ 110V power supply |
output current | drive 4.5A (peak 5A) |
collet size | 3/3.175/6mm if need others change into ER11 first |
high efficiency water pump | 55W, 46.6L /Min |
drive motor | 57*78 stepper motors (two-phase 4 wire) |
engraving material | Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel |
(hardness less then 45 degree) | |
support computer system | windowXP/ window 7 |
how to connect with computer | 25 pin parallel port |
software | MACH3 3.04 |
net weight | 50kg |
packing | wooden box |
outside packing | 78*66*82 (cm) |
weight | 96kg |

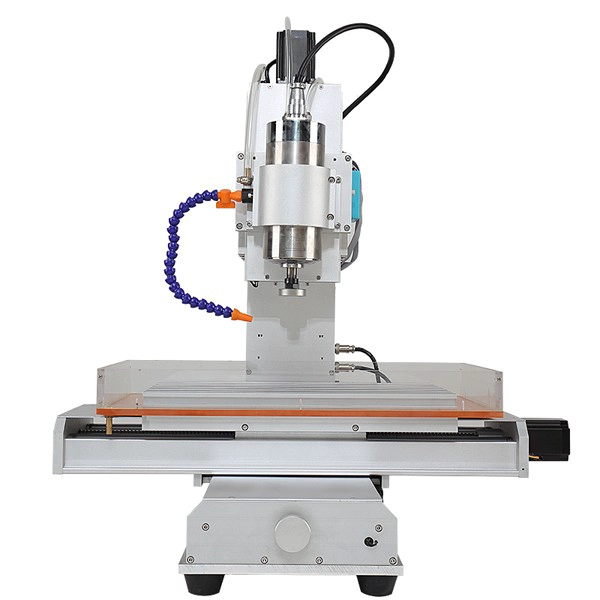

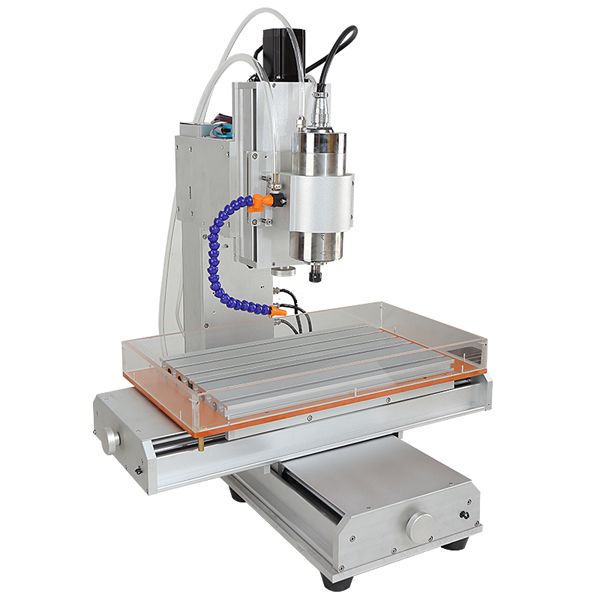

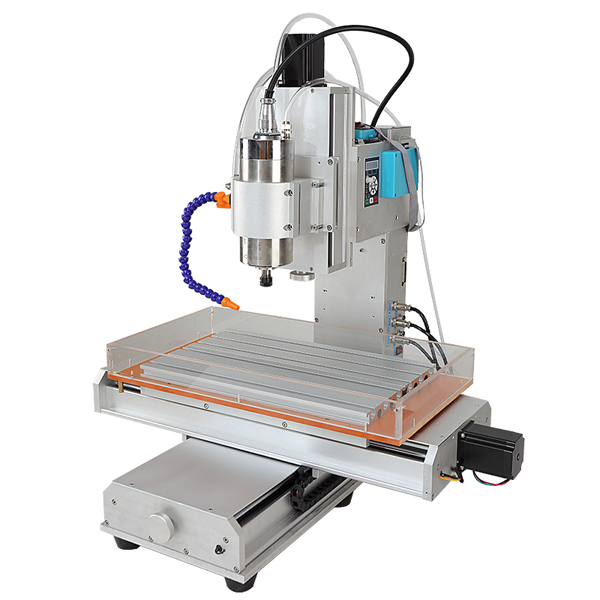

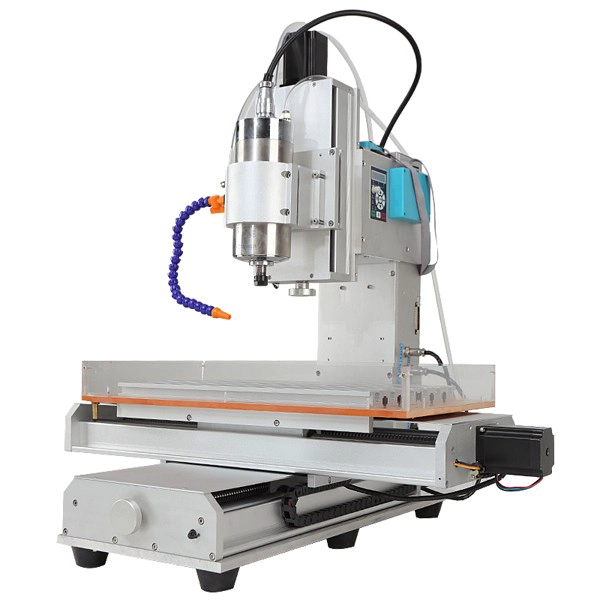

HY-3040 Jewelry Engraving Machine pictures
![jewelry engraving machine for sale](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/1d/20160729153750699.jpg.webp)
![engraving machine for jewelry](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/5f/20160729153826213.jpg.webp)
![engraving machine for jewelry](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/85/20160729153848338.jpg.webp)
![jewelry engraving machine](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/c8/20160729153906557.jpg.webp)
![Ball Screw](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/10/20151111121126656.jpg.webp)
HY-3040 CNC 3 Axis Router Engraver Machine Accessories
![HY-3040 Gantry CNC Accessories](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/28/20151120115452646.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/0f/20151110161434450.png.webp)
ChinaCNCzone HY-3040 Jewelry Engraving Machine for Sale with 2200W Spindle and Water Cooling System
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/ce/20160729153959983.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/16/20160729154152299.png.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/85/20160729154212302.png.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/118/images/cc/20160729154227303.png.webp)
