Best Small Desktop 5 Axis CNC Mill Machine HY 3040 New for Aluminum Milling for SaleBest Small Desktop 5 Axis CNC Mill Machine HY 3040 New for Aluminum Milling for SaleBest Small Desktop 5 Axis CNC Mill Machine HY 3040 New for Aluminum Milling for SaleBest Small Desktop 5 Axis CNC Mill Machine HY 3040 New for Aluminum Milling for Sale

Best Small Desktop 5 Axis CNC Mill Machine HY 3040 New for Aluminum Milling for Sale

  • Best Affordable Small Desktop 5 Axis CNC Mill Machine HY 3040 for Aluminum Milling for Sale
  • product dimension 715(H)*700(L)*610(W) mm
  • effective work area 300*400*150mm
  • precision ballscrew 1605
  • XYZ rail material hard chrome shaft
  • XY rail diameter 20mm
This is the new version of Small Desktop 5 Axis CNC Mill Machine HY 3040 released by ChinaCNCzone.
What are the new compared with the old version ?
1.Powermill and UG post processor free provided with this desktop 5 axis CNC mill HY 3040.This is very important , Because it can save at leat 3-5 days for your experienced engineer, and also means it will save your money around 300USD-700usd at least! Because ChinaCNCzone already have the best desktop 5 axis CNC mill machine engineer done for your fast and easy using!
5 Axis CNC post processor
2. It supports USB connection! Plug and use, user friendly much more than parallel port!
mach3 usb cnc
USB CNC driver board
3.Each axis is equipped with independent driver,higher accuracy and efficiency.

4.Larger stepper motor, larger holding torque for A.B axis, it ensures the larger fixed strength, accuracy and efficiency for A,B axis when do 5 axis cnc machining.
5.Specially design the fasteners for the 5th axis, and the vibration was reduced efficiently.
6.Provide the test G-code and technical support freely.
7.With stainless steel water tank.(the old is acrylic water tank)

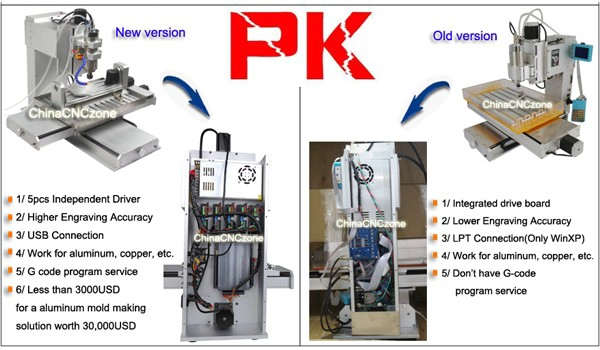

New desktop 5 axis CNC mill
small 5 axis CNC mill
small 5 axis CNC mill
What are the main features for this Small USB Desktop 5 Axis CNC Mill Machine HY 3040?
1.Integrated high-speed micro computer intelligent control chip.
2.With external digital LCD monitor
3. The working process can be tracked, recorded in the digital LCD monitor automatically.
4. Mach 3 software
5. Built in frequencey converter and without controller box.
6.Aluminum base sheet is heavy which can make sure no vibration when work.
7.With auto-checking function.
8.1500w/2200W frequency water-cooled spindle for your selection.
9. Ball screw.
10.CE approved.
11.Video support.
12.English manual available.
13.Mach 3 software send with the machine as a CD.
14.Can engraving aluminum and so on other hard material.
15. From reliable & trustable profesional China CNC Router manufacturer.

What are the parameters for this new Small Desktop 5 Axis CNC Mill Machine HY 3040?

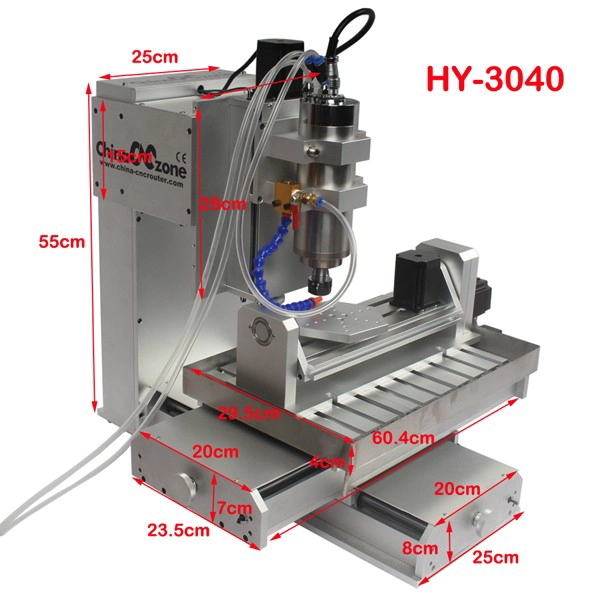

Desktop 5 axis CNC mill

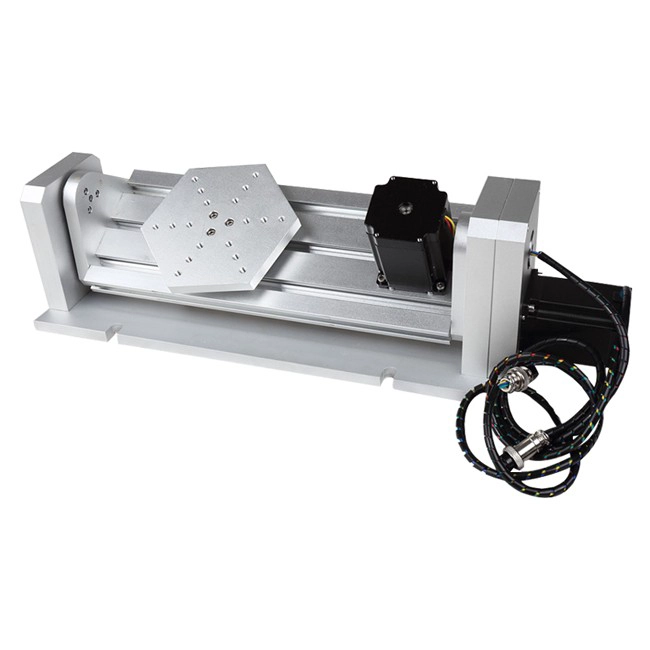

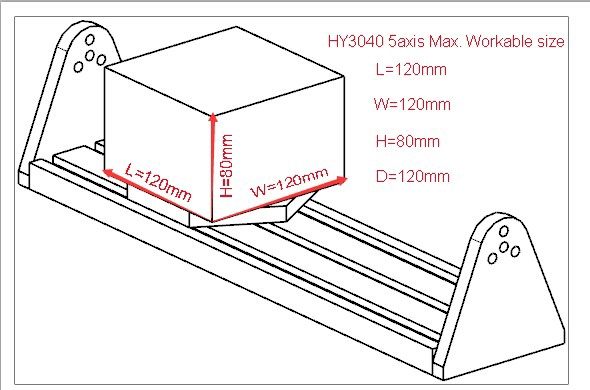

5th axis CNC

Desktop 5 axis CNC Mill HY 3040 parameters
product dimension 715(H)*700(L)*610(W) mm
effective work area 300*400*150mm
precision ballscrew 1605
XYZ rail material hard chrome shaft
XY rail diameter 20mm
Z rail diameter 16mm
XYZ axis torque 57*78  250 OZ/IN (2.2N/CM)
4th and 5th  57*56
4th and 5th transmission ratio 1:06
repeat positioning accuracy 0.01mm
working precision  0.02mm
processing speed 0-4000 mm/min
A-axis B-axis rotation speed 0-180 rpm/min
XY table maximum load 50kg
XY+A+B axis table maximum load 15kg
tailgate material stainless steel
switching power supply integrated 24V 350W
spindle power 1500W/ 2200W water-cooled frequency spindle
input power 220V/ 110V power supply
output current drive 4.5A (peak 5A)
collet size 3/3.175/6mm if need others change into  ER11 first
high efficiency water pump  55W, 46.6L /Min
drive motor 57*78 stepper motors (two-phase 4 wire)
engraving material Metal,Brass, Acrylic, Wood, Aluminum and so on
(hardness less then 45 degree)
support computer system windowXP/ window 7
how to connect with computer USB connection
software MACH3 3.04
net weight 50kg
packing wooden box
outside packing 78*66*82 (cm)
weight 96kg

More pictures for this new Small Desktop 5 Axis CNC Mill Machine HY 3040

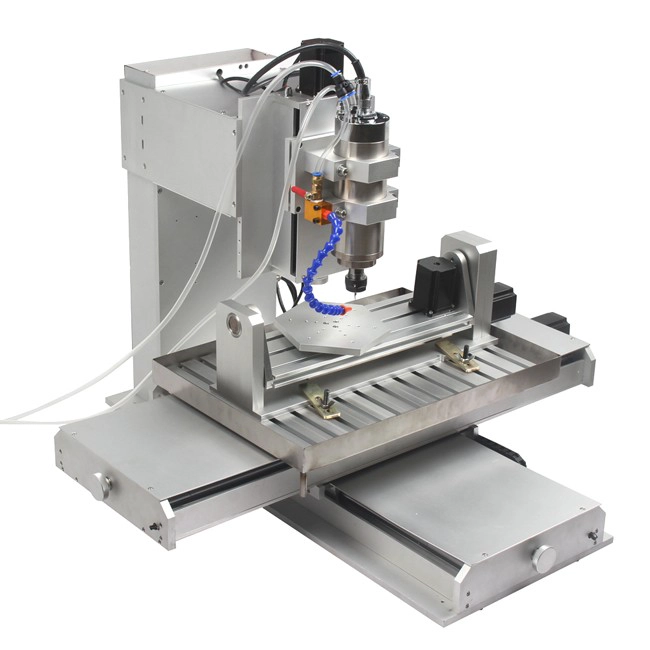

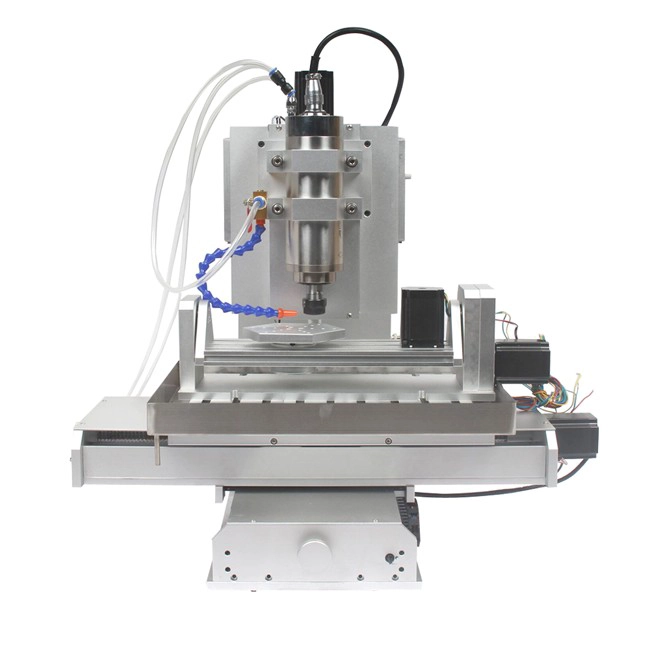

Desktop 5 axis CNC Mill

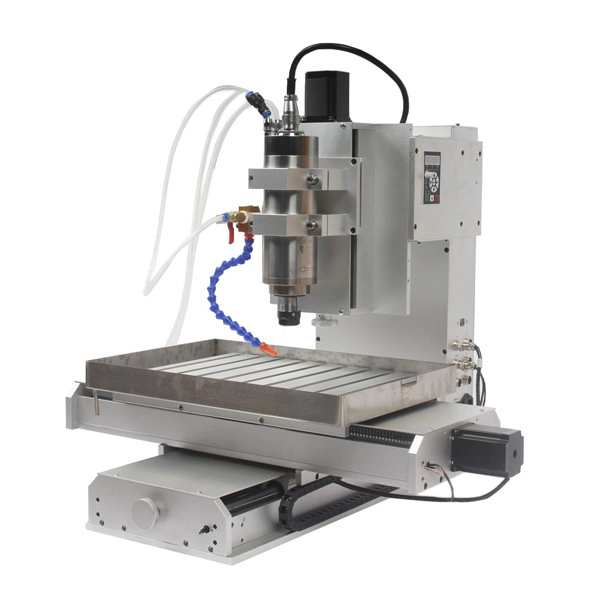

5 axis CNC Mill

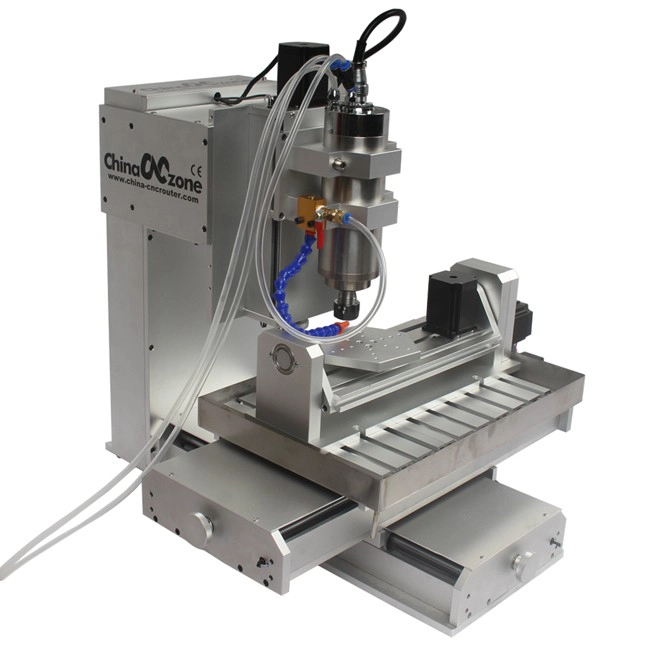

Best 5 axis CNC mill

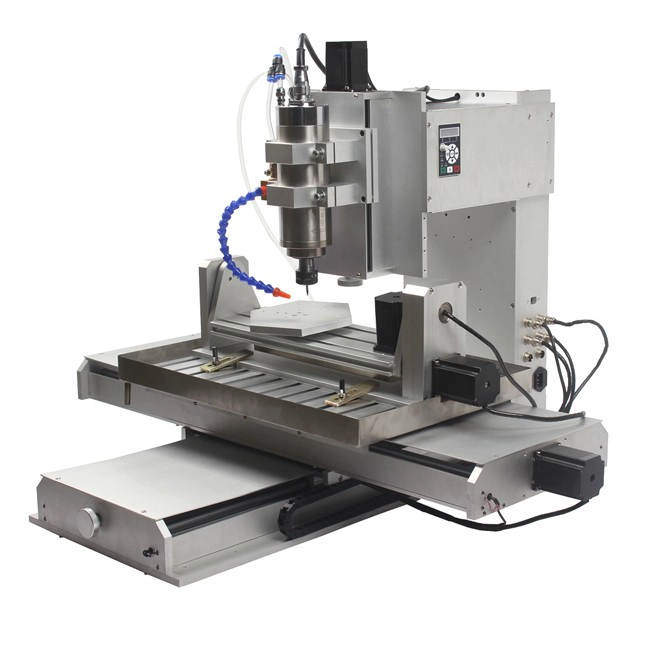

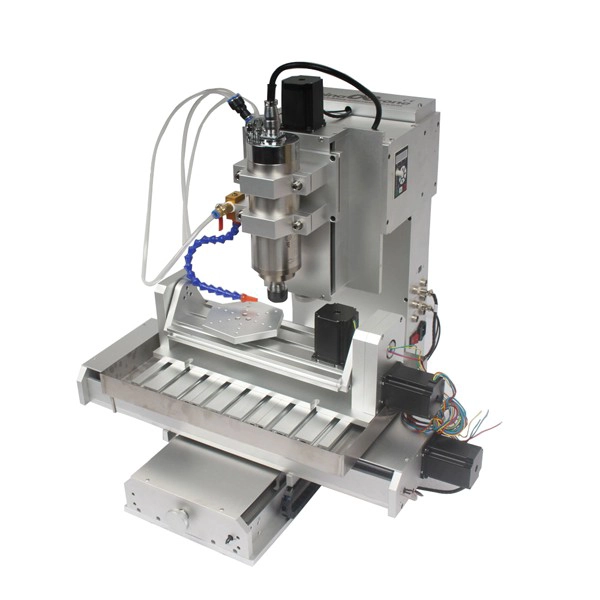

desktop 5 axis CNC milling machine

Ball Screw

What this Small Desktop 5 Axis CNC Mill Machine HY 3040 can do?
This newSmall Desktop 5 Axis CNC Mill Machine HY 3040 can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on. Through our test, it can engrave aluminum easily.
5 axis CNC Mill sample

HY-3040 mini desktop 5 Axis CNC machine can do
5 axis CNC Mill for aluminum
Mini 5 axis CNC sample

mini cnc 5 axis live demo

Trust6 Alternator Bracket
trust6 round decal
R32 R33 R34 Nissan Skyline Billet  Nismo Upper Radiator Brackets
5 axis CNC router machining Sample
