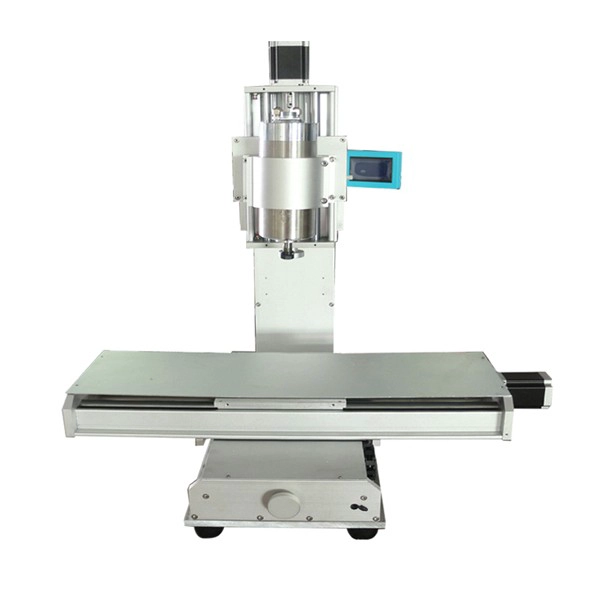

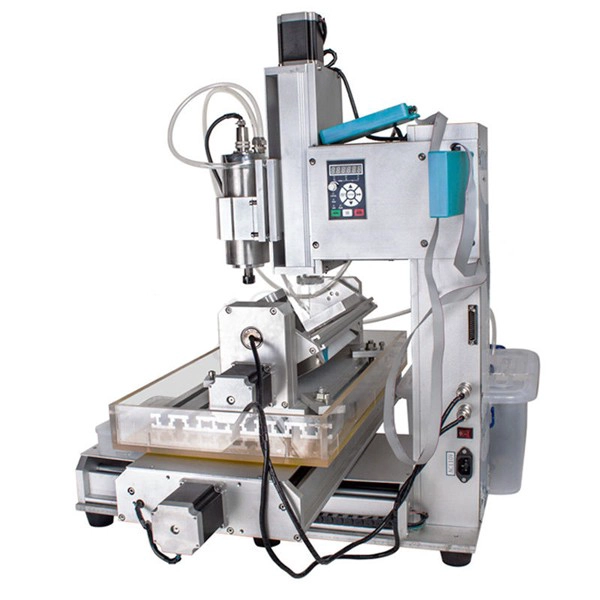

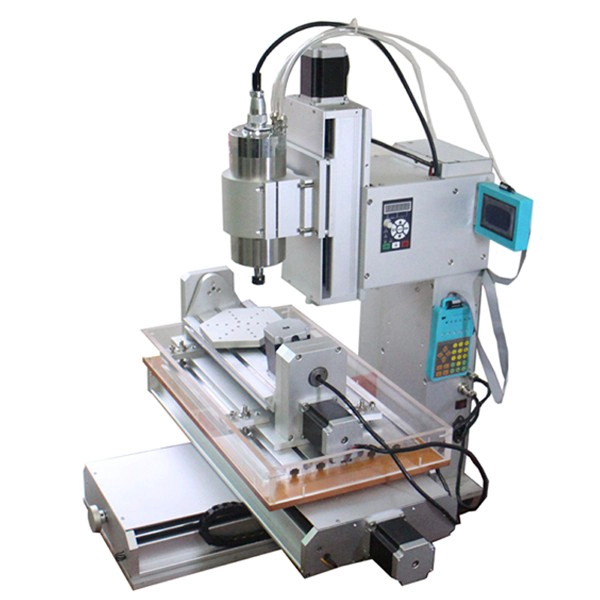

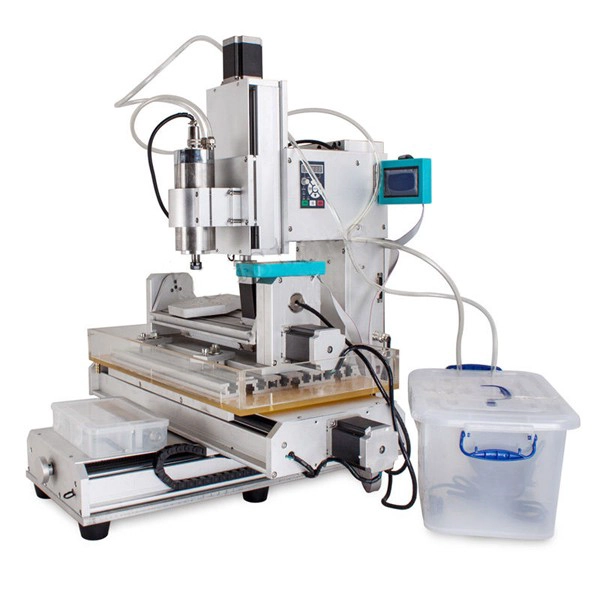

HY-3040 Small Homemade 5 Axis CNC Milling Machine for Sale
- product dimension 715(H)*700(L)*610(W) mm
- effective work area 300*400*150mm
- precision ballscrew 1605
- spindle power 1500W/ 2200W water-cooled frequency spindle
- input power 220V/ 110V power supply
- output current drive 4.5A (peak 5A)
- collet size 3/3.175/6mm if need others change into ER11 first
HY-3040 Small Homemade 5 Axis CNC Milling Machine for Sale
Easy operating because:
- Integrated high-speed micro computer intelligent control chip.
- With external digital LCD monitor and handwheel controller.
- The working process can be tracked, recorded in the digital LCD monitor automatically.
- Mach 3 software
- Built in frequencey converter and without controller box.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure no vibration when work.
- With auto-checking function.
- 1500w/2200W water-cooled spindle for your selection.
- Ball screw.
You can buy this HY-3040 Small Homemade 5 Axis CNC Milling Machine
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer.
- Original Mach 3 software can be provided.
- New USB interface can be added (compatible with Mach 3 software)
HY-3040 Small Homemade 5 Axis CNC Milling Machine parameters | |
product dimension | 715(H)*700(L)*610(W) mm |
effective work area | 300*400*150mm |
precision ballscrew | 1605 |
XYZ rail material | hard chrome shaft |
XY rail diameter | 20mm |
Z rail diameter | 16mm |
XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |

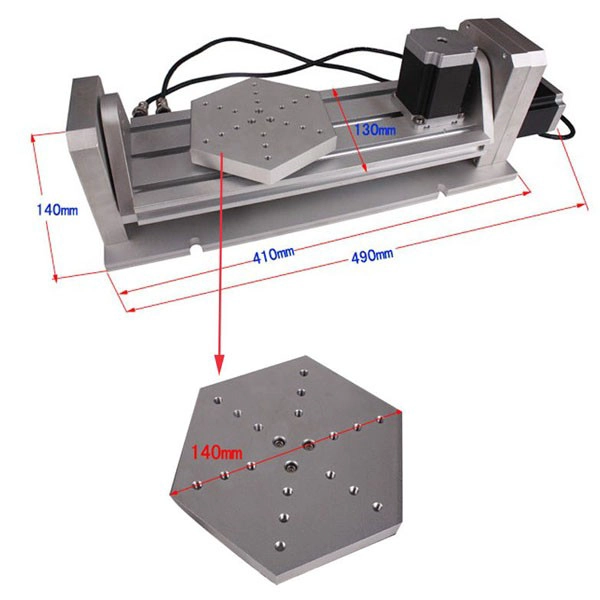

4th and 5th | 57*56 |
4th and 5th transmission ratio | 1:6 |
repeat positioning accuracy | 0.01mm |
working precision | 0.02mm |
processing speed | 0-4000 mm/min |
A-axis B-axis rotation speed | 0-180 rpm/min |
XY table maximum load | 50kg |
XY+A+B axis table maximum load | 15kg |
tailgate material | stainless steel |
switching power supply | integrated 24V 350W |
spindle power | 1500W/ 2200W water-cooled frequency spindle |
input power | 220V/ 110V power supply |
output current | drive 4.5A (peak 5A) |
collet size | 3/3.175/6mm if need others change into ER11 first |
high efficiency water pump | 55W, 46.6L /Min |
drive motor | 57*78 stepper motors (two-phase 4 wire) |
engraving material | Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel |
(hardness less then 45 degree) | |
support computer system | windowXP/ window 7 |
how to connect with computer | 25 pin parallel port |
software | MACH3 3.04 |
net weight | 50kg |
packing | wooden box |
outside packing | 78*66*82 (cm) |
weight | 96kg |
This HY-3040 Small Homemade 5 Axis CNC Milling Machine can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.
ChinaCNCzone team always welcome customers from all over the world to visit our factory, and let us provide the best diffirent models mini CNC routers for users together.
