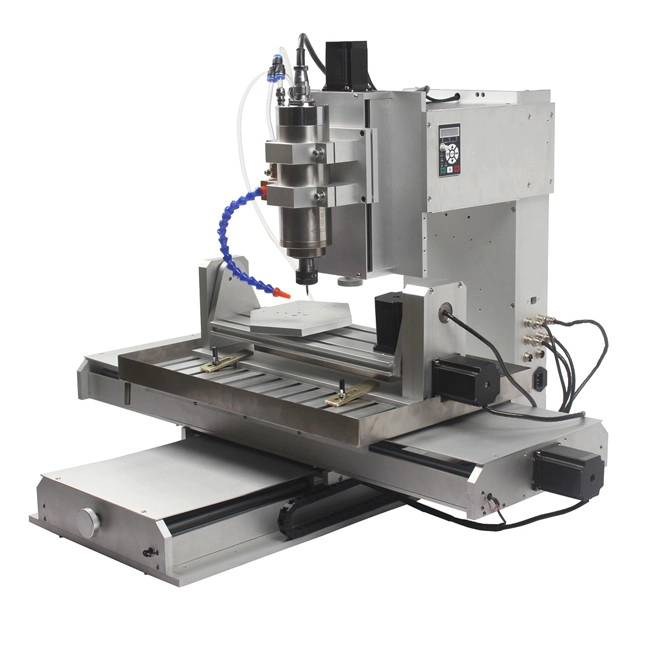

HY-6040 DIY 5 Axis CNC Router for Sale

HY-6040 DIY 5 Axis CNC Router for Sale

  • effective working travel 375(X)mm*535(Y)mm*150(Z)mm
  • product dimension 715(H)*700(L)*610(W) mm
  • effective work area 600*400*150mm
  • spindle power 1500W/ 2200W water-cooled frequency spindle
  • input power 220V/ 110V power supply
  • output current drive 4.5A (peak 5A)
  • collet size 3/3.175/6mm if need others change into  ER11 first
  • engraving material Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
  • (hardness less then 45 degree)
  • support computer system windowXP/ window 7
ChinaCNC Product Highlight
This HY-6040 5 axis CNC Router machine is our latest gantry design with higher precision.
It is the the updation of HY-3040 mini 5 axis CNC machine with much larger working area.

Now accept customization design from customers.

Easy operating because:

  • Integrated high-speed micro computer intelligent control chip.
  • With external digital LCD monitor and handwheel controller.
  • The working process can be tracked, recorded in the digital LCD monitor automatically.
  • Mach 3 software
  • Built in frequencey converter and without controller box.

Higher precision because:

  • Cross slippery platform design rather than gantry design.
  • Aluminum base sheet is heavy which can make sure no vibration when work.
  • With auto-checking function.
  • 1500w/2200W frequency water-cooled spindle for your selection.
  • Ball screw.

You can buy this HY-6040 DIY 5 Axis CNC Router  from us without any worry

  • CE approved.
  • Video support.
  • English manual available.
  • Mach 3 software send with the machine as a CD.
  • Can rock material well 45 degree.
  • From reliable & trustable profesional China CNC Router manufacturer.

HY-3040 Parameters

 HY-6040 DIY 5 Axis CNC Router for Sale
product dimension 715(H)*700(L)*610(W) mm
effective work area 600*400*150mm
precision ballscrew 1605
XYZ rail material hard chrome shaft
XY rail diameter 20mm
Z rail diameter 16mm
XYZ axis torque 57*78  250 OZ/IN (2.2N/CM)
4th and 5th  57*56
4th and 5th transmission ratio 1:6
repeat positioning accuracy 0.01mm
working precision  0.02mm
processing speed 0-4000 mm/min
A-axis B-axis rotation speed 0-180 rpm/min
XY table maximum load 50kg
XY+A+B axis table maximum load 15kg
tailgate material stainless steel
switching power supply integrated 24V 350W
spindle power 1500W/ 2200W water-cooled frequency spindle
input power 220V/ 110V power supply
output current drive 4.5A (peak 5A)
collet size 3/3.175/6mm if need others change into  ER11 first
high efficiency water pump  55W, 46.6L /Min
drive motor 57*78 stepper motors (two-phase 4 wire)
engraving material Metal,Brass, Acrylic, Wood, Aluminum, Stainless Steel
(hardness less then 45 degree)
support computer system windowXP
how to connect with computer 25 pin parallel port
software MACH3 3.04
net weight 70kg
packing wooden box
outside packing 88*96*92 (cm)
weight 149kg

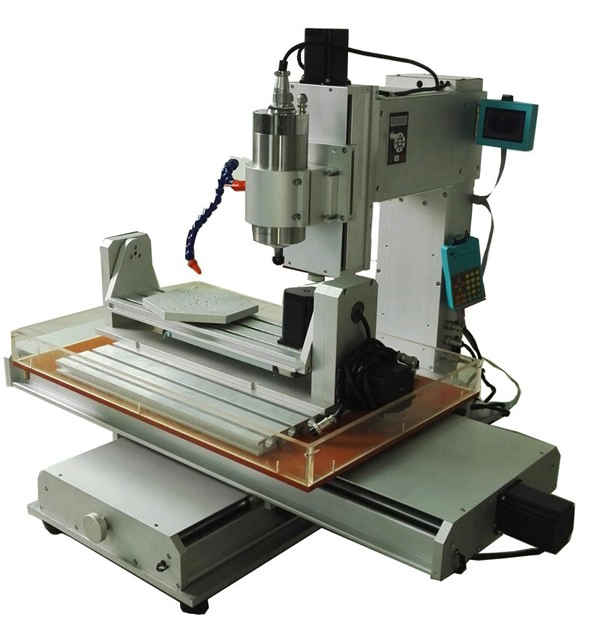

DIY 5 AXIS CNC rOUTER
HY-6040 Mini 5 Axis
HY-6040 Mini CNC Work Sample


5 axis cnc machine 4.jpg

Ball Screw


This Desktop Mini 5 Axis CNC Machine HY 6040 can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.

HY-3040 mini desktop 5 Axis CNC machine can do

mini cnc 5 axis live demo
