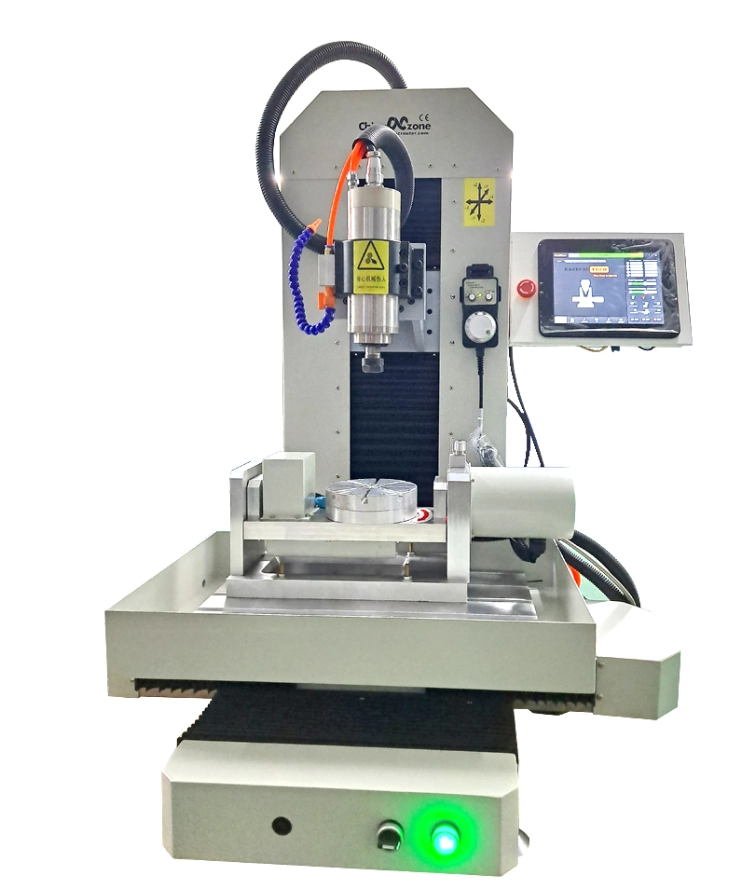

High Precision Mini Metal 5 Axis 3D Cnc Milling Router Machine

  • Effective working travel(3axis): 400*300*4000mm
  • Effective working travel(5axis): 200*200*200mm
  • Shape dimension: 820*990*1100mm
  • Working table dimension: 500*300mm
  • Machine frame material: 45#steel
  • Acceptable material size: 400*300mm
  • Safeguard:                     Photoelectric limit
  • Driving units X/Y/Z Axis:  SFU2005 Ball srew C7 level
  • Sliding units X/Y/Z Axis : HGH20 linear guide

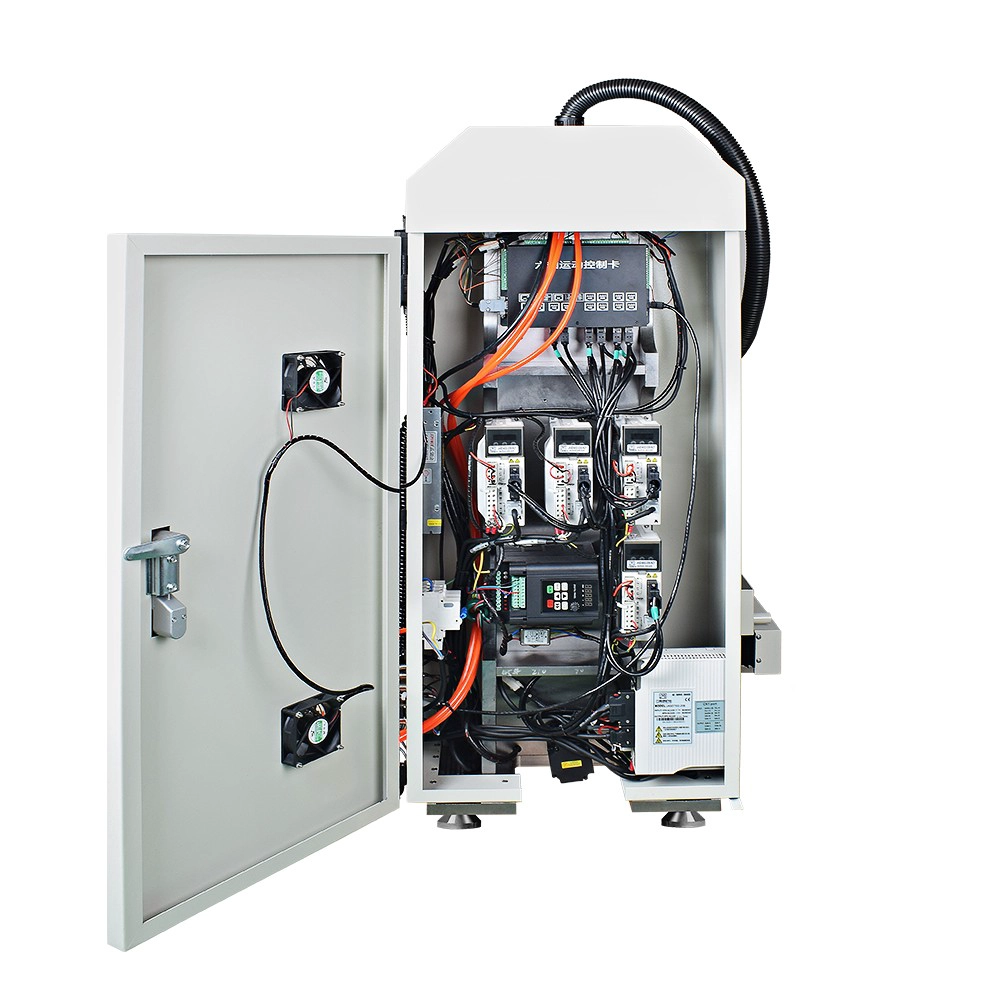

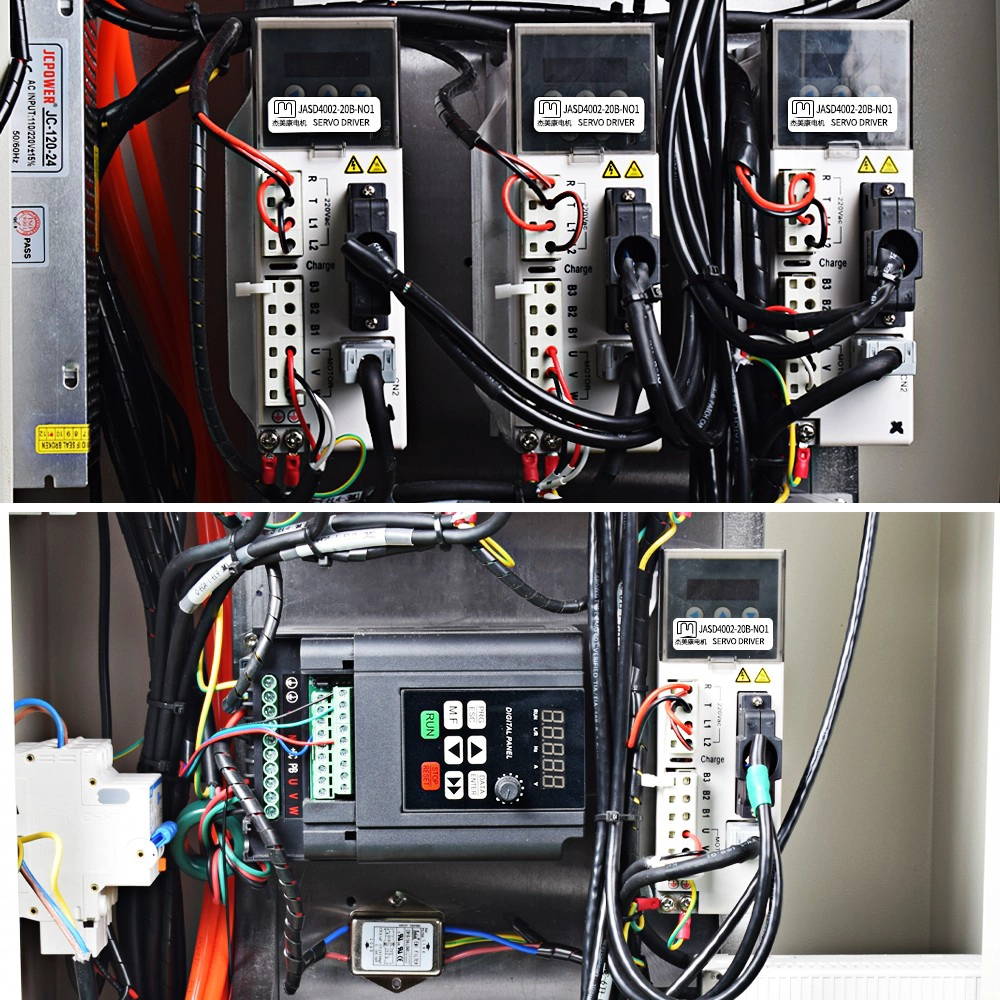

  • Control units: 3pcs independent BC servo driver + RTCP System
  •                                           B/C axis Harmonic reducer
  • A axis(Rotary axis): 360degree
  • B axis(Slope): 90degree
  • speed ratio: 1:120
  • Maximum torque 148N.m
  • servo motor type: XYBC axis 60 400W Rated torque: 1.27N.m, Peak torque: 3.81
  •                          Z axis 80 750W Rated torque: 2.39N.m, Peak torque: 7.17

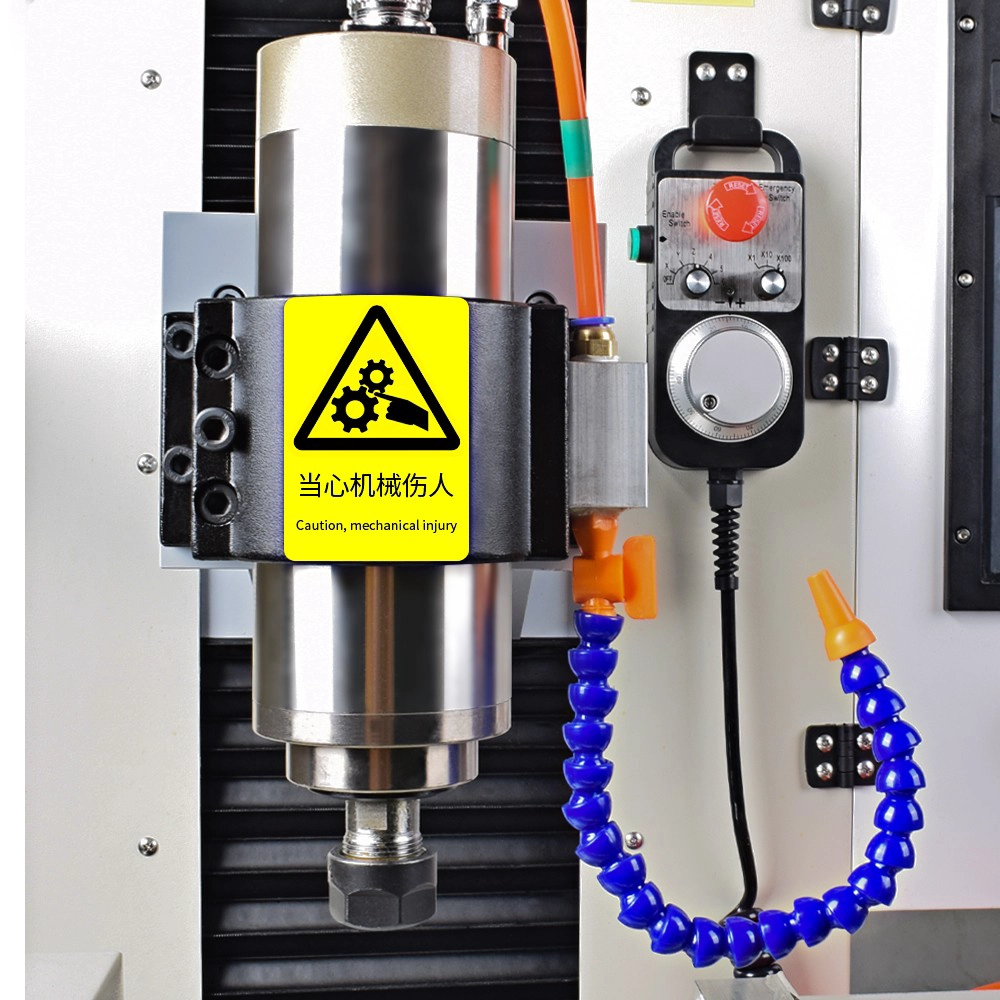

  • Spindle motor: Brand new 2200W water cooling spindle, 24000RPM
  • Principal axis collet: ER-20 1-13mm
  • Repeat accuracy: 0.02~0.05mm
  • Spindle precision: radial beat accuracy 0.02 mm
  • Operating system: RTCP CNC System
  • Maximum speed: 0-4000mm/min

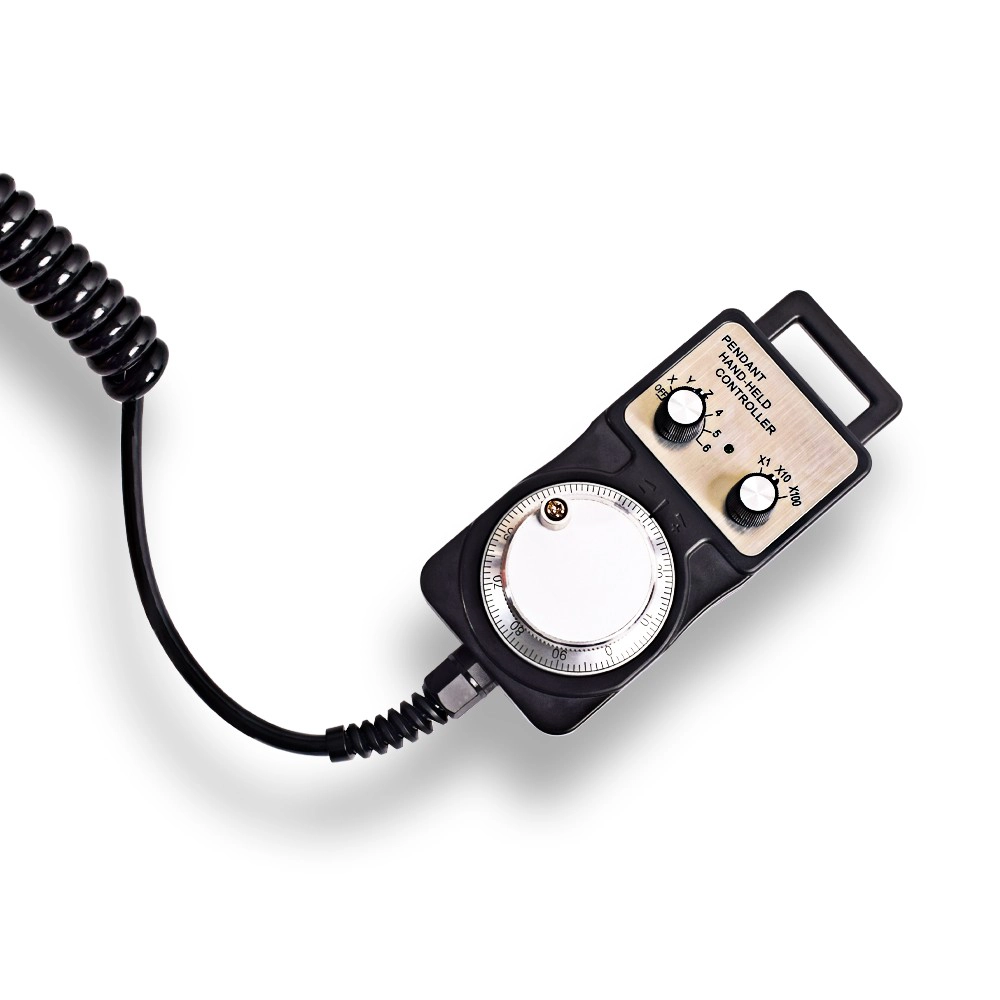

  • Computer connection: RTCP,support handwheel
  • Command code: Tap、 nc 、ncc、 txt

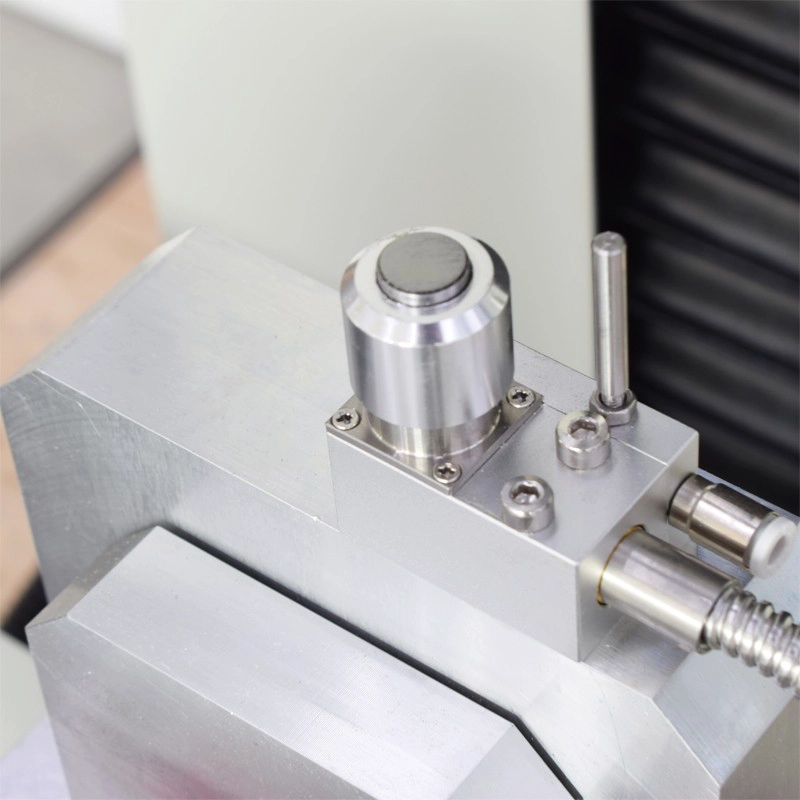

  • Safeguard: Photoelectric limit switch
  • Operating Voltage: AC220V/110V
  • Warranty: 1 Year

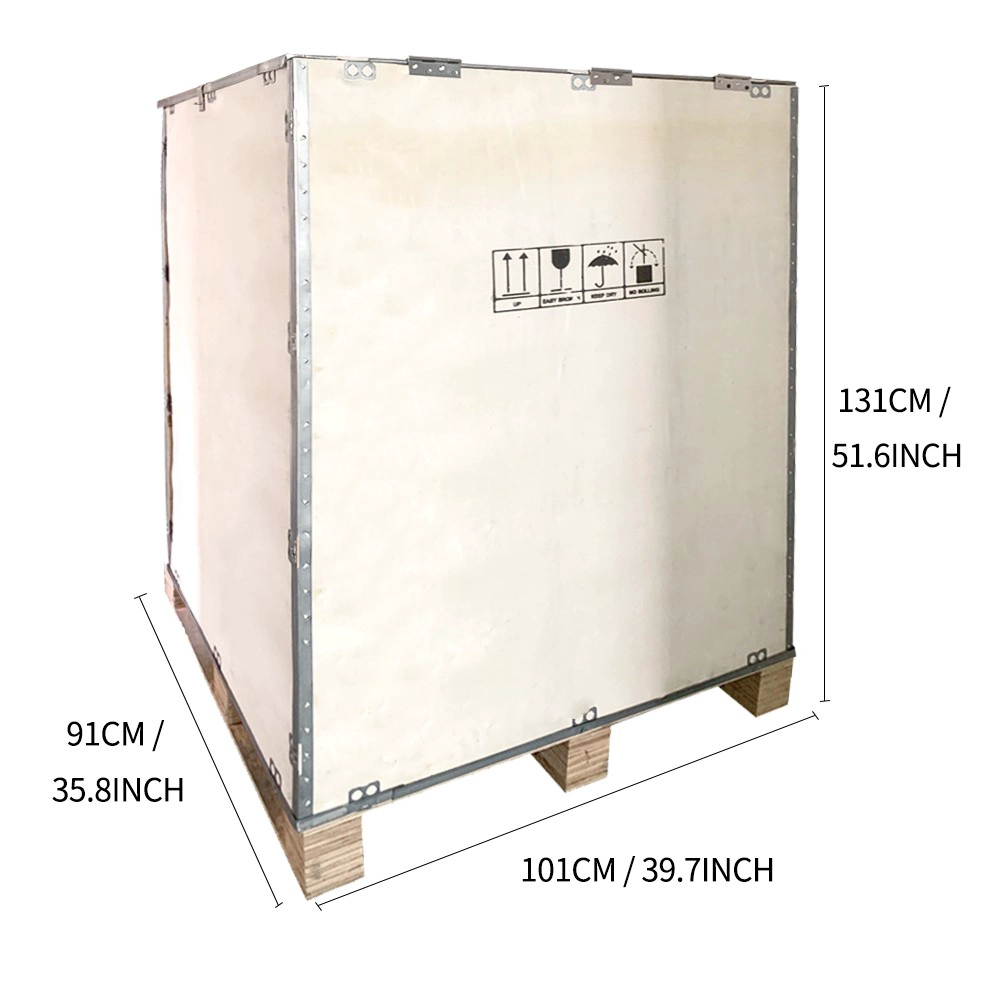

  • Package size: One wooden box,980*1070*1250mm
  • Gross weight: 285kg

ChinaCNCzone HY-3040 5 Axis CNC Millfor Sale

FREE TAX!!! to EU and RU!!!



1/ We will ship this machine to Moscow by Toanda from China,and transfer to you from Moscow by Russia local shipping company with door todoor shipping way. the machine will be deliveried to your home.

the delivery time is usually 20-40 days. and notax fee by this way!





2/ Germany/ United Kingdom/ France/ Spain/ Italy/ Poland

Austria/ Belgium/ Czech Republic/ Denmark/ Lithuania/ Bulgaria/ Estonia/Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/Sweden



All above countrybuyers free tax!!!we will ship by train to Poland, and transfer to your door byEU local shipping.





Higher precision:


·        Heavier steel structure

·        XHC control board

·        2200w water-cooledspindle

·            2005 Ball screw

·        Integrated high-speedmicro computer intelligent control chip.

·        First STEEL STRUCTURE CNC3040 5axis in the Market

·        RTCP software, supportsWin10

·        Built in frequencey converterand without controller box

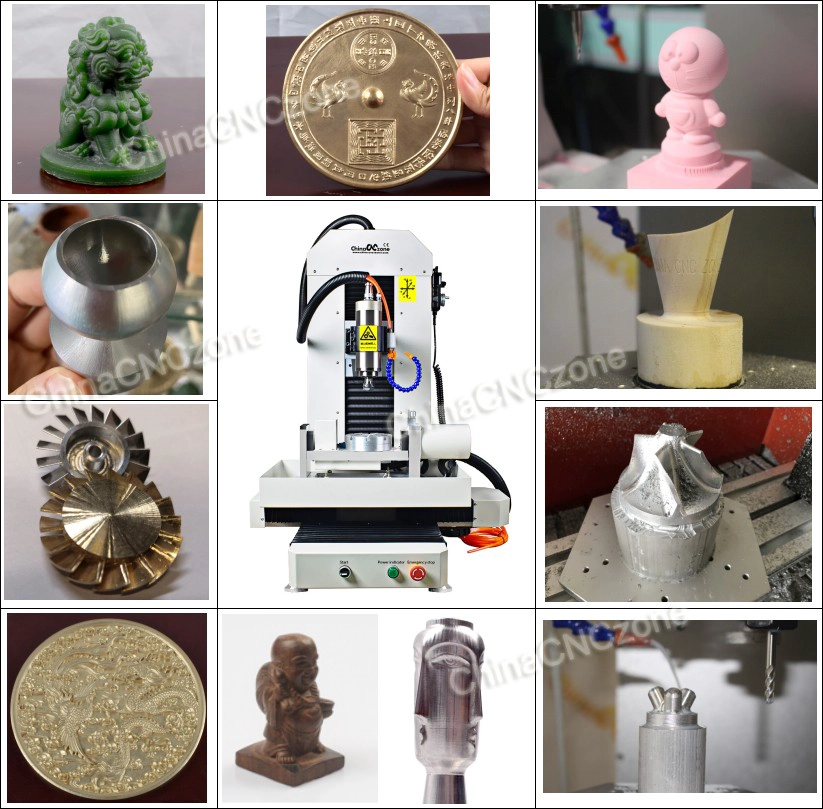

·        Applicable to steel,aluminum, brass, copper, stone, granite etc.


You can buy this machinefrom us without any worry:


·            CEapproved.

·            Videosupport.

·           English manual available.

·            Mach 3software send with the machine as a CD.

·            Canengrave material which hardness below 45.

·            Fromreliable & trustable profesional China CNC Router manufacturer

·

















322

Q&A:

1/ It is said that 5 axis programming is complicated, what can ido if I don’t know how to program 5 axis code?

We have experienced 5 axis technician to help you with designing. We offer paidservice for 5 axis programing


2/ What is the accuracy of this machine?
0.05mm



3/ What is the maximumpiece the machine can process?
155*155*105mm


4/ If i bought this machine, where could I learn the software?

We offer mach3 and NX/UG post processor




5/ What kind of servicedo you provide?

We offer remote control service during China work time





 After-sales service process :

1/ After-sales service contains:
a.    Machine installation and adjustment
b.    Software Settings and using (not include G codeprogramming)
c.    Machine quality problem
d.    the machine using problem

2/ When the machine have problem:
a.    Machine problem pictures or video is asked.
b.    General problem solve way will be supplied in 1~2 days,
       Complex problem solve way will be suppliedin 2~3 days.

3/ General problem solve way: (Machine warranty is 1 year, Cutters don’thave warranty, they are consumables)
a.    Machine operation and installation problem, we will supplyvideo or pictures to show you.
b.    Machine quality problem, machine parts will be resent free
