2022 new steel 5axis 3040 cnc machine with ATC and RTCP system2022 new steel 5axis 3040 cnc machine with ATC and RTCP system2022 new steel 5axis 3040 cnc machine with ATC and RTCP system2022 new steel 5axis 3040 cnc machine with ATC and RTCP system

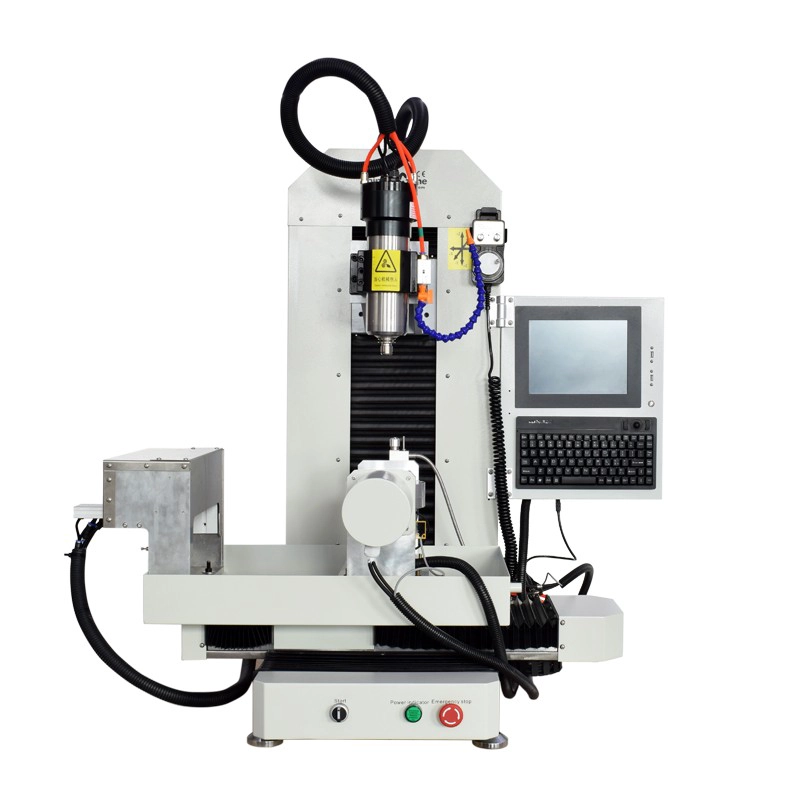

2022 new steel 5axis 3040 cnc machine with ATC and RTCP system

  • Manufacturing Plant, Machinery Repair Shops, Home Use, Printing Shops, Construction works , Energy & Mining, Advertising Company
  • 1. XYZ all linear guide, high precision work on metal.
  • 2. Steel machine frame, more stable, Stronger rigidity.

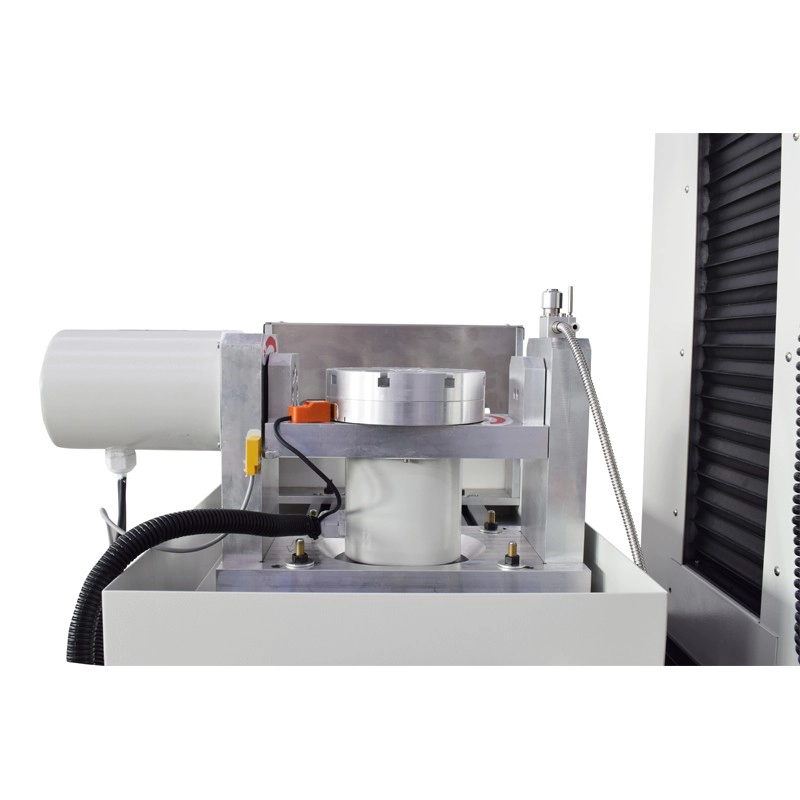

  • 3. B,C axis use Harmonic reducer, High processing progress.
  • 4. Higher precision work on aluminum, Cooper, stainless steel(accuracy≤0.05mm).
  • 5. Machine frame fully enclosed structure design and was helpful to keep the accuracy of screw.
  • 6. XYZ axis SFU2005 Ball srew.
  • 7. Photoelectric limit switches added.
  • 8. Closed-loop motors and servo motors optional.
  • 9. ATC ( auto tool changer) optional.
  • Range of Spindle Speed(r.p.m):1 - 24000
  • Table Travel (X) (mm):300
  • Table Travel (Y) (mm):400
  • Table Travel (Z) (mm):400
  • Repeatability (X/Y/Z) (mm):0.02-0.05
  • Positioning Accuracy (mm):0.02
  • Condition:New
  • Place of Origin:Guangdong, China
  • Brand Name:ChinaCNCzone
  • Model Number:3040 5 axis DSP steel structure
  • Table Travel (mm):300*400
  • Year:2022
  • Type:Horizontal
  • CNC or Not:CNC
  • Voltage:110V/220V
  • Dimension(L*W*H):820*990*1100mm
  • Certification:CE SGS
  • Weight (KG):285
  • Power (kW):2.2
  • CNC Control System:DSP( other options Mach3 and RTCP)
  • Warranty:2 Years
  • After-sales Service Provided:Online support, Engineers available to service machinery overseas
  • Key Selling Points:High-accuracy

2022 newest DSP controller system steel structure jewel 5 axis cnc engraving machine

FREE TAX!!! to US,EU and RU!!!



1/ We will ship this machine to Moscow by Toanda from China,and transfer to you from Moscow by Russia local shipping company with door todoor shipping way. the machine will be deliveried to your home.

the delivery time is usually 20-40 days. and notax fee by this way!





2/ Germany/ United Kingdom/ France/ Spain/ Italy/ Poland

Austria/ Belgium/ Czech Republic/ Denmark/ Lithuania/ Bulgaria/ Estonia/Greece/ Romania/ Slovenia/ Croatia/ Luxembourg/ Finland/ Ireland/ Portugal/Sweden



All above countrybuyers free tax!!!we will ship by train to Poland, and transfer to your door byEU local shipping.





Higher precision:


·        Heavier steel structure

·        Offline DSP HG709D system

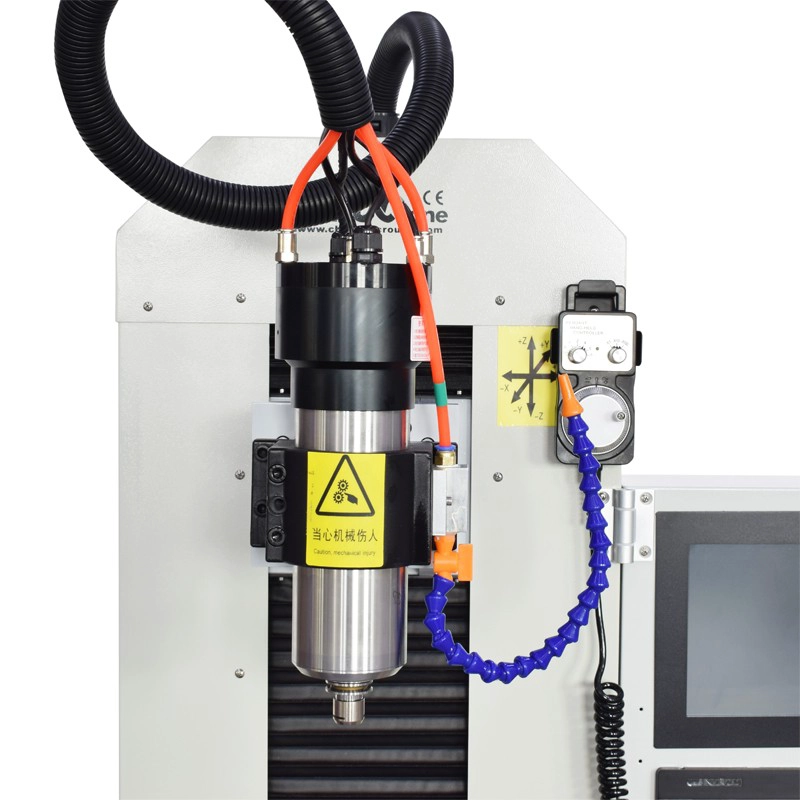

·        2200w water-cooled spindle

·        Ball screw

·        Integrated high-speedmicro computer intelligent control chip.

·        First STEEL STRUCTURECNC3040 5axis in the Market

·        Mach 3 software,supports Win10

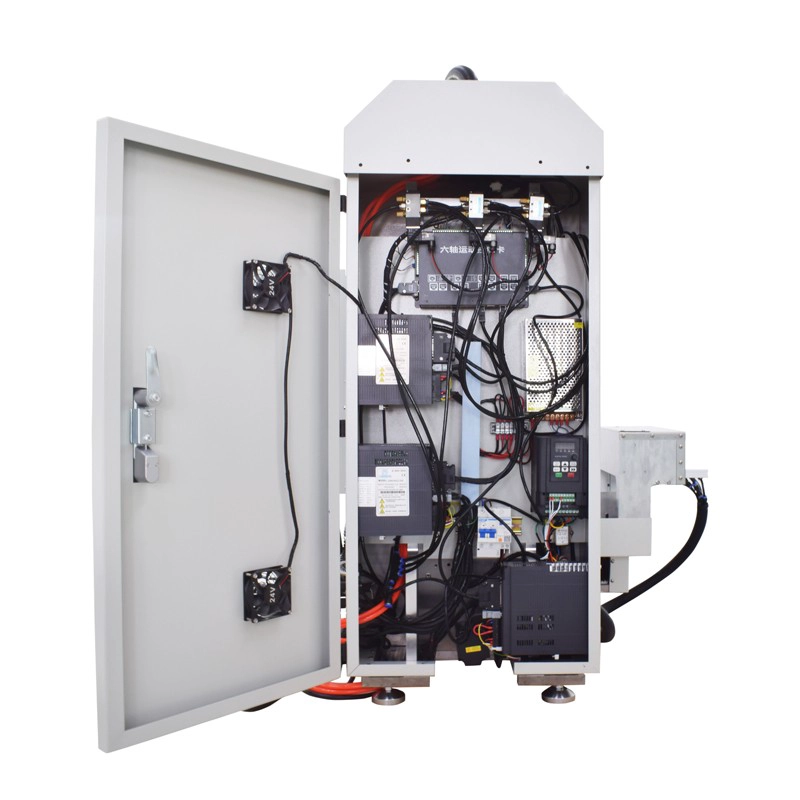

·        Built in frequenceyconverter and without controller box

·        Applicable to steel, aluminum,brass, copper, stone, granite etc.


You can buy this machinefrom us without any worry:


·            CEapproved.

·           Video support.

·           English manual available.

·            Mach3 software send with the machine as a CD.

·            Canengrave material which hardness below 45.

·            Fromreliable & trustable profesional China CNC Router manufacturer


































Q&A:

1/ It is said that 5 axis programming is complicated, what can ido if I don’t know how to program 5 axis code?

We have experienced 5 axis technician to help you with designing. We offer paidservice for 5 axis programing


2/ What is the accuracy of this machine?
0.02-0.05mm



3/ What is the maximumpiece the machine can process?
3axis: 300*400*400mm; 5axis : 200*200*200mm


4/ If i bought this machine, where could I learn the software?

We offer mach3 and NX/UG post processor





5/ What kind of servicedo you provide?

We offer remote control service during China work time





 After-sales service process :

1/ After-sales service contains:
a.    Machine installation and adjustment
b.    Software Settings and using (not include G codeprogramming)
c.    Machine quality problem
d.    the machine using problem

2/ When the machine have problem:
a.    Machine problem pictures or video is asked.
b.    General problem solve way will be supplied in 1~2 days,
       Complex problem solve way will be suppliedin 2~3 days.

3/ General problem solve way: (Machine warranty is 1 year, Cutters don’thave warranty, they are consumables)
a.    Machine operation and installation problem, we will supplyvideo or pictures to show you.
b.    Machine quality problem, machine parts will be resent free
