Steel structure 3040 5 axis usb port Wood engraving and carving Cnc router machine metal For Volcani

  • Автор:by chinacnczone
  • Отпустите на:2019-12-26

On December 26, 2019, our companyconducted a Volcanic relief engraving. The following are more details.

Step 1. Preparation

(1)  Below isour Volcanic relief before engraving:

(2)Below are our engraving bits:

(3)Below is the steel structure 3040 5 axis usb port Wood engraving and carvingcnc router machine metal For Volcanic relief used in our engraving process:

Step 2. Process:

These are our experimental procedures,which mainly include three aspects: Rough Engraving by 40° flat bottom engravingbits,acurracy engraving by 3R 1.5mm ball mill and acurracy engraving by

(1)Rough Engraving by mm 6mm flat bottom engravingbits

Table 1 .Rough Engraving by 6mm flat bottom engravingbits Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

12000RPM

Feed Speed

1000mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

60mins

(2)Rough Engraving by 3R 1.5mm ball mill

This is the first step ofAcurracy Engraving, which is mainly to polish Volcanic relief.

Table 1 .Rough Engraving by 6mm flat bottom engravingbits Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

12000RPM

Feed Speed

1000mm/min

Feed Depth

0.1mm

Precision

0.02mm

Processing Time

90mins

(3)Acurracy Engraving By 0.3mm R1 ball mill

This is the final AcurracyEngraving, the precise production of Volcanic relief is completed throughthis step.

Table 3 . Acurracy EngravingBy 0.3mm R1ball mill Parameter Table

Project

Value

Carving Tool

0.3mm R1 ball mill

Spindle Speed

15000RPM

Feed Speed

600mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

90mins

Step 3. Product comparison before and afterengraving

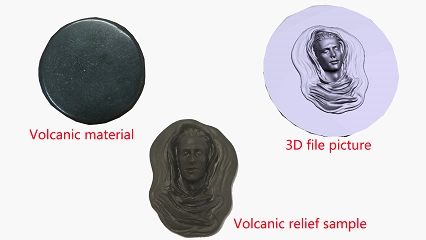

Below,the left picture is theVolcanic relief before engraving, The right picture are the 3D picture file andVolcanic relief after engraving.

Chinacnczone wish youall the best.
