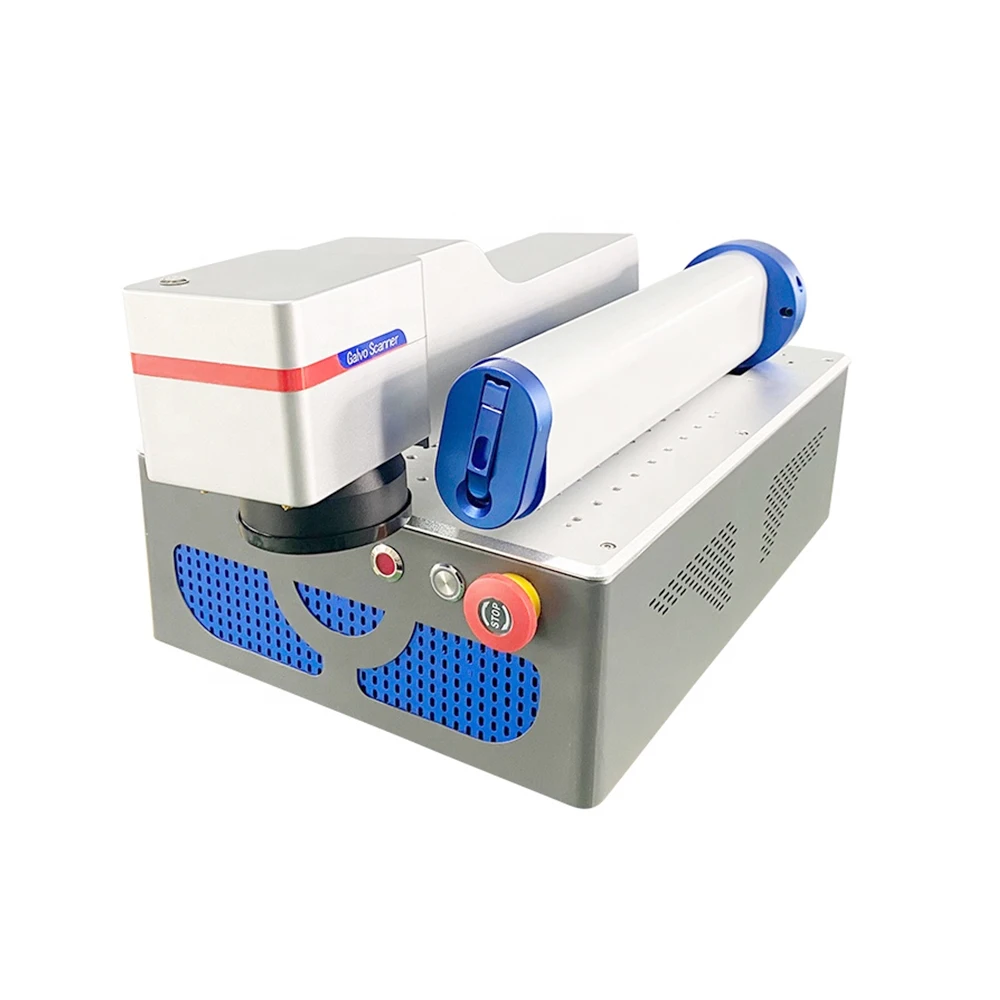

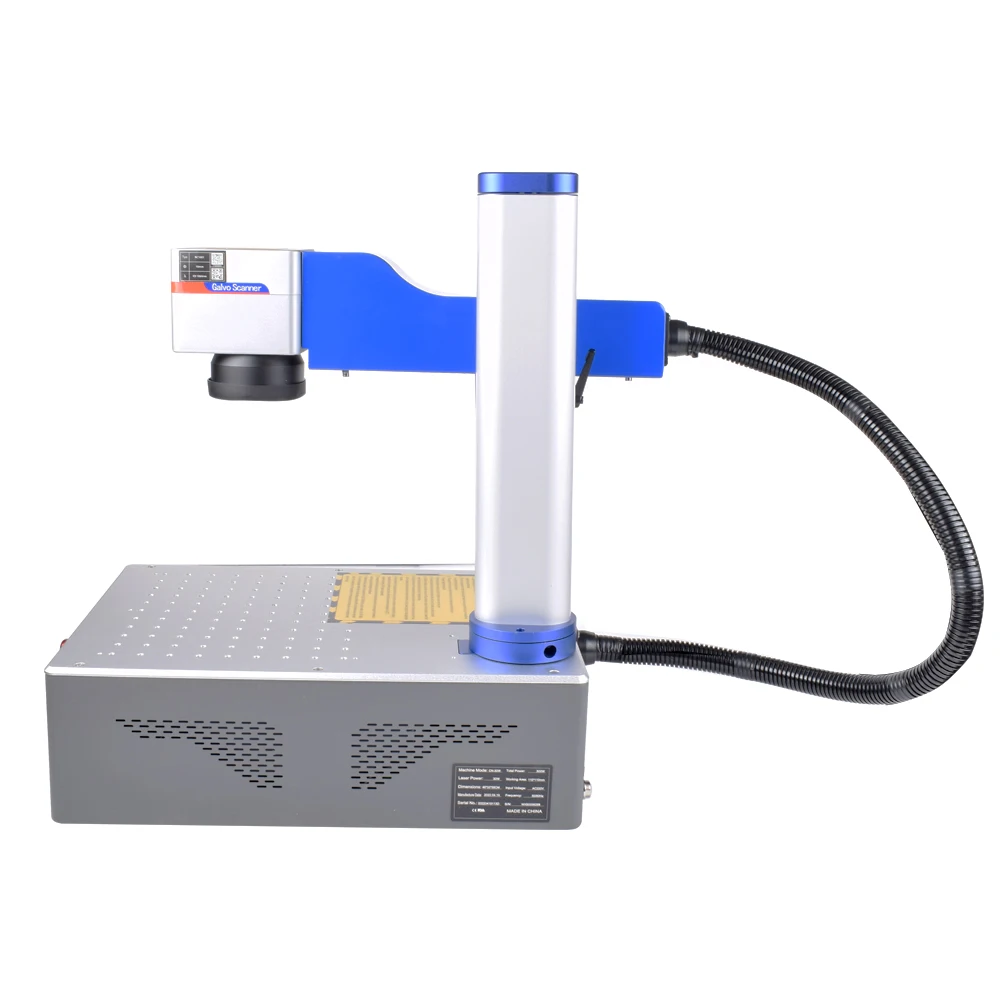

Portable fiber laser Raycus JPT small fiber laser marking machine 20W 30W
- Working Accuracy 0.01mm
- Graphic Format Supported AI, BMP, Dst, DXF, PLT, Other
- Laser Type Fiber Laser
- Cooling Mode Air Cooling
- Other attributes
- Condition New
- Place of Origin China
- Laser Source Brand RAYCUS
- Weight (KG) 48 KG
- Key Selling Points Easy to Operate
- Warranty 1 Year
- Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction works , Other, Advertising Company
- Marking Area 110mm*110mm
- Mode of Operation continuous wave
- Configuration stand-alone
- Feature Air-cooled
- Application Laser Marking
- CNC or Not Yes
- Control Software EzCad2.1
- Brand Name ACHI
- Control System Brand Others
- Machinery Test Report Provided
- Video outgoing-inspection Provided
- Warranty of core components 1 Year
- Core Components Other, Engine, PLC
- Application Laser marking
- Total power 500w
- Fiber laser power 30w
- Marking speed ≤8000mm/s
- Laser wave length 1064nm
- Voltage 220v / 110v
- Power supply frequency 50Hz / 60Hz
- Marking Area 110*110mm/175*175mm
- Package Wooden Case, 48kg
Overview
How to choose the laser source of fiber laser marking machine?
Raycus /MAX /JPT are different laser source brands with the same function,
But Raycus and MAX are good at deep carving, hollow design and cutting, while Jpt is good at carving with delicate touch.
How to choose a lens?(Work area)
The same lens, the higher the power, the deeper the engraving,
Same power, smaller lens, deeper engraving,
The advantage of the larger lens is the larger engraving area, the disadvantage is the weaker light.
The advantage of the smaller lens is that it can engrave deeper depths, the disadvantage is the small engraving area.
For metal cutting, we recommend that you choose a Raycus or MAX laser source and a smaller lens.
