New CNC 6040 Small CNC Machine for Metal Aluminum Copper Brass Steel Engraving from ChinaCNCzone with Mach3 USB Control

New CNC 6040 Small CNC Machine for Metal Aluminum Copper Brass Steel Engraving from ChinaCNCzone with Mach3 USB Control

  • New CNC 6040 Small CNC Machine for Metal Aluminum Copper Brass Steel Engraving from ChinaCNCzone with Mach3 USB Control
  • Effective working travel
  • 400(X)mm*600(Y)mm*100(Z)mm
  • Shape dimension
  • 510*620*570mm
  • Work table dimension
  • 510*825mm
  • Frame materials
  • #45 steel
  • acceptable material thickness
  • ≤100mm

New CNC 6040 Small CNC Machine for Metal Aluminum Copper Brass Steel Engraving from ChinaCNCzone with Mach3 USB Control
Higher precision:
Heavier steel structure
XHC control boad
With auto-checking function
2200w water-cooled spindle
Ball screw
Integrated high-speed micro computer intelligent control chip.
First STEEL STRUCTURE CNC6040 in the Market
Mach 3 software, supports Win10
Built in frequencey converter and without controller box
Applicable to steel, aluminum, brass, copper, stone, granite etc.
You can buy this machine from us without any worry:
  CE approved.
    Video support.
    English manual available.
    Mach 3 software send with the machine as a CD.
    Can engrave material which hardness below 45.
    From reliable & trustable profesional China CNC Router manufacturer
Technical details:

Effective working travel

400(X)mm*600(Y)mm*100(Z)mm

Shape dimension

510*620*570mm

Work table dimension

510*825mm

Frame materials

#45 steel

acceptable material thickness

≤100mm

Driving units

X/Y/Z axis

SFUR1605-DFC7-P0 ball screw

Sliding units

X axis

Dia.20mm chrome plate shafts

Y axis

Dia.30mm chrome plate shafts

Z axis

Dia.16mm chrome plate shafts

Stepping motor type

57 two-phase 2.5A  55N.cm

Spindle motor

Brand new 2200W water cooling spindle, 24000RPM

Principal axis collet

ER20  1-13mm,

Repeat accuracy

0.05mm

Spindle precision

radial beat acuities 0.03 mm

Software environment

MACH3 Support windows10

Maximum speed

0-4000mm/min

Control unit

XHC mainboard

Computer connection

USB port

Command code

G code, tap, NC, ncc etc.

Protection

Emergency stop button

Operating Voltage

AC220V/110V

Warranty

1 Year for the whole machine, 3 months for the spindle

Package size

One wooden box, 110*80*85cm

Net weight

110KG

Samples made by this new CNC 6040 small cnc machine for metal

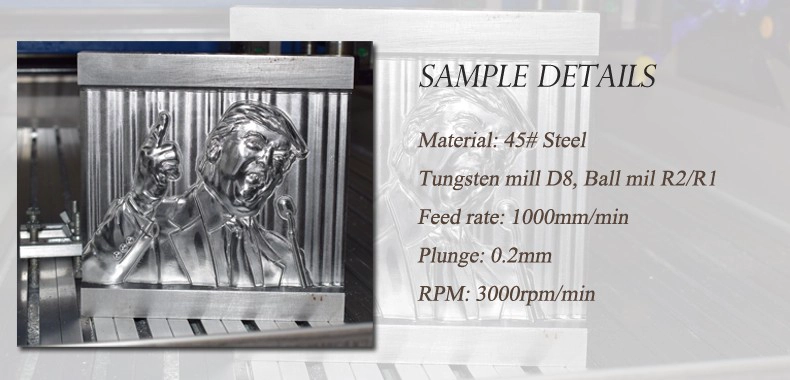

Small cnc machine for metal 4

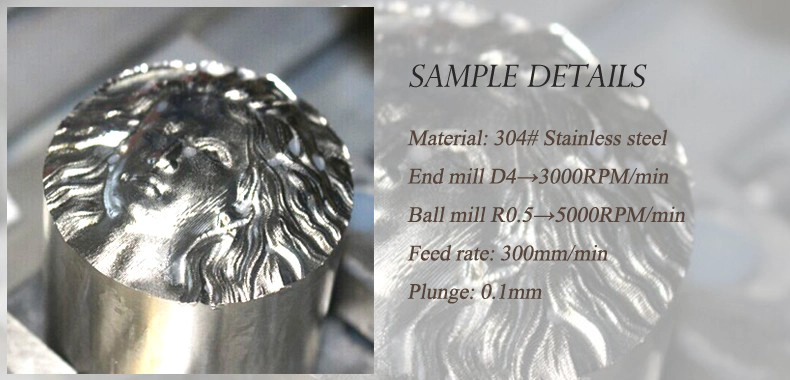

CNC for steel engraving sample

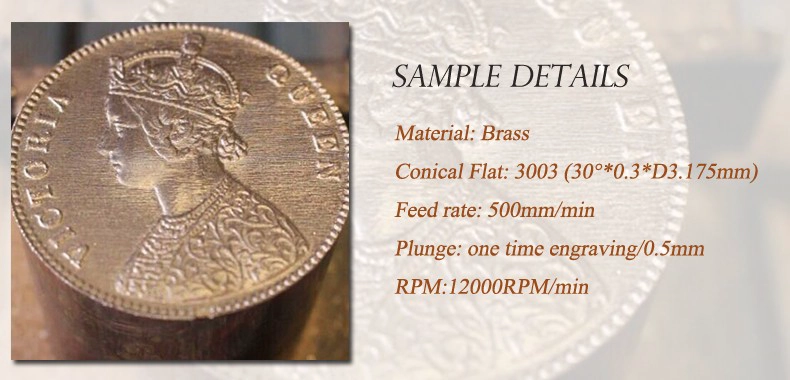

CNC for copper engraving sample

More pictures for this small cnc machine for metal

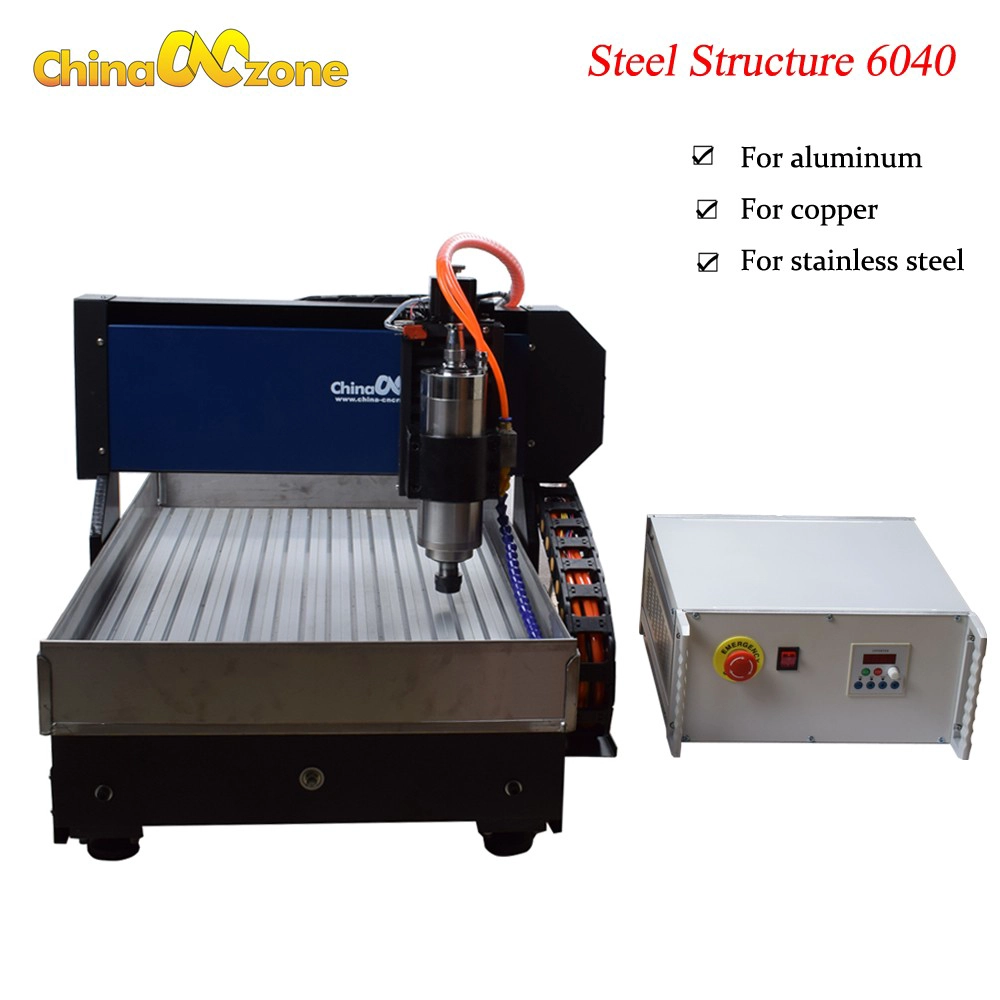

small metal CNC machine

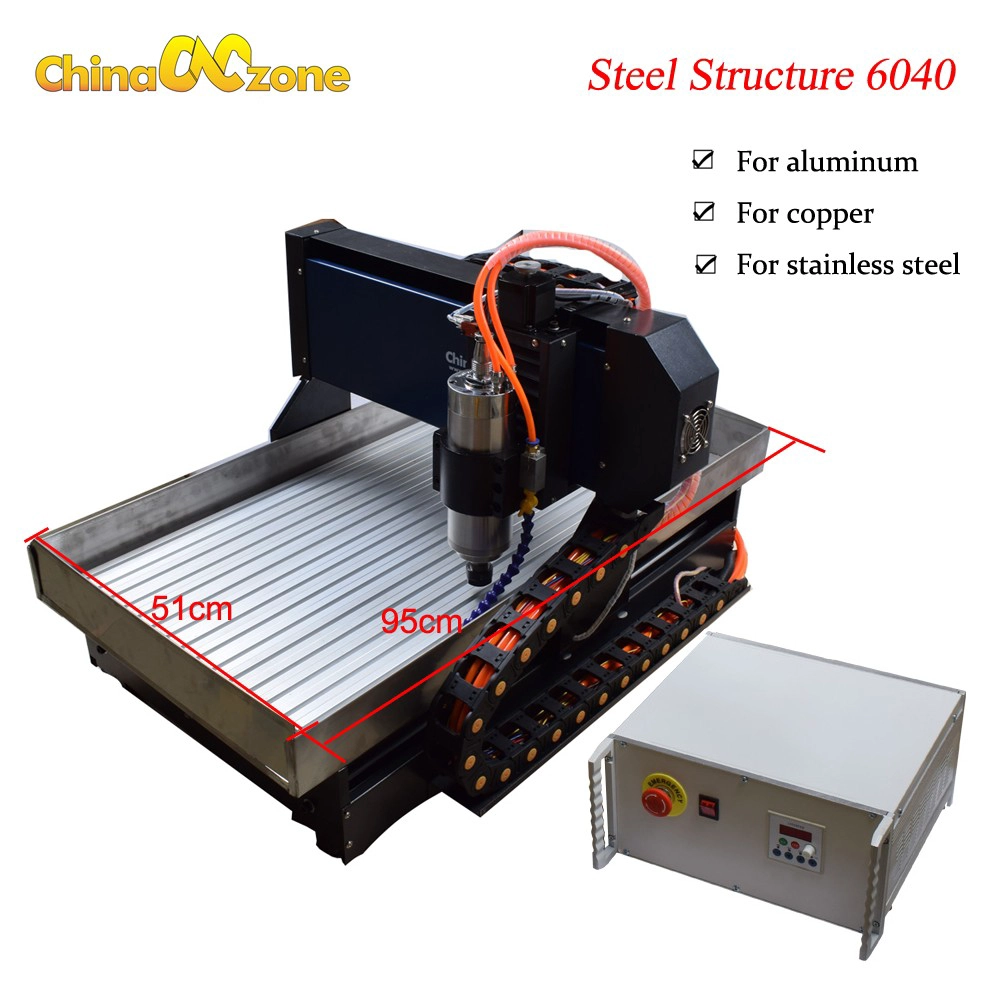

small CNC machine for metal

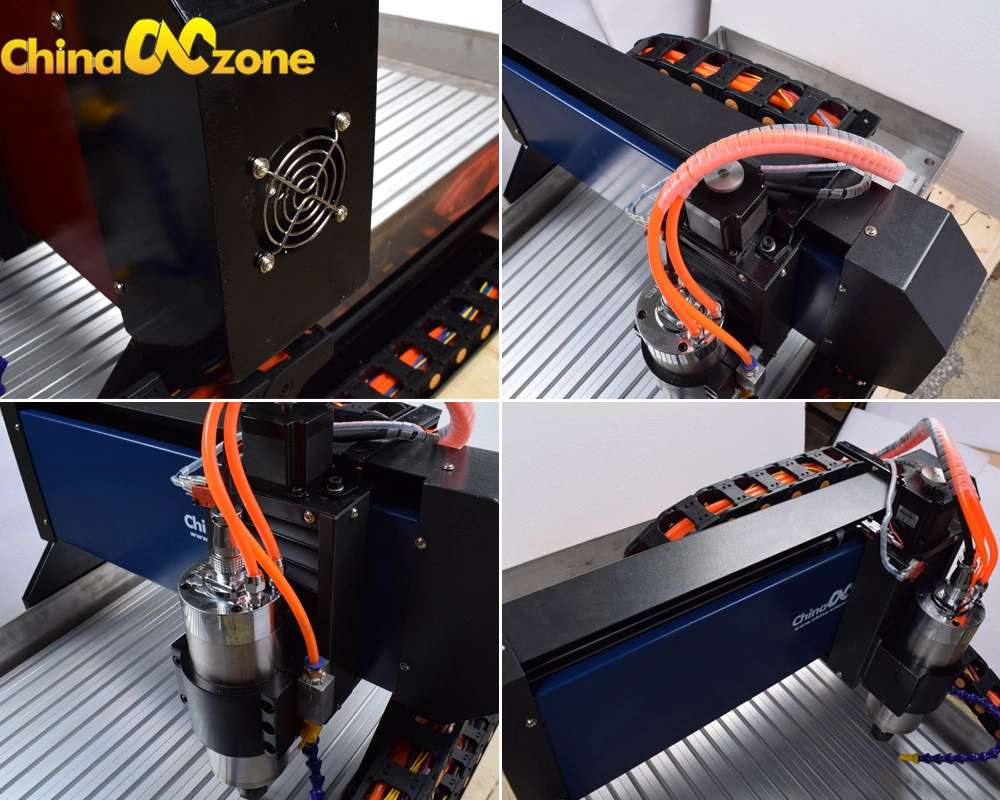

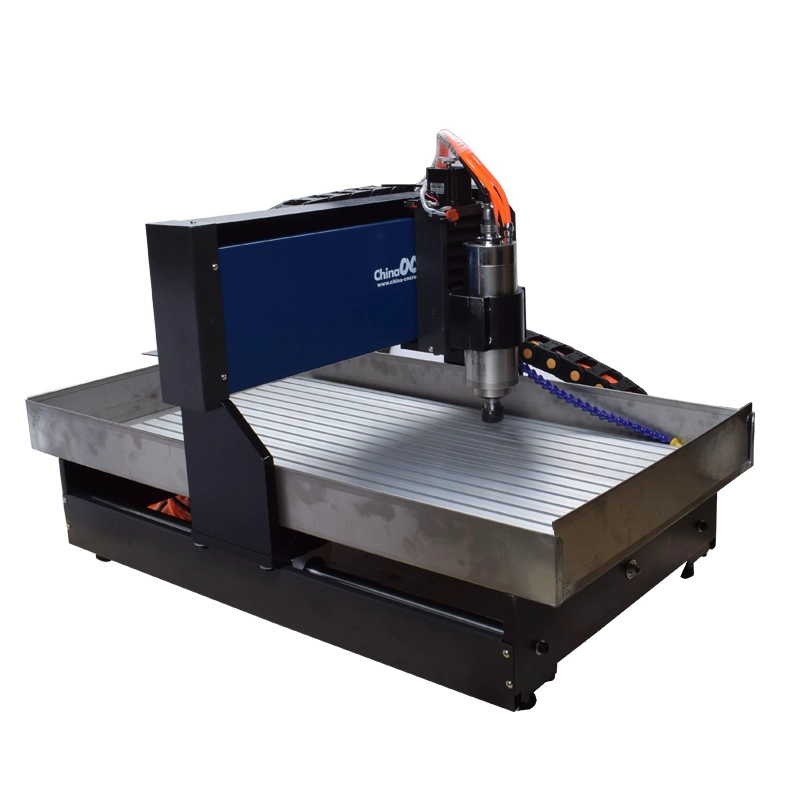

Metal CNC machine

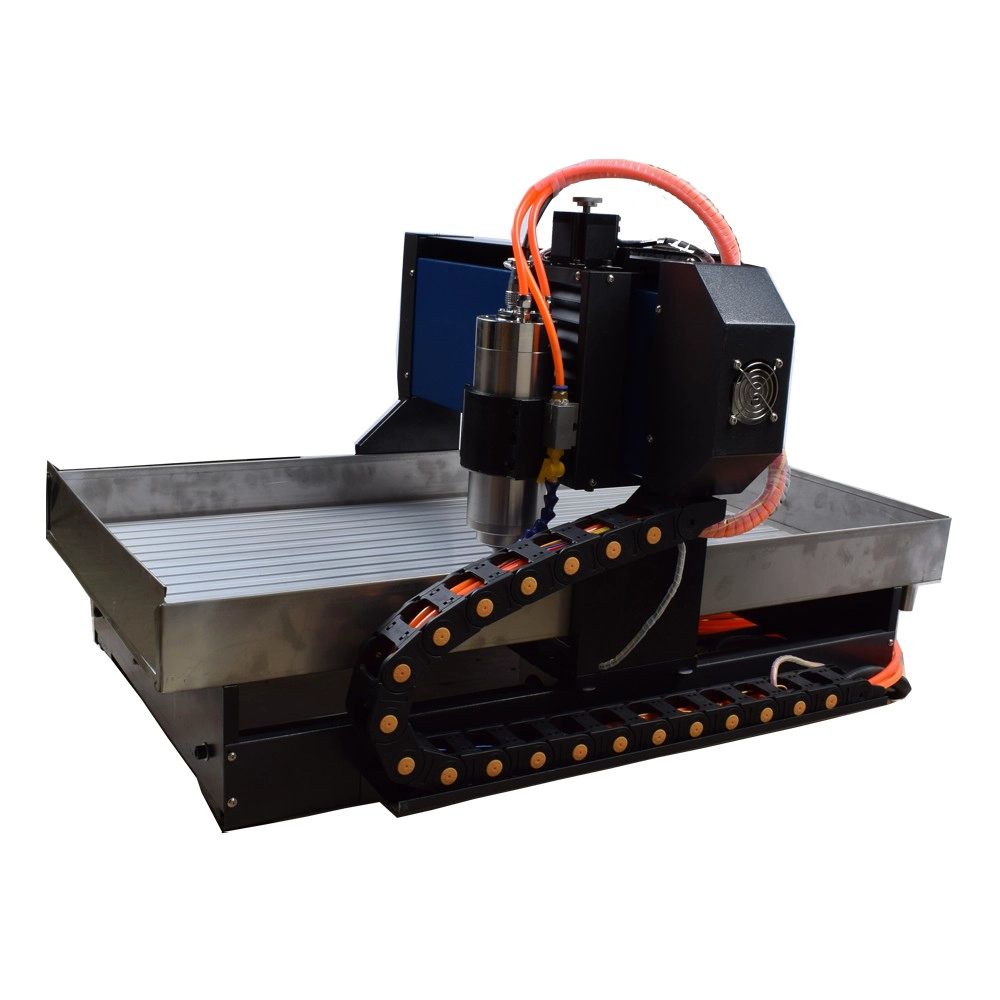

Small metal CNC
Metal CNC machine

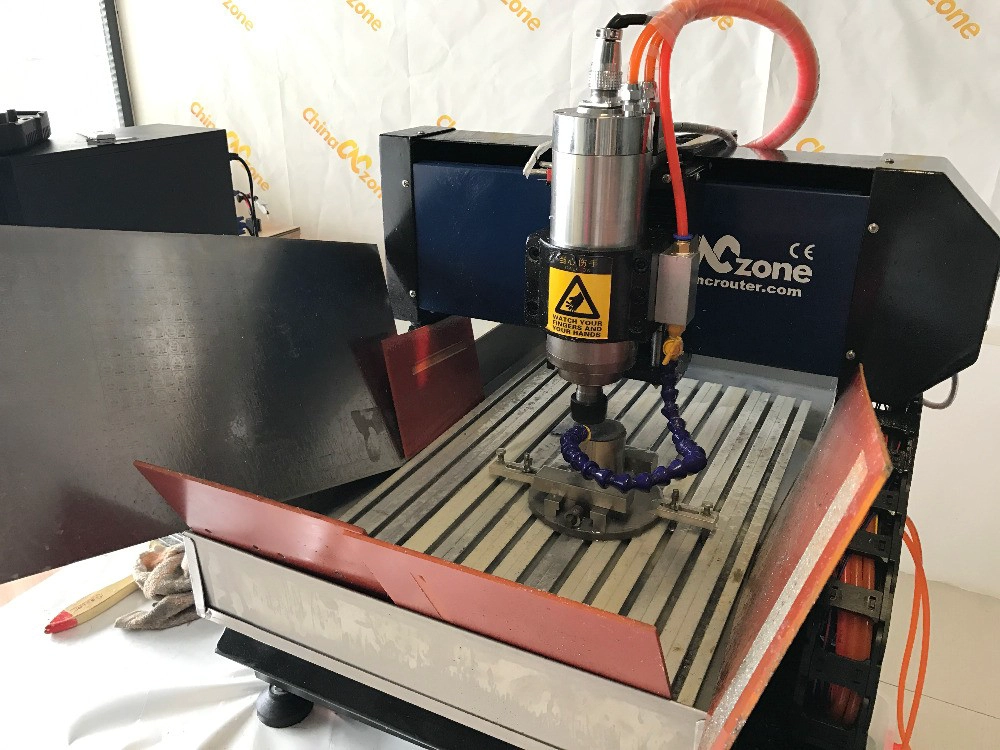

Metal CNC engraver

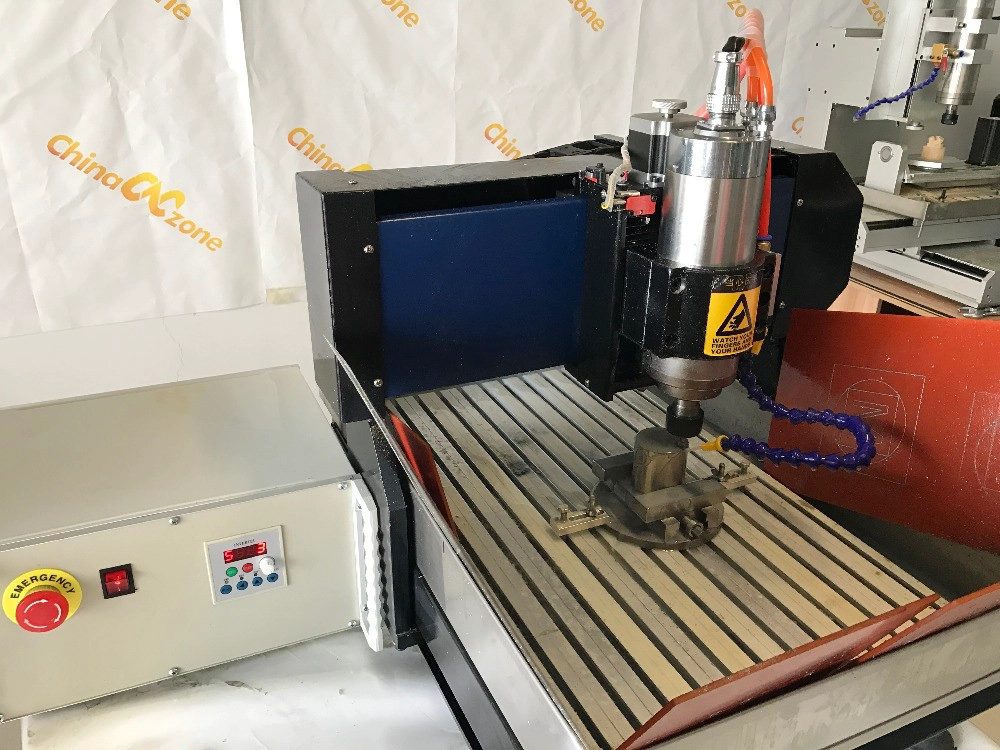

Metal CNC router
Packing list for this CNC 6040 Small CNC Machine
1 water pump*
2 water pump fixed feet * 8
3 Water pump inlet * 2
4 clamp tool * 6
5 Power Cable * 1
6 USB connect cable * 1
7 Spanner * 2
8 water sink outlet pipe * 1
9 Engraving bits * 5
4F*6*6*19*63mm White steel bit * 1
4F*6*6*15*50mm Tungsten steel milling bit * 1
3.175*20°*0.1 * 1
3.175*20°*0.2 * 1
3.175*20°*0.3 * 1

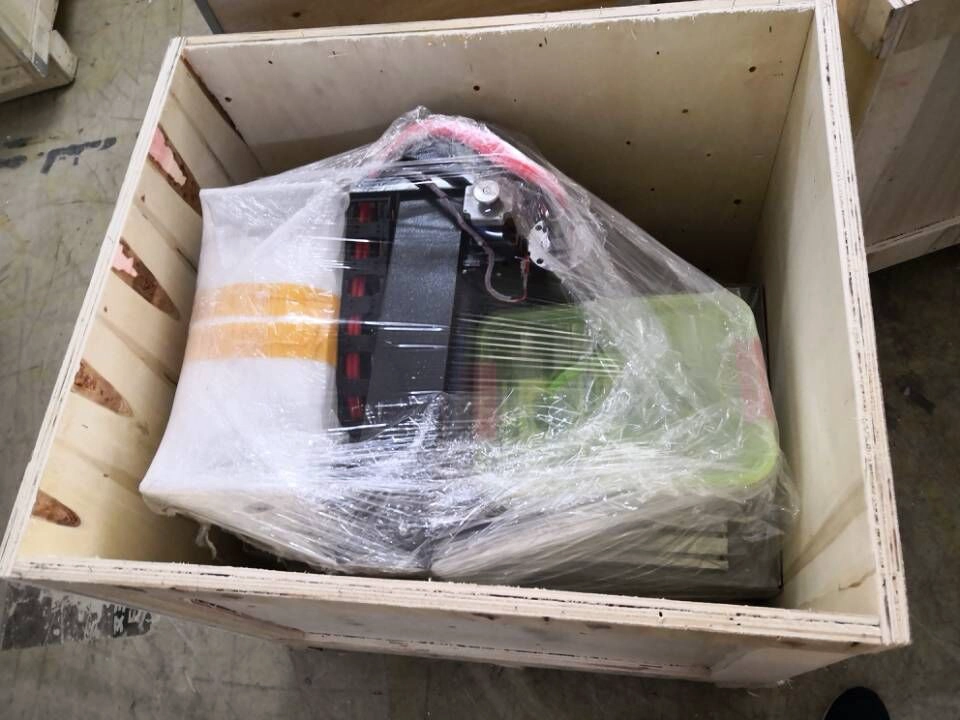

Small CNC machine for metal 2

Expo cnc
CNC factory
