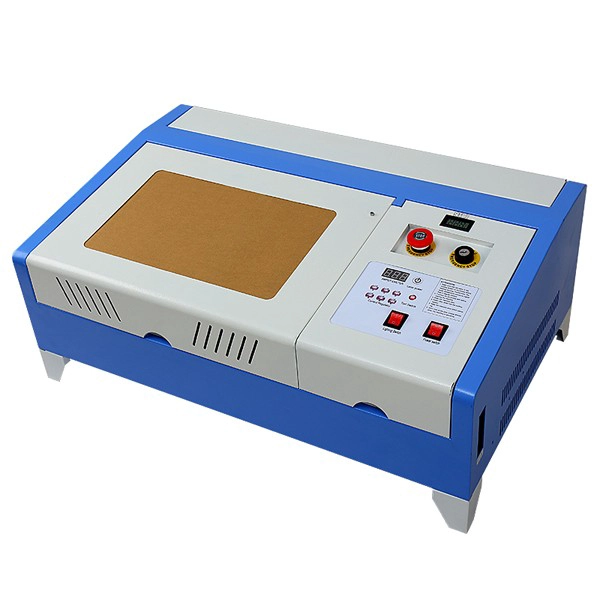

ChinaCNCzone JK 3020 40W Chinese Mini Desktop CO2 DIY Laser Cutter for Sale
- Laser power 40W
- Laser type CO2
- Power supply AC 220V/110V
- Working area 300*200mm
- Tube Trigger Volt 20KV
- Tube Operating Volt 15KV
- Current 0~22mA
- Laser Tube (life hours): 1000-1300 Hours
- Maximum Item Size to Engrave 260mm*220mm*70mm
- Resolution ratio 1000dpi
JK 3020 40W Chinese Mini Desktop CO2 DIY Laser Cutter for Sale, it is our hottest model of CO2 laser engraving machine.
Outstanding features as below
1. Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
2. USB Interface, U-Flash Disk Supported, Can work without a PC.
3. Air Assist, Remove heat and combustible gases from the cutting surface.
4. Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
5. Water Cooling System
6. Laser position function
7. 40W laser tube
8. Built the heat dispersed fan to reduce all electronic component's temperature
9. MoshiDraw Software
11. Support multiple graphic formats including BMP/JPG/JPEG/WMF/EMF.
12. Latest version with lift system/up and down function
| JK 3020 40W Mini Desktop CO2 DIY Laser Cutter Parameters | |
| Interface to Computer | USB Port |
| FDA Compliant | Yes |
| Laser Type | CO2 Gas |
| Tube Trigger Volt | 20KV |
| Tube Operating Volt | 15KV |
| Current | 0~22mA |
| Engraving Area | 12x8 inch (300x200mm) |
| Maximum Item Size to Engrave | 10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm) |
| Laser Tube (life hours) | 1000-1300 Hours |
| Laser Power | 40W |
| Engraving Speed | 0-13.8 in./s (0-350mm/s) |
| Cutting Speed | 0-1.38 in./s (0-35mm/s) |
| Minimum Shaping Character | 0.04 X0.04in (1mm X 1mm) |
| Resolution Ratio | 0.001 in (0.026mm) / (1000dpi) |
| Power Supply | 110V/60Hz for USA, Canada, Japan etc |
| 220V~250V for other countries all over the world. | |
| Resetting Positioning | ≤0.0004 in (0.01mm) |
| Motor Type | Stepper Motor |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF) | |
| System environment | Windows XP / Win 7 / Win 8 |
| Software Supported | MoshiDRAW software (both NewlyDraw and NewSeal function) |
| Power Consumption | ≤250W |
| Operating Temperature | 32-113F (0-45C) |
| Graphic Format Supported | BMP/JPG/JPEG/WMF/EMF/PLT |
| Water Cooling | Water Pump include |
| Recommended Spare Parts/Consumables | Laser Tube, Focal lens, Reflection lens |
| Product Dimensions | 31.4 X 19.6 X 9.8in.(800x500x250mm) |

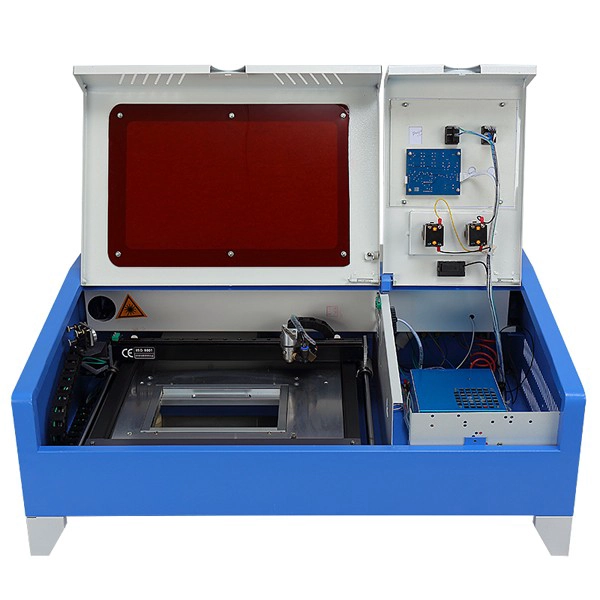

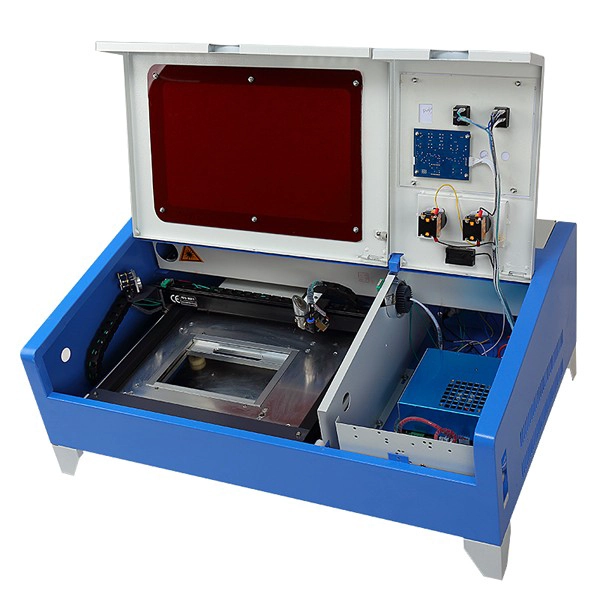

Compared with older versions, our SL-320 Chinese Mini Desktop CO2 DIY Laser Cutter has below advantages:
1. New Power Supply
Built-in cooling fan in the power supply of new version, it extends power supply’s life to 150%.
2. New Main Board
New main broad solved the static burning problem in old one.
As for speed, now max engraving speed reach 600mm/s, old one just 400mm/s.
3. New Laser Tube
The using life of new laser tube is 1000-1500 hours, old one just is 800-1000 hours.
Remove sponge before use
4. New Controlling Panel
A. Water temperature sensor added, it monitors water temperature real-time.
( PS: When water temperature beyond 50℃, just need replace half water
in tank. Laser tube may broke if replace all circulating water into cold
water one time.)
B. Emergency stop switch added, machine’s security increase.
C. Power supply key added, avoiding others use machine in wrong way.
D. LED light on-off key added, energy-efficient .
E. Power on-off key added.
5. New Guide Rail
X axis has upgraded to square rail from aluminum rail.
Y axis has upgraded to round rail.
Its stability increase.
6. New LED Light
The light has upgrade fluorescent lamp to LED light, longer using life.
7. New Limited Switch Added
New version machine use 2 high quality mechanical limit switches in X/Y axis,
and 1 limited switch for open-close protection function.
machine’s security increase.
8. Platform Height Adjustable
Platform height adjust by manual, max height is 5cm.
9. 3 Reflectors and 1 Focus Lens
High quality reflector and focus lens ensure the laser source 100% conserve to the laser head.
10. Air Assist and Red dot Point
Air assist for blowing flame retardant, 18W air pump, flow can be 38L/Min.
Red-light point for help choosing the starting point quickly.
11. Ground Lead Wire and Air Exhaust Fan
Please connect ground lead to ensure machine work in safe condition.
Air exhaust fan can help air circulation and exhaust gas and odor.
This JK 3020 40W Chinese Mini Desktop CO2 DIY Laser Cutter can be widely used
-Advertising&Design staff
-Craft Maker
-Woodwork fans
-Model fans
-Leather Tailor’s
-NOT Ready for Nowise(beginner)
