steel structure small cnc wood router metal milling and engraving machine for steel parts

  • Author:chinacnczone
  • Release on :2020-04-30
steel structure small cnc wood router metal milling and engraving machine for steel parts

by chinacnczone

On April 30, 2020, our company conducted a steel parts engraving. The following are more details.

Step 1. Preparation

(1) Below is our wood material before engraving:

(2) Below are our engraving bits:

(3) Below is the steel structure small cnc wood router metal milling and engraving machine for steel parts used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 6mm 4 fluts end mill ,accuracy engraving by 6mm flat bottom engraving bits

(1)Rough Engraving by 6mm 4 fluts end mill

Table 1 .Rough Engraving by 6mm 4 fluts end mill Parameter Table

Project

Value

Carving Tool

6mm 4 fluts end mill

Spindle Speed

11000RPM

Feed Speed

1000mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

30mins

(2)Accuracy Engraving by 6mm flat bottom engraving bits

This is the all step of accuracy Engraving

Table 2 .Accuracy Engraving by 6mm flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

400mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

60mins

Step 3. Product comparison before and after engraving

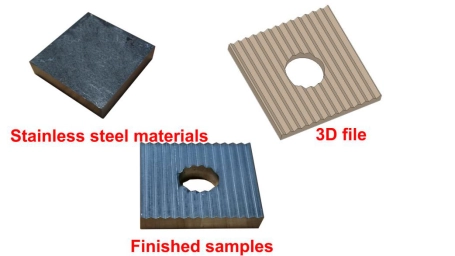

Below,The two figures above are the stainless steel material and 3d file picture, The following picture is steel parts sample after engraving.

Chinacnczone wish you all the best.

Youtube link:https://www.youtube.com/watch?v=ac1jNyAuH0c
