About the proof test of the new version of the steel structure 3040 3/4 cnc metal cutting machine

  • Author:chinacnczone
  • Release on :2020-05-26

In this experiment, keep milling the face of 110MM * 55MM, and then compare the completion time of using the stepping machine and the servo machine under different cutting depths and different materials.

Test material

Cutter

Setting parameters

57 Stepper motor steel structure 3040 machine consumes time [minutes / second]

400W servo motor steel structure 3040 machine consumes time 【minute / second】

Feed Depth

Spindle speed(r.p.m)

Feed speed(mm/min)

aluminum

2 fluts end mill with 6mm shank diameter

0.5MM

10000

1500

2:42

1:06

1MM

9000

800

4:45

2:00

1.5MM

8000

500

7:38

4:00

copper

4 fluts end mill with 6mm shank diameter

0.5MM

10000

1000

2:32

1:30

1MM

9000

800

3:32

2:06

1.5MM

8000

500

6:11

3:26

45#steel

4 fluts end mill with 6mm shank diameter

0.3MM

9000

900

2:00

0:50

0.5MM

9000

800

3:10

1:15

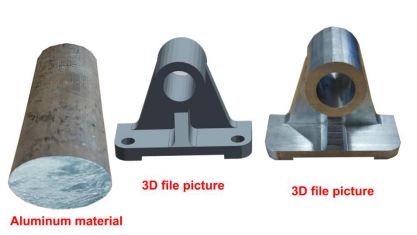

First, we tested the aluminum metal, using a tool: 2 fluts end mill with 6mm shank diamete, set three different feed depth, Spindle speed, Feed speed, and then compared the time consumption of 57 Stepper motor and 400W servo motor. It can be seen from the above table that under different parameter settings, the time taken by 400W servo motor is about 40% of 57 Stepper motor.

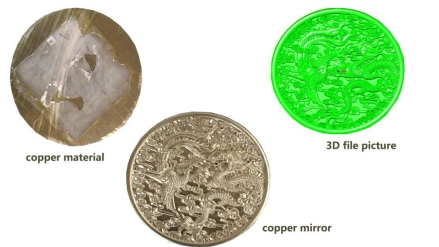

In the second comparison, we used a copper for comparison. The tools used are: 4 fluts end mill with 6mm shank diameter. The parameter setting is the same as the above aluminum engraving. The time of 400W servo motor is about 60% of 57 Stepper motor

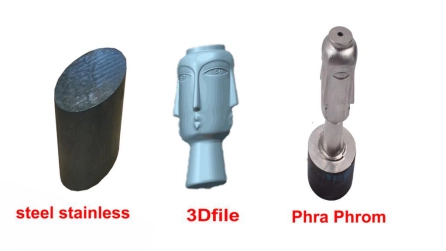

For the third comparison, we used 45 # steel material for comparison. Because this material has a higher hardness, we set Feed Depth to 0.3mm and 0.5mm, Spindle speed to 9000RPM, and Feed speed to 900mm / min and 800mm / min, 400W servo motor takes about 40% of 57 Stepper motor.

According to the above three comparative tests, we can see that in the three materials of aluminum, copper and 45 # steel, our 400W servo motor takes only about 40%, 60%, 40% of 57 Stepper motor.

Chinacnczone wish you all the best.
