steel structure small cnc 3d carving wood model milling wood planer machine

  • Autor:chinacnczone
  • Suelte el:2020-05-15

On May 15, 2020, our company conducted a wood model engraving. The following are more details.

Step 1. Preparation

(1) Below is our steel stainless material before engraving:

(2) Below is our engraving bits:

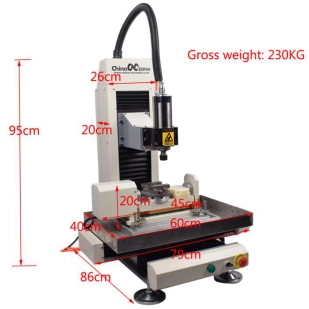

(3) Below is the steel structure small cnc 3d carving wood model milling wood planer machine used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include two aspects: rough engraving by 6mm R1 ball end mill ,accuracy engraving by 6mm R1 ball end mill

(1)Rough Engraving by 6mm R1 ball end mill

Table 1 .Rough Engraving by 6mm R1 ball end mill Parameter Table

Project

Value

Carving Tool

6mm R1 ball end mill

Spindle Speed

11000RPM

Feed Speed

1000mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

10mins

(2)Accuracy Engraving by 6mm R1 ball end mill

This is the step of accuracy Engraving

Table 2 .Accuracy Engraving by 6mm R1 ball end mill Parameter Table

Project

Value

Carving Tool

6mm R1 ball end mill

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

20mins

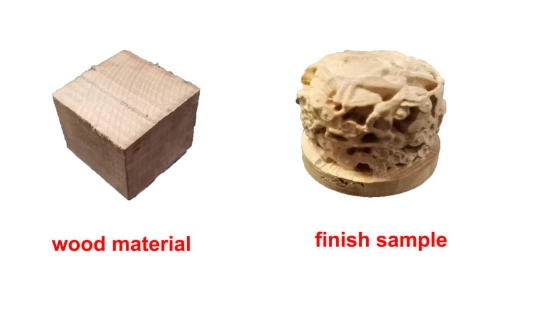

Step 3. Product comparison before and after engraving

Below,The two figures above are the wood material and wood model, The following picture is wood model sample after engraving.

Chinacnczone wish you all the best.
