cnc engraving and 3d benchtop milling machine for lighter shell

  • Autor:chinacnczone
  • Suelte el:2020-07-07

On July 7, 2020, our company conducted a stainless steel lighter shell engraving by 3 axis cnc milling machine. The following are more details.

Step 1. Preparation

(1) Below is our steel stainless material before engraving:

(2)Below is our engraving bits:

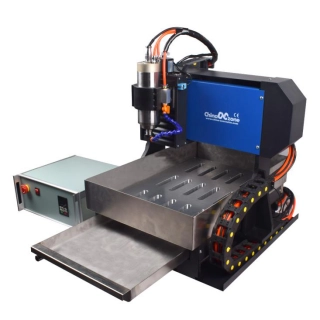

(3)Below is the cnc engraving and 3d benchtop milling machine for lighter shell used in our engraving process(Click on the picture to see more details of the machine):


Step 2. Process:

These are our experimental procedures by 4 axis cnc, which mainly include five aspects: rough engraving by 6mm 4 flutes end mill ,accuracy engraving by 6mm 4 flutes end mill ,4 mm 4 flutes end mill,3mm 4 flutes end mill  and 1mm 4 flutes end mill

(1)Rough Engraving by 4 axis cnc with 6mm 4 flutes end mill

Table 1 .Rough Engraving by 6mm 4 flutes end mill Parameter Table

Project

Value

Carving Tool

6mm 4 flutes end mill

Spindle Speed

6000RPM

Feed Speed

500mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

180mins

(2)Accuracy Engraving by 3 axis cnc with 6mm 4 flutes end mill ,4 mm 4 flutes end mill,3mm 4 flutes end mill  and 1mm 4 flutes end mill.

This is the first step of accuracy Engraving

Table 2 .Accuracy Engraving by 3 axis cnc with 3mm R1 ball end mill Parameter Table

Project

Value

Carving Tool

6mm 4 flutes end mill

Spindle Speed

6000RPM

Feed Speed

300mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

120mins

This is the second step of accuracy Engraving

Table 3 .Accuracy Engraving by 3 axis cnc with 4mm 4 flutes end mill Parameter Table

Project

Value

Carving Tool

4mm 4 flutes end mill

Spindle Speed

8000RPM

Feed Speed

400mm/min

Feed Depth

0.04mm

Precision

0.02mm

Processing Time

120mins

This is the third step of accuracy Engraving

Table 4 .Accuracy Engraving by 3 axis cnc with 3mm 4 flutes end mill Parameter Table

Project

Value

Carving Tool

3mm 4 flutes end mill

Spindle Speed

8000RPM

Feed Speed

400mm/min

Feed Depth

0.04mm

Precision

0.02mm

Processing Time

90mins

This is the finally step of accuracy Engraving

Table 5 .Accuracy Engraving by 3 axis cnc with 1mm 4 flutes end mill Parameter Table

Project

Value

Carving Tool

3mm 4 flutes end mill

Spindle Speed

10000RPM

Feed Speed

200mm/min

Feed Depth

0.02mm

Precision

0.02mm

Processing Time

60mins

Step 3. Product comparison before and after engraving

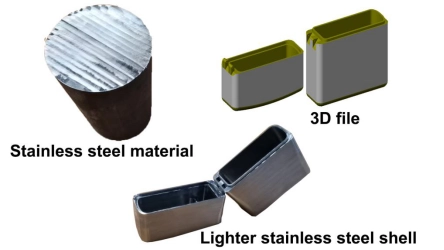

Below,The two figures above are the stainless steel material and 3d picture file, The following picture is stainless steel lighter shell after engraving.

Chinacnczone wish you all the best.
