Stone cnc router machine for jade with Steel Structure and Linear Guide carved Dragon And Phoenix

  • Autor:chinacnczone
  • Solte em:2019-11-08
On November 8,2019, our company conducted a jade engraving experiment. The following are moredetails.

Step 1. Preparation

(1) Belowis our jade Material before engraving:

(2) Belowis our engraving bit(P45-0.2 Full Width 45°、0.2Tip):

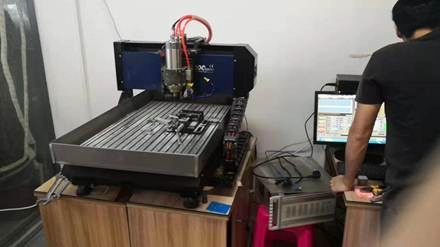

(3) Belowis the stone machine used in our engraving process:

Step 2. Process:

These are our experimentalprocedures, which mainly include two aspects: rough engraving and acurracyengraving

(1)Rough Engraving

Our engineers use fixtures tofix the jade material and then rough it.

Table 1 .Rough EngravingParameter Table

Project

Value

Carving Tool

PCD P45-0.2(Full width 45°、0.2Tip)

Spindle Speed

20000RPM

Feed Speed

600mm/min

Feed Depth

1.5mm

Precision

0.03mm

Processing Time

30mins(0.5h)

(2)Acurracy Engraving

When the rough engraving iscompleted, let's finish the acurracy engraving.

Table 2. Acurracy EngravingParameter Table

Project

Value

Carving Tool

PCD P45-0.2(Full width 45°、0.2Tip)

Spindle Speed

20000RPM

Feed Speed

600mm/min

Feed Depth

1.5mm

Precision

0.03mm

Processing Time

180mins(3h)

Step 3. Product comparison before andafter engraving

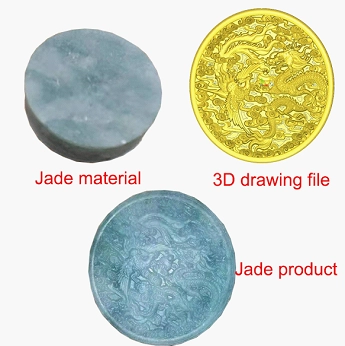

Below,the left picture is thejade material before engraving, The right picture is the dragon and phoenixafter engraving.

Step 4.Process Aspects That Can BeImproved

If you want better precision,you can improve machining accuracy by changing machining parameters andextending machining time.

Chinacnczone wish youall the best.
