Raycus 1500W/2000W/3000W fiber Laser welding machine Handheld laser cleaning machine
- Model
- Fiber laser welding machine
- Laser wavelength
- 1070nm
- Laser power
- 1500W
- Operating mode
- Continuous/pulse
- Length of fiber-optical
- 10m(standard)
- Interface of fiber-optical
- QBH
- Module life
- 100000hrs
- Power supply
- 220V / 380V
- Cooling method
- Water Cooling
- Laser Energy Stability
- <2%
- Air humidity
- 10-90%
- Recommended welding thickness
- 1500W Stainless steel, carbon steel 0-2mm
- Red light positioning
- Support
- Recommended welding thickness
- 1500W
- Stainless steel, carbon steel 0-3mm, Galvanized sheet, aluminum 0-2mm
Description
Raycus 1500W/2000W/3000W fiber Laser welding machine Handheld laser cleaning machine
|
Model |
Fiber laser welding machine |
|
Laser wavelength |
1070nm |
|
Laser power |
1500W/2000W/3000W |
|
Operating mode |
Continuous/pulse |
|
Length of fiber-optical |
10m(standard) |
|
Interface of fiber-optical |
QBH |
|
Module life |
100000hrs |
|
Power supply |
220V / 380V |
|
Cooling method |
Water Cooling |
|
Laser Energy Stability |
<2% |
|
Air humidity |
10-90% |
|
Recommended welding thickness |
1500W Stainless steel, carbon steel 0-2mm |
|
Red light positioning |
Support |
|
|
|
|
Recommended welding thickness |
|
|
|
|
|
1500W |
Stainless steel, carbon steel 0-3mm, Galvanized sheet, aluminum 0-2mm |
|
|
|
Product description for Mini Fiber laser cleaning machine.
How To Use?
The operation is simple, turn on the power supply, turn on the equipment, can carry on without the chemical reagent, the
medium,the water-free cleaning, can adjust the focus manually, adheres the surface cleaning, the cleaning surface cleanliness is high.

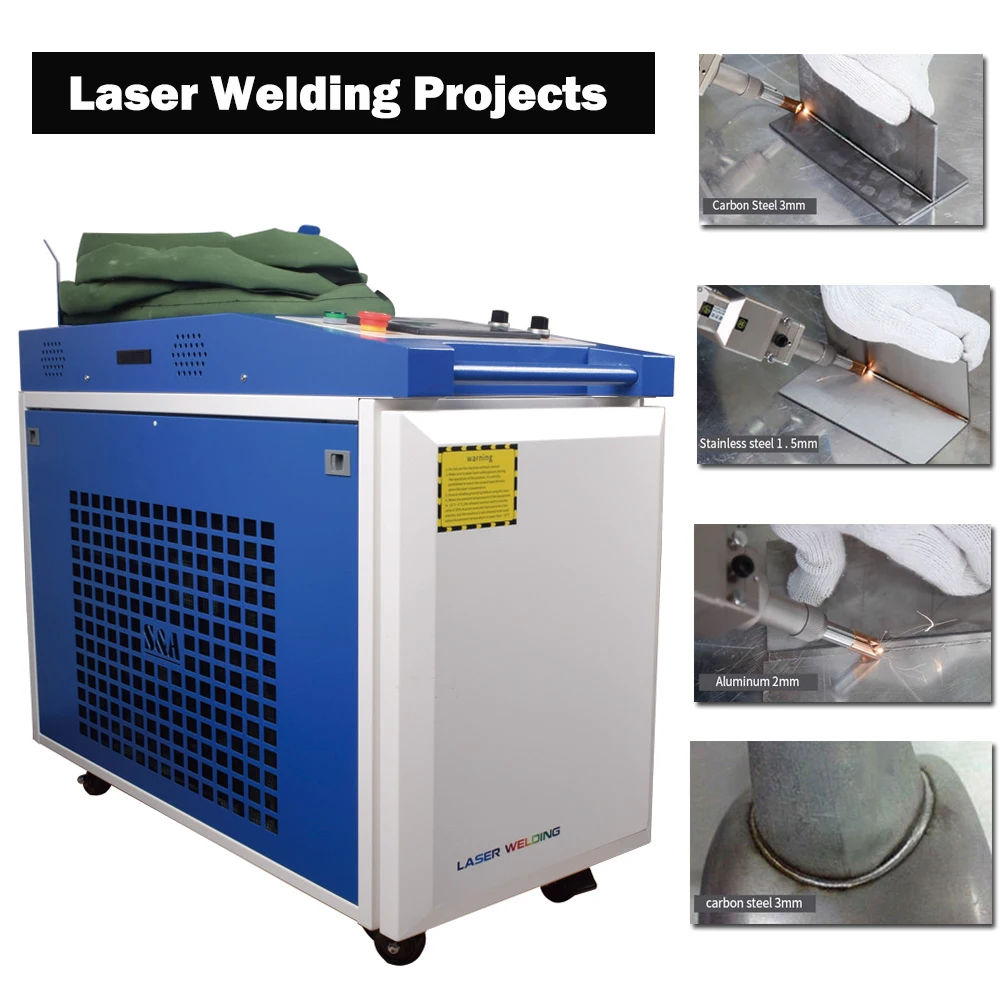

Laser welding
1) the weld is smooth and beautiful, the weld workpiece has no deformation, the weld is firm, and no
Subsequent grinding process is required, saving time and cost.
Fast welding speed, 2~10 times faster than traditional welding.
2) Easy operating do not require any training
Welding seam beautiful smooth and beautiful, don't need polish, save your time
No deformation or welding scar, welding the workpiece firmly.
3) easy maintenance
Laser welding has less consumption and long service life. Safer, more environmentally friendly.
4) Wildly used in kitchen and bathroom cabinet, stair lift, shelf, oven, stainless steel door and window
Guardrail, distribution box, stainless steel home.
Laser cleaning
1) Laser Rust Removal: Laser light can easily remove rust, after removal, the surface is restored to a bright metallic color or restore the original base color.
2) Laser Oil Removal: Metal surface oil cleaning (can remove oxide layer at the same time)
3) Laser Color Removal: removes various colors including Auto Duco on various surfaces and cars
4) stripping plating (galvanized layer, aluminized layer, protective plating, etc.)
5) Removal of aluminum alloy, titanium alloy, copper alloy oxide layer
6) Pre-Weld Pretreatments: After laser cleaning pretreats the aluminum alloy, the welding porosity defects are effectively suppressed
7) Post-weld cleaning: Non-Contact NDT removal of post-weld oxide layer and slag residue
8) Aluminum alloy pulsed laser remove dirt and oxide film before welding
Raycus 1500W/2000W/3000W fiber Laser welding machine Handheld laser cleaning machine
1. Three working modes, welding + cutting + cleaning. Simple switching, only need to replace the copper nozzle,
switch the system
2. About fiber cable length
Standard length is 10m, if you have other needs, we support shortening or lengthening.
3. Auxiliary gas: nitrogen or argon
If the welding surface effect is required to be white and bright, nitrogen or argon is required
If there is no requirement for the welding surface, add compressed air freeze Dryer, air is OK.
4. About wire feeder
It's the machine standard configuration, we will send to you together with the whole machine.
5. Machine warranty: 3 years for whole machine, 2 years for laser generator.
