China Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving FunctionChina Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving FunctionChina Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving FunctionChina Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving Function

China Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving Function

  • China Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving Function
  • Working area 300*180*40mm
  • Frame size 400*330*240mm
  • Spindle 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
  • Step motor 1.3A    0.25N.m
  • Power supply 24V     5.6A
China Hobby Mini DIY CNC Router Machine 3018.
This is the smallest DIY CNC router, mini CNC machine for hobby use made by ChinaCNCzone.
It is also with laser engraving function.
Mini order 10pcs.
Color with silver and red for selection.
Below is the parameters
Control software GRBL control
Construction Aluminum + plastic
Working area 300*180*40mm
Frame size 400*330*240mm
Spindle 775 spindle motor (12-36V) 24V: 7000r/min, 36V: 9000r/min
Step motor 1.3A    0.25N.m
Power supply 24V     5.6A
Supported system Windows XP/ Win 7/ Win 8/ Win10
Laser (options) 500mw   12V 405nm
2500mw/5500mw   12V 450nm
Drill bits Diameter: 3.175mm  tip: 0.1mm  length: 30mm
Weight 8KG

Note:

1. All the laser cannot work on any metal and the laser cannot cut plywood.

2. The diameters of both spindle and ER11 are correct, but ER11 is minus tolerance to spindle which means you cannot mount ER11 directly. ER11 needs shrink fitting. Contact us for more details if you are not familiar with shrink fitting or expansion fitting.

More pictures for this China Hobby Mini DIY CNC Router Machine GRBL Control with Laser Engraving Function.

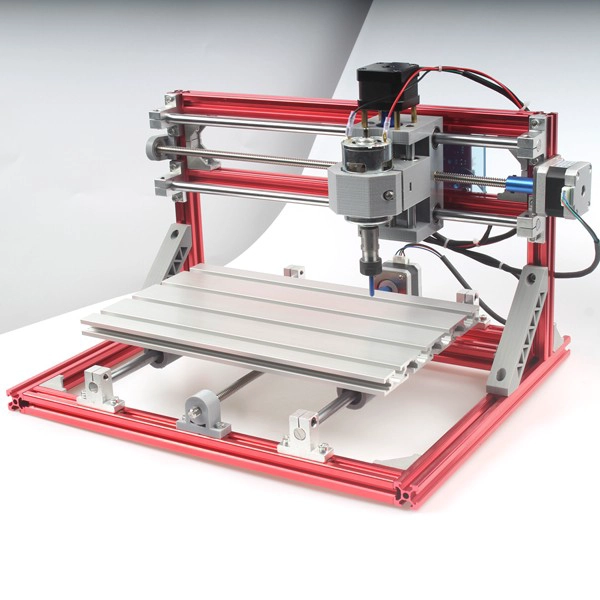

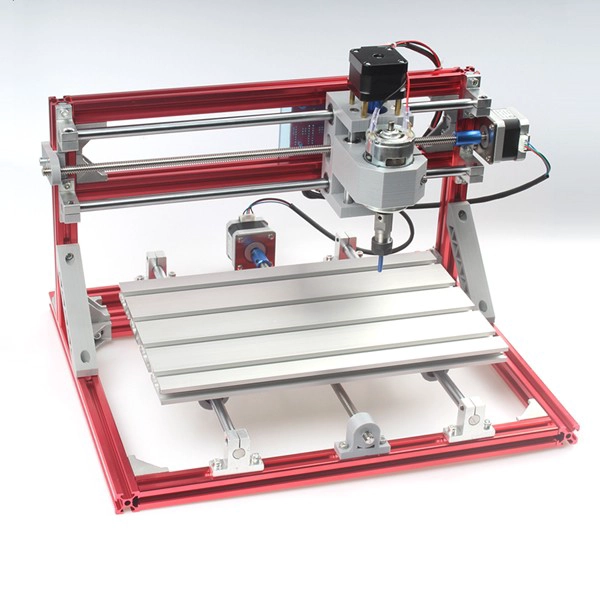

diy CNC router
DIY CNC router

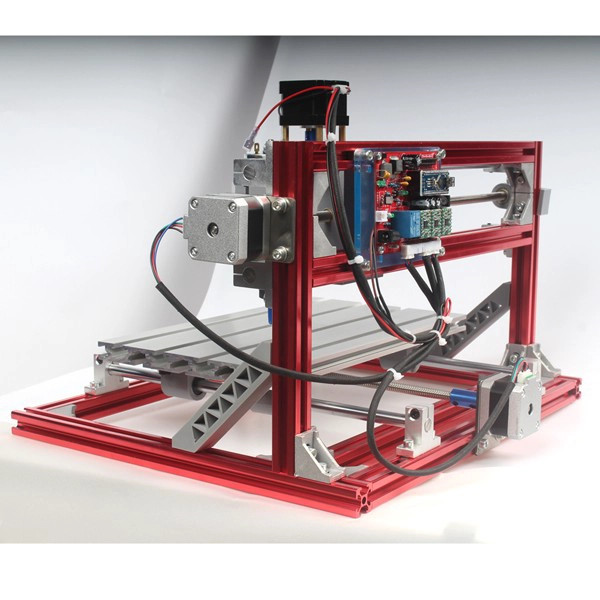

diy CNC machine
diy CNC machine

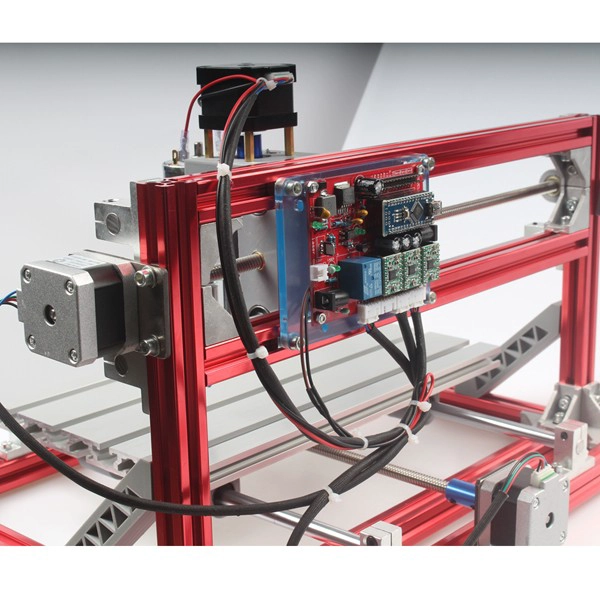

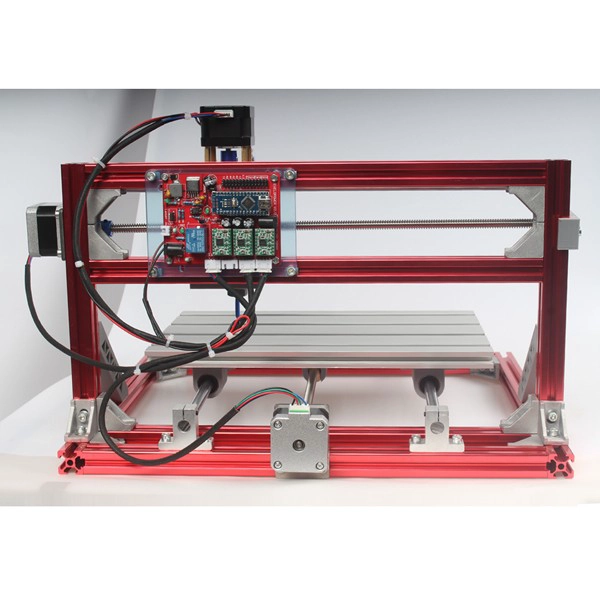

Diy CNC router machine

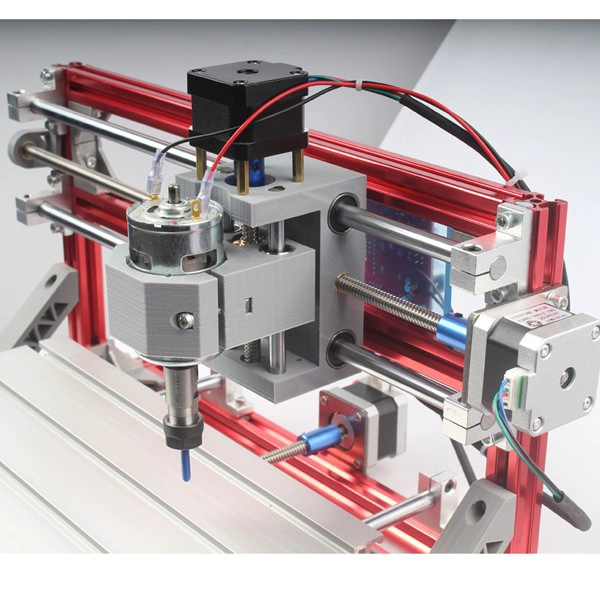

3018 DIY CNC Router

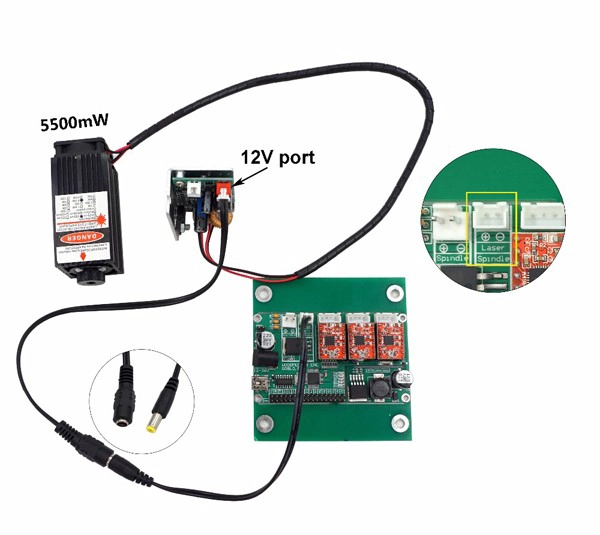

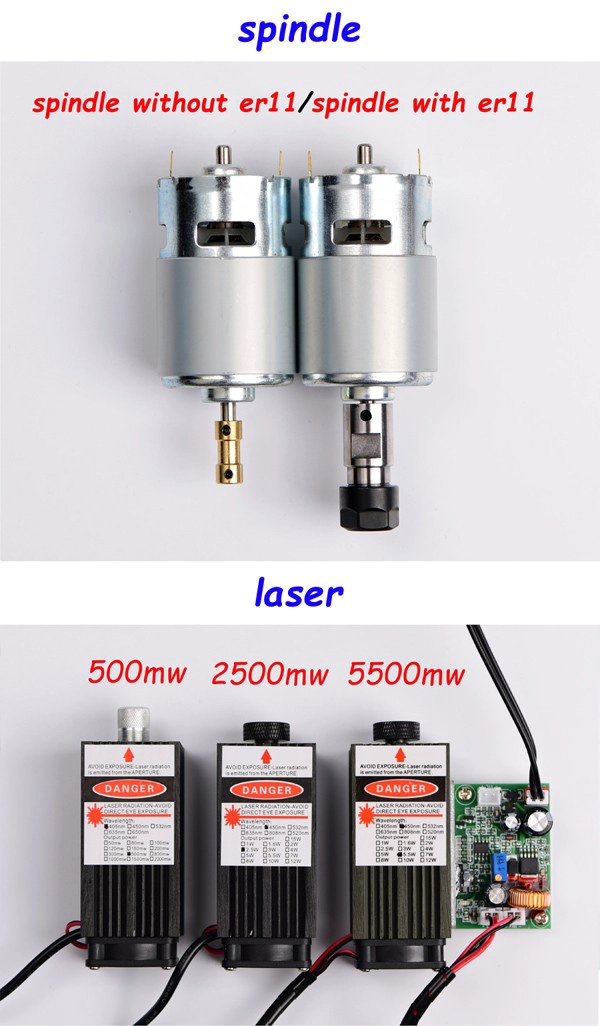

The laser head can be selected

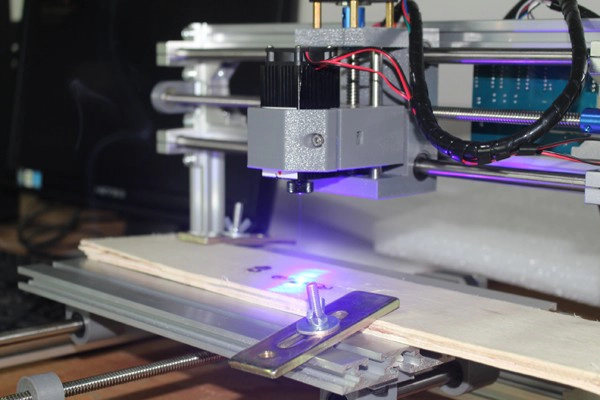

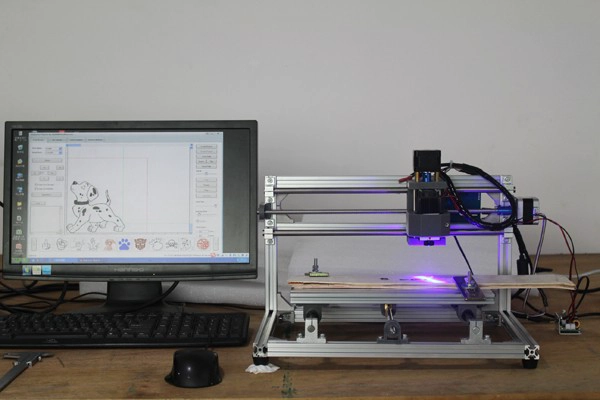

diy laser cnc machine
laser cnc diy

China Hobby Mini DIY CNC Router Machine Buyer Show
Hobby CNC router
DIY CNC Router machine
diy cnc machine

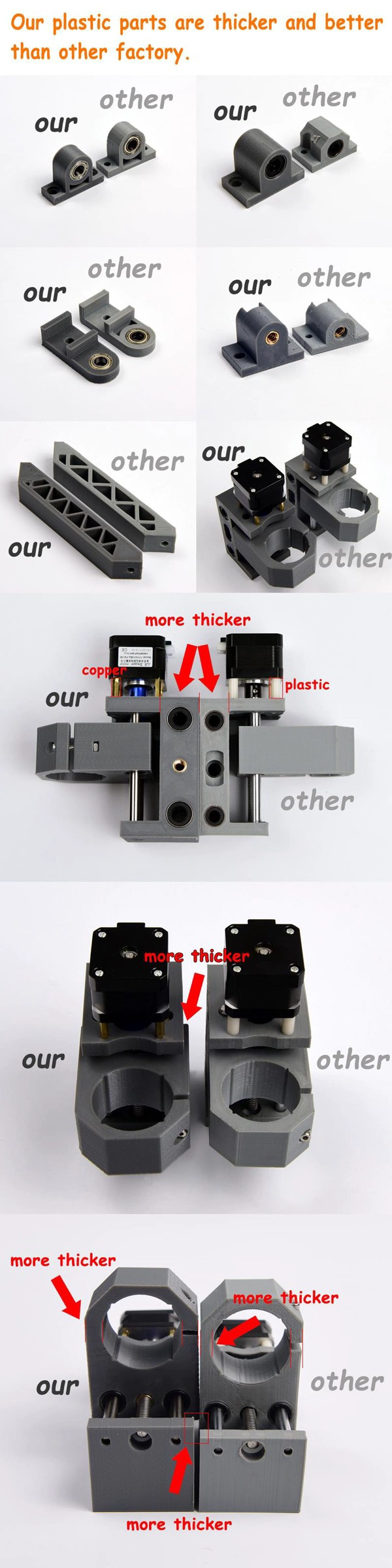

This Hobby Mini DIY CNC Router Machine 3018 with better quality as below:
