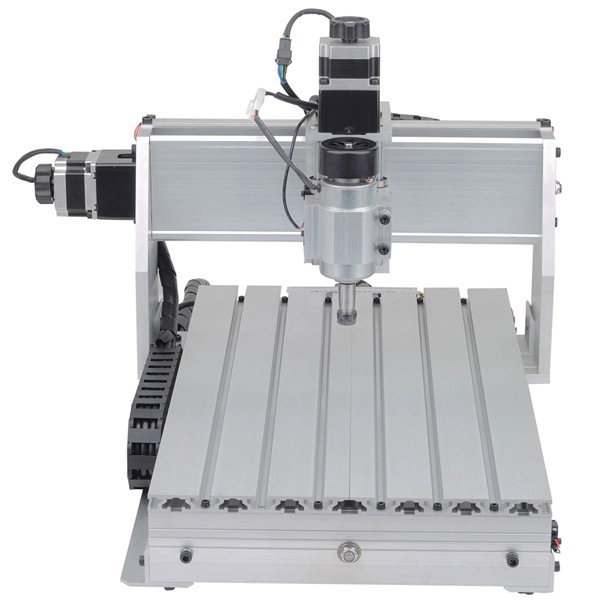

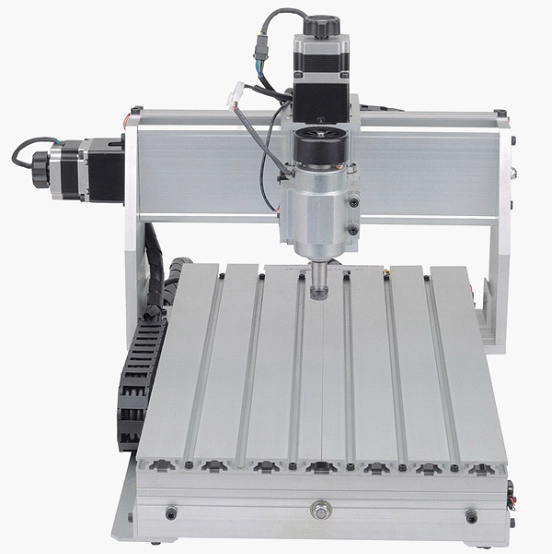

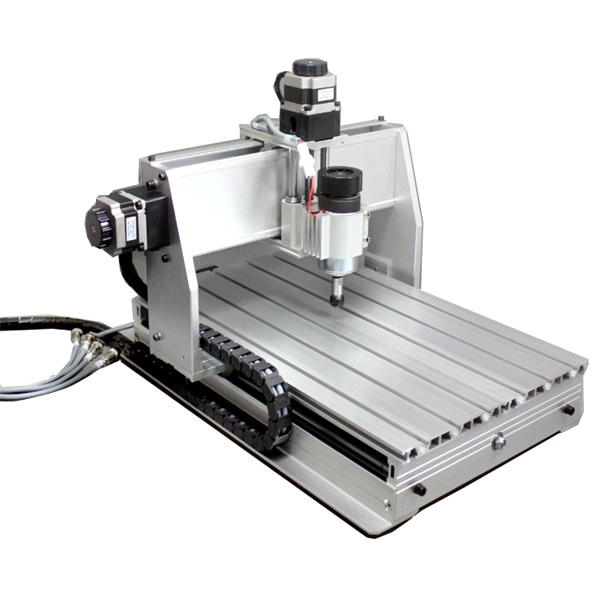

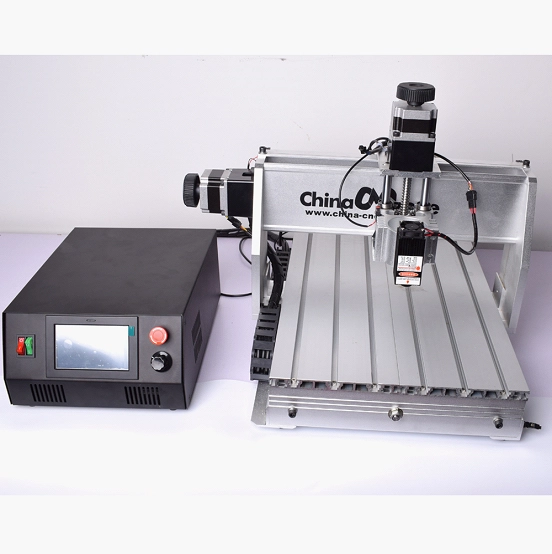

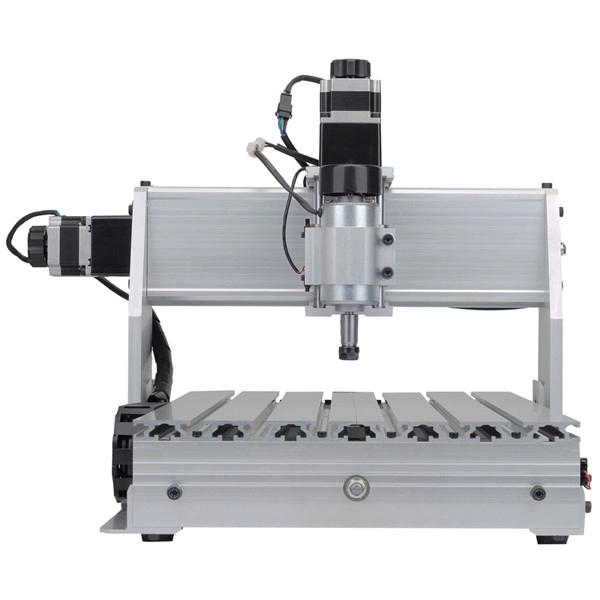

2 in 1 Highly Praised 3040 3Axis Mini 3D CNC Statue Making laser Machine
- Effective working travel: 280(X)mm*370(Y)mm*55(Z)mm
- Shape dimension: 615*485*390mm
- Max.workpiece dimension: 280mm*370mm<70mm
- Work table dimension: 530mm*320mm
- Frame materials: aluminum alloy 6063 and 6061
- Driving units X/Y/Z axis: SFUR1204-DFC7-P0 ball screw
- Sliding units X axis: Dia.16mm chrome plate shafts
- Sliding units Y axis: Dia.16mm chrome plate shafts
- Sliding units Z axis: Dia.12mm chrome plate shafts
- Stepping motor type: 57 two-phase 2.5A 55N.cm
- Spindle motor: Brand new 500w dc motor 11000PRM/Min 52MM 100V
- Laser head: 5500MW
- 4Axis precision maximum clamping diameter: K11 3-jaw chuck hollow shaft, 1.8 degree Angle, 3:1 (Synchronous belt), 13.33 steps per ,maximum clamping diameter 52mm.
- Principal axis collet: ER11/3.175 mm
- Positional accuracy: 0.05mm
- Spindle precision: radial beat acuities 0.03 mm
- Control unit: JP382A +2 Independent power+ Continuously Variable speed +1635A 4th Axis drive board
- Code: G code/TAB files/nc file/NCC files L
- Maximum speed: 0-3000mm/min
- Carving speed: 300-2500mm/min (different materials differerent)
- Operating Voltage: AC110V/AC220V
- Acceptable software: DSP control
- Protection: Emergency stop button
- Accessories: Auto checking tool , cutter, the same as accessories photo
- Warranty: ONE YEAR
- Package size: 1 carton, 63*51*42cm
- Gross weight: 27kg
Highlights for this 3 Axis CNC 3040
1. 500w Air Cooling Spindle, 5500MW laser head
2. Ball screw high precision
3. Independent power supply for main board, prolonged using life.
4. DSP control
5. Limited switch added
6. Auto-Checking function
7. Add 4 axis, can engrave cylinder object.
This 3040 3Axis Mini 3D CNC Statue Making Machine can be widely used as below
Widely used in Industry,Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes, Building Model Making, PCB, Advertising Signs, Artwork,Crafts, Aircraft Models, RC Model parts, etc.
Can engrave wood,MDF board, native wood, PVC, Acrylic, non ferrous metal ect.
Packing list for this 3040 3Axis Mini 3D CNC Statue Making
Machine
1 Engraving machine
1 Controller box with inverter
installed in it
1 230w air cooling
spindle
1 USB cable
1 Parallel cable
1 Power cable
4 Engraving bit
4 Limited switch
1 Auto-checking tool
1 set of clamp tool
FAQ
Packing : Standard 7-layer corrugated carton box with protective foam
MOQ : 1 Sample welcomed, it will be a nice try.
Shipping : By express DHL, UPS, EMS, Fedex and Sea.
Software: If use parallel port, use Mach3 software
If use USB port, use USB CNC software.
User Manual : English user manual will send with the machine
Video : Video Supported in Pre-sales and After-sales service
Don't hesitate to contact us !
