Steel Structure USB Port Cnc Milling Machine 5 Axis Mini CNC 3040 For Wooden Building Model

  • Author:chinacnczone
  • Release on :2019-12-05
On December 5, 2019, our company conducted a wooden building model engraving. The following are more details.

Step 1. Preparation

(1)   Below is our wood material before engraving:

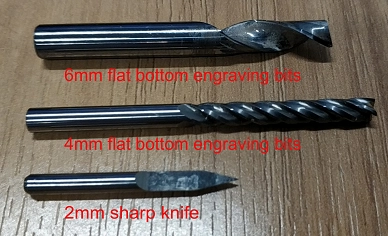

(2) Below are our engraving bits:

(3) Below is the steel structure USB port cnc milling machine 5 axis mini CNC 3040 used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 6mm flat bottom engraving bits . Acurracy Engraving By 1mm sharp bits,Acurracy Engraving By 4mm flat bottom engraving bits,

(1)Rough Engraving

Table 1 .Rough Engraving Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

2000mm/min

Feed Depth

0.5mm

Precision

0.02mm

Processing Time

15mins(0.25h)

(2)Acurracy Engraving By 1mm sharp bits

This is the first step of Acurracy Engraving, which is mainly to polish Wooden building model.

Table 2 .Half Rough Engraving 1mm sharp bits

Project

Value

Carving Tool

1mm sharp bits

Spindle Speed

15000RPM

Feed Speed

1000mm/min

Feed Depth

0.05mm

Precision

0.03mm

Processing Time

90mins(1.5h)

(3)Acurracy Engraving By 4mm flat bottom engraving bits

This is the final Acurracy Engraving, the precise production of Wooden building model is completed through this step

Table 3 .Half Rough Engraving 4mm flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

4mm flat bottom engraving bits

Spindle Speed

12000RPM

Feed Speed

800mm/min

Feed Depth

0.1mm

Precision

0.03mm

Processing Time

15mins(0.25h)

Step 3. Product comparison before and after engraving

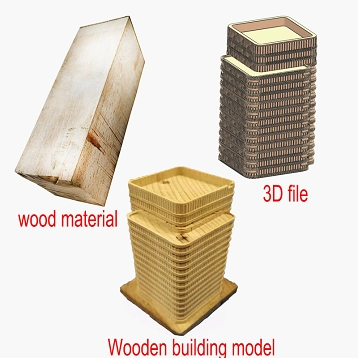

Below,the left picture is the Wooden building model before engraving, The right picture are the 3D picture file and Wooden building model after engraving

Chinacnczone wish you all the best.
