Steel Structure CNC 3040 USB Port Stone Metal Engraving Machine For Aluminium Model

  • Auteur:chinacnczone
  • Relâchez le:2019-12-13

On December 13, 2019, our companyconducted a aluminium model engraving. The following are more details.

Step 1. Preparation

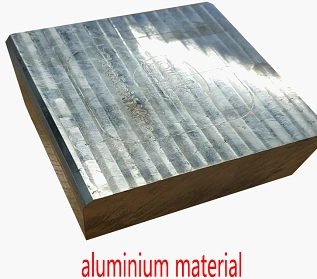

(1)  Below isour aluminium material before engraving:

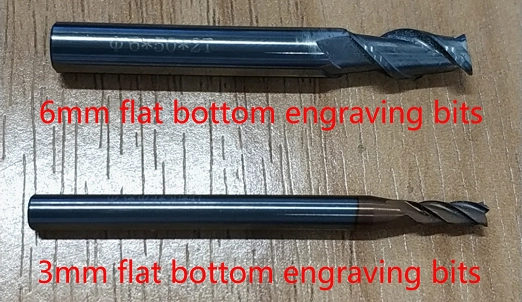

(2)Below are our engraving bits:

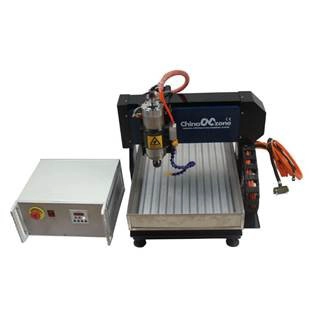

(3)Below is the Steel Structure CNC 3040 USB Port Stone Metal Engraving MachineFor Aluminium Model used in our engraving process:

Step 2. Process:

These are our experimental procedures,which mainly include two aspects: rough engraving by 6mm flat bottom engravingbits and 3mm flat bottom engraving bits. Acurracy Engraving by6mm flat bottom engraving bits and 3mm flat bottom engraving bits,

(1)Rough Engraving by 6mm flat bottom engravingbits

Table 1 .Rough Engraving by 6mm flat bottom engravingbits Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

1500mm/min

Feed Depth

0.3mm

Precision

0.03mm

Processing Time

30mins

(2)Rough Engraving by 3mm flat bottom engravingbits

Table 2 .Rough Engraving by 3mm flat bottom engravingbits Parameter Table

Project

Value

Carving Tool

3mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

1500mm/min

Feed Depth

0.1mm

Precision

0.03mm

Processing Time

16mins

(3)Acurracy Engraving By by 6mm flat bottom engravingbits

This is the first step ofAcurracy Engraving, which is mainly to polish Wooden building model.

Table 3 .Half Rough Engravingby 6mm flatbottom engraving bits

Project

Value

Carving Tool

1mm sharp bits

Spindle Speed

12000RPM

Feed Speed

500mm/min

Feed Depth

0.01mm

Precision

0.03mm

Processing Time

20mins

(4)Acurracy Engraving By 3mmflat bottom engraving bits

This is the final AcurracyEngraving, the precise production of aluminium model is completed through this step.

Table 4 . Acurracy EngravingBy 3mm flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

3mm flat bottom engraving bits

Spindle Speed

15000RPM

Feed Speed

500mm/min

Feed Depth

0.01mm

Precision

0.03mm

Processing Time

15mins

Step 3. Product comparison before and afterengraving

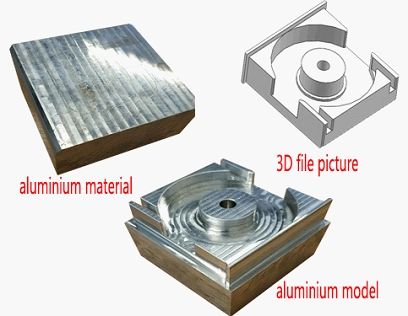

Below,the left picture is thealuminium model before engraving, The right picture are the 3D picture file andaluminium model after engraving.

Chinacnczone wish youall the best.
