Metal Cnc Router 3axis 2200w Machine For Bronze Mirror With Linear Guide

Metal Cnc Router 3axis 2200w Machine For Bronze Mirror With Linear Guide

chinacnczone 2019-11-14 17:27:43
On November 14, 2019, our company conducted aBronze Mirror engraving experiment. The following are more details.

Step 1. Preparation

(1) Belowis our jade Material before engraving:


(2) Beloware our engraving bits:

(3) Belowis the stone machine used in our engraving process:

Step 2. Process:

These are our experimentalprocedures, which mainly include two aspects: rough engraving, halfrough engraving and acurracy engraving

(1)Rough Engraving

Table 1 .Rough EngravingParameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

12000RPM

Feed Speed

1200mm/min

Feed Depth

0.3mm

Precision

0.03mm

Processing Time

60mins(1h)

(2)Half Rough Engraving

Table 2 .Half Rough EngravingParameter Table

Project

Value

Carving Tool

R2 ball mill

Spindle Speed

12000RPM

Feed Speed

4000mm/min

Feed Depth

0.2mm

Precision

0.03mm

Processing Time

90mins(1.5h)

(3)Acurracy Engraving

When the rough engraving andhalf rough engraving are completed, let's finish the acurracy engraving.

Table 3. Acurracy EngravingParameter Table

Project

Value

Carving Tool

R1 ball mill

Spindle Speed

20000RPM

Feed Speed

2500mm/min

Feed Depth

0.05mm

Precision

0.03mm

Processing Time

180mins(3h)

Step 3. Product comparison before andafter engraving

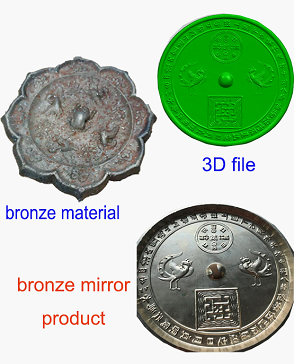

Below,the left picture is thebronze mirror material before engraving, The right picture is the bronze mirrorafter engraving.

Chinacnczone wish youall the best.
