Newest steel 6090 stone per metallo metal engraving cnc router machine

Newest steel 6090 stone per metallo metal engraving cnc router machine

  • Place of Origin:Guangdong, China
  • Brand Name:ChinaCNCzone
  • Voltage:220V/110V
  • Certification:CEDimension(L*W*H):131*99*87cm
  • Range of Spindle Speed(r.p.m):1 - 40000
  • Power (kW):2.2
  • Positioning Accuracy (mm):0.02 mm
  • Repeatability (X/Y/Z) (mm):0.02 mm
  • Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
  • Key Selling Points:High Rigidity
  • Weight (KG):213
  • Spindle Motor Power(kW):2.2
  • No. of Spindles:Single
  • Travel (X Axis)(mm):600 mm
  • Travel (Y Axis)(mm):900 mm
  • After Warranty Service:Online support
  • Local Service Location:None
  • Showroom Location:None
  • Working Table Size(mm):600*900
  • Machine Type:CNC Router
  • Effective Stroke:600(X)mm*900(Y)mm*120(Z)mm
  • Repeat positioning accuracy:0.05mm
  • Processing speed:0-4000mm/minute
  • table maximum load:15kg
  • material:Stainless steel tailgate
  • Input Poewr:220AC power supply
  • Output Current:Drive 4.5A (peak 5A)
  • Driven approach:Bipolar constant current PWMdrive output
  • Drive motor:57x78 steper motors, two-phase 4 wire stepper motor

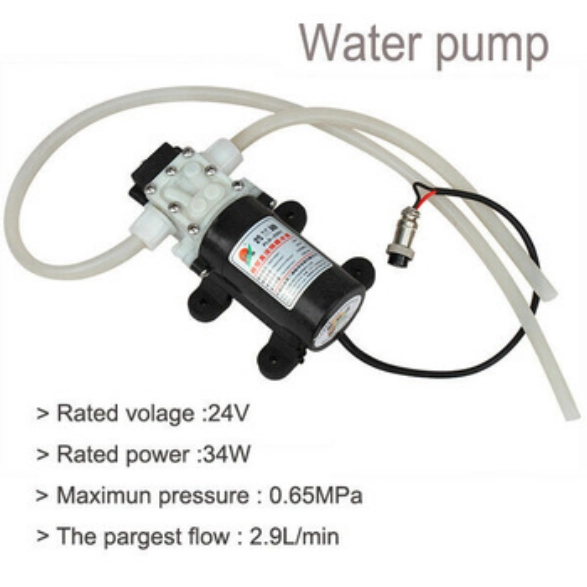

  • water-cooled frequency spindle:2200w
  • Warranty:1 year free and 2-3 year cost

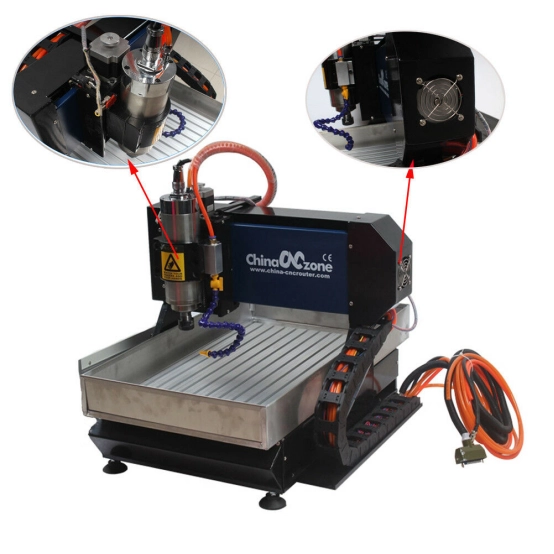

Chinacnczone 6090 3/4 Axis Mini CNC Stone Engraving  Machine For Metal


* It can work with 3 axis / 4 axis
* Integrated high-speed micro computer intelligent control chip.
* First STEEL STRUCTURE CNC3040 in the Market
* Mach 3 software, supports Win10

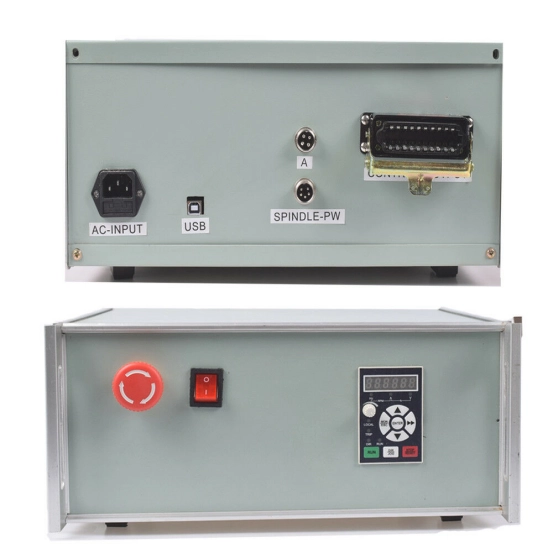

* Built in frequencey converter and without controller box
* Applicable to steel, aluminum, brass, copper, stone, granite etc.


Specification Sheet

* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.

Effective working travel

600(X)mm*900(Y)mm*100(Z)mm

Shape dimension

870*1100*600mm

Work table dimension

#45 steel

Frame materials

≤120mm

acceptable material thickness

SFUR1605-DFC7-P0 ball screw

Driving units X/Y/Z axis

Dia.30mm chrome plate shafts

Sliding units X axis

Dia.20mm chrome plate shafts

Sliding units Y axis

Dia.16mm chrome plate shafts

Sliding units Z axis

57 two-phase 2.5A 55N.cm

Stepping motor type

Brand new 2200W water cooling spindle, 24000RPM

Spindle motor

ER20 1-13mm,

Principal axis collet

0.05mm

Repeat accuracy

radial beat acuities 0.03 mm

Spindle precision

MACH3 Support windows 10

Software environment

0-4000mm/min

Maximum speed

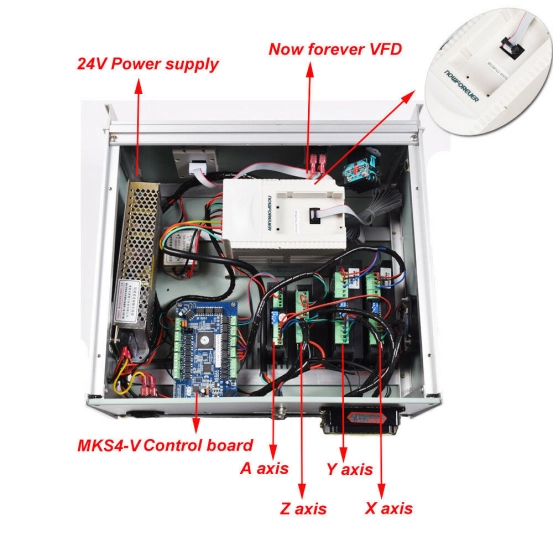

XHC main board

Control unit

USB port

Computer connection

G code, tap, NC, ncc etc.

Command code

Emergency stop button

Protection

AC220V/110V

Operating Voltage

1 Year for the whole machine, 3 months for the spindle

Warranty

One wooden box, 134*98*86cm

Package size

150KG

The 4th axis Size

220(L)*116(W)*105(H)

The 4th axis Center-height

65mm

The 4th axis Clamping diameter

80mm

The 4th axis Reduction ratio

1:3

Tips: 4th Axis for optional,4axis can engrave cylindrical objects



Our Advantages

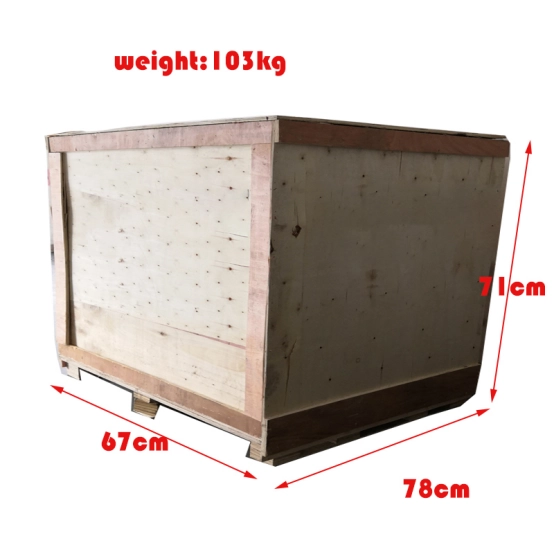

Product packaging


Recommend Products

5 axis 6040 mini cnc router:4060 Cutting Center Pcb Routers Wood Carving 5 Axis Mill Engraving Lathe Router Mini Cnc Milling Machine

3/4 axis 6090 mini cnc wood router:3D Carving Wood Bead Etching Frame Working Drilling Milling Cut Making Turning Cnc Wood Cutter Machine

5 axis 3040 steel structure metal engraving machine:Spindle Motor Tools Price Small Kit Spare Parts Bits Stone Metal Cutting 5 Axis Cnc Router Machine

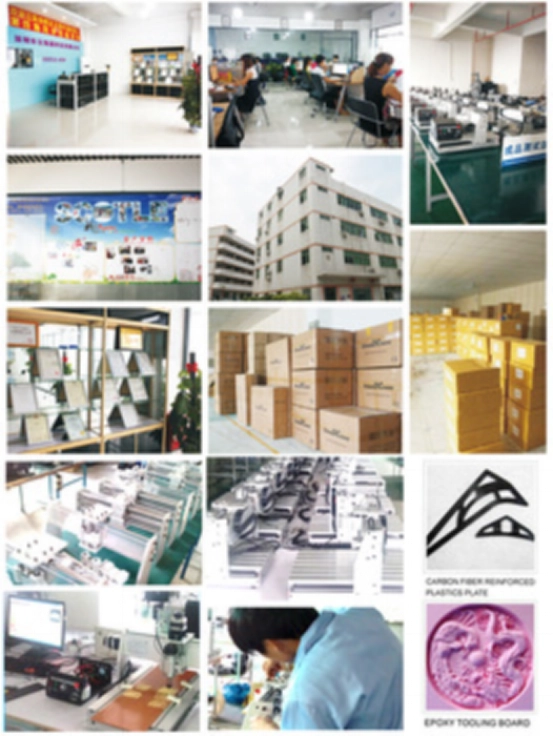

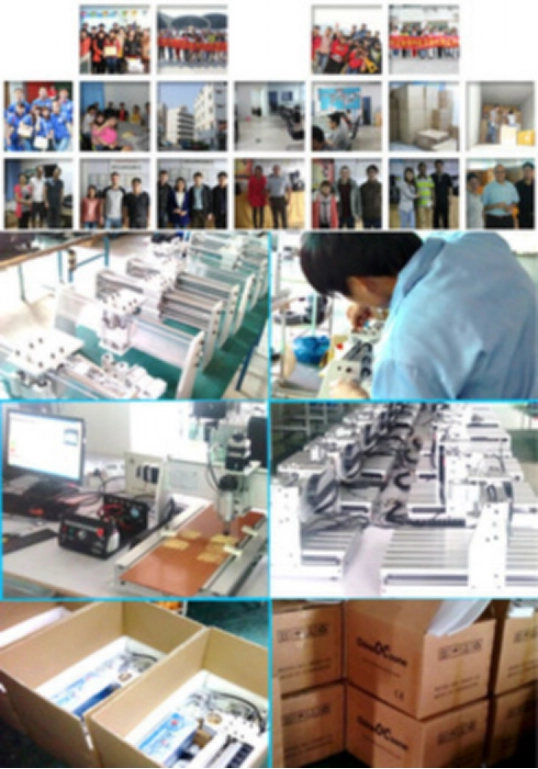

Company Profile

FAQ

After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .

Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support service.

Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote assistance .

Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by Alibaba message with photos or videos . We will give you a satisfied solution after check it.

Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.

Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free replacement can send when needed

PS: Any other question welcome to contact us by Alibaba message .We are always here with you!
Our working time is 9:00AM-6:00PM from Monday-Friday .All the service can be provide during working time.
