3d 5 axis small mini cnc milling machine for wooden pipe high accuracy 0.01mm

  • Autor:chinacnczone
  • Lassen Sie auf:2020-04-10

On April 10, 2020, our company conducted a Wooden pipe engraving. The following are more details.

Step 1. Preparation

(1) Below is our wood material before engraving:

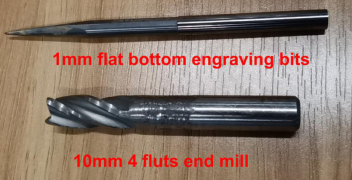

(2) Below are our engraving bits:

(3) Below is the 3d 5 axis small mini cnc milling machine for wooden pipe high accuracy 0.01mm used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 10mm 4 fluts end mill ,accuracy engraving by 1mm flat bottom engraving bits

(1)Rough Engraving by 10mm 4 fluts end mill

Table 1 .Rough Engraving by 10mm 4 fluts end mill Parameter Table

Project

Value

Carving Tool

10mm 4 fluts end mill

Spindle Speed

10000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

30mins

(2)Accuracy Engraving by 1mm flat bottom engraving bits

This is the all step of accuracy Engraving

Table 2 .Accuracy Engraving by 1mm flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

4mm R2 end mill

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

30mins

Step 3. Product comparison before and after engraving

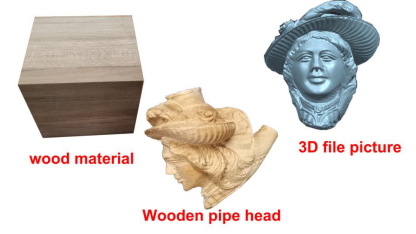

Below,The two figures above are the wood material and 3d file picture, The following picture is Wooden pipe sample after engraving.

Chinacnczone wish you all the best.
