ChinaCNCzone Powerful 4 Axis CNC 6040 Router Small CNC Machine with USB Controller (1500W or 2200W)ChinaCNCzone Powerful 4 Axis CNC 6040 Router Small CNC Machine with USB Controller (1500W or 2200W)ChinaCNCzone Powerful 4 Axis CNC 6040 Router Small CNC Machine with USB Controller (1500W or 2200W)ChinaCNCzone Powerful 4 Axis CNC 6040 Router Small CNC Machine with USB Controller (1500W or 2200W)

ChinaCNCzone Powerful 4 Axis CNC 6040 Router Small CNC Machine with USB Controller (1500W or 2200W)

  • CNC 6040 4 Axis Parameters
  • Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
  • Shape dimension 880*670*640mm
  • Max.workpiece dimension 750mm*450mm<150mm
  • Carving Instructions G code/TAB files/nc file/NCC files/DXF file/GERBER file
  • Communication interface through parallel and USB connection with computer
  • Software environment Windows xp/Win7/Win8/Win10
  • The 4th axis parameter
  • size 220(L)*116(W)*105(H)mm
  • centre-height 65mm
  • clamping diameter 80mm
  • reduction ratio 1:3
ChinaCNC Product Highlight
Powerful CNC 6040 4 axis CNC Router mini CNC Machine with USB Controller
Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
Shape dimension 880*670*640mm
Max.workpiece dimension 750mm*450mm<150mm
Work table dimension 750mm*480mm
acceptable material thickness ≤150mm
Outstanding features as below
1. 1500w / 2200w Water Cooled Spindle for selection
2. 4th axis can be Plug-and play, no need to replace controller box.
3. Technical support always available with live video support.
4. Ball screw high precision.
5. Independent power supply for mainboard, prolong using life.
6. Software: compatible with Mach3 or USB CNC software.
7. Limited switch added.
8. Auto-Checking function, easy to set origin of Z axis.

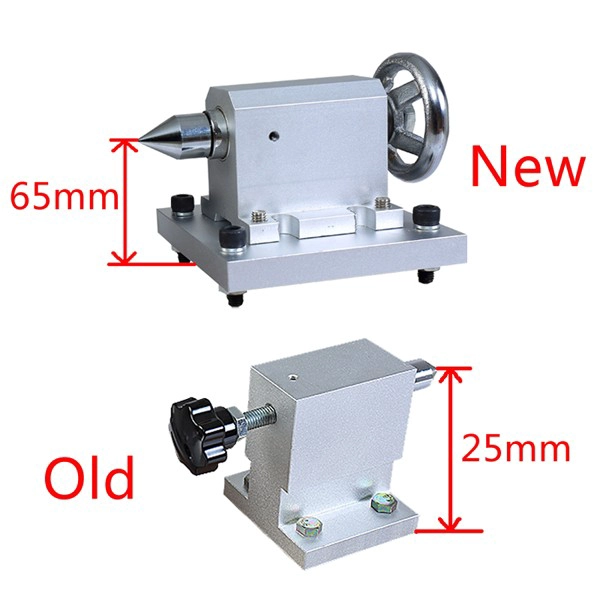

9. The 4th axis is updated, the centre-height is 65mm and clamping diameter is 80mm.
    the 4th axis CNC
CNC 4th Axis
10. Can be connected with computer and notebook by USB interface parallel port for
computer.

11.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
12. Spindle diameter: 80mm
13. Can ship from our overseas warehouse.
14. From professional China CNC router factory.
P.S: Original Mach3 soft available

Note: You may also intrested in below, Just click below link::
A.The comparisons of CNC 6040 made by ChinaCNCzone and Other suppliers.
B. What are the differences between ChinaCNCzone NEW CNC 6040 and Old Version?






CNC 6040 4 Axis Parameters
Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
Shape dimension 880*670*640mm
Max.workpiece dimension 750mm*450mm<150mm
Work table dimension 750mm*480mm
Frame materials aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
acceptable material thickness ≤150mm
Driving units X axis 1605 ballscrew
Y axis 1605 ballscrew
Z axis 1605 ballscrew
Sliding units  X axis Dia.16mm chrome plate shafts
Y axis Dia.20mm chrome plate shafts
Z axis  Dia.13mm chrome plate shafts
Stepping motor type  57 two-phase 3A 150N.cm
Spindle motor brand new 1.5KW water cooling spindle, 24000RPM
Principal axis collet  ER11/3.175 mm/6mm
Repeat accuracy 0.05mm
Spindle precision radial beat acuities 0.03 mm
Carving Instructions G code/TAB files/nc file/NCC files/DXF file/GERBER file
Communication interface through parallel and USB connection with computer
Software environment Windows xp/Win7/Win8/Win10
Maximum speed 0-4000mm/min
Carving speed 0-2500mm/min (different materials differ)
Control unit Toroidal transformer + PWM power supply module + TB6560 3axis drive board
Computer connection parallel port/USB port
Command code G code
Acceptable software Mach3,USBCNC
Protection Emergency stop button
Operating Voltage AC110V/AC220V
Machine weight (Package weight) 3 axis 57kg 4 axis 60KG
package dimension top:62*49*52cm Bot:80*22*63cm
The 4th axis parameter
size 220(L)*116(W)*105(H)mm
centre-height 65mm
clamping diameter 80mm
reduction ratio 1:3







CNC 6040 4 Axis
CNC 6040 4 AXIS


USB CNC To 25 Pins transfer cable


Ball Screw



This
4 Axis CNC 6040 Router Small CNC Machine can be widely used
as below:
A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
B. Ideal for milling, engraving, drilling & routing.
C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts

Mini CNC Router use

Mini CNC Router Application
CNC Router 6040 Can Do
