ChinaCNCzone CNC 6040 4 Axis Desktop CNC Router with DSP Controller (1500W or 2200W Spindle)

ChinaCNCzone CNC 6040 4 Axis Desktop CNC Router with DSP Controller (1500W or 2200W Spindle)

  • CNC 6040 4 Axis Parameters
  • Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
  • Shape dimension 880*670*640mm
  • Max.workpiece dimension 750mm*450mm<150mm
  • Carving Instructions G code/TAB files/nc file/NCC files/DXF file/GERBER file
  • Communication interface through parallel and USB connection with computer
  • Software environment Windows xp/Win7/Win8/Win10
  • The 4th axis parameter
  • size 220(L)*116(W)*105(H)mm
  • centre-height 65mm
  • clamping diameter 80mm
  • reduction ratio 1:3
ChinaCNC Product Highlight
CNC 6040 4 Axis Desktop CNC Router with DSP Controller (1500W or 2200W Spindle)
Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
Shape dimension 880*670*640mm
Max.workpiece dimension 750mm*450mm<150mm
Work table dimension 750mm*480mm
acceptable material thickness ≤150mm

Outstanding features as below
1. 1500w / 2200w Water Cooled Spindle for selection
2. 4th axis can be Plug-and play, no need to replace controller box.
3. Technical support always available with live video support.
4. Ball screw high precision.
5. Independent power supply for mainboard, prolong using life.
6. Software: compatible with Mach3 or USB CNC software.
7. Limited switch added.
8. Auto-Checking function, easy to set origin of Z axis.
9. The 4th axis is updated, the centre-height is 65mm and clamping diameter is 80mm.

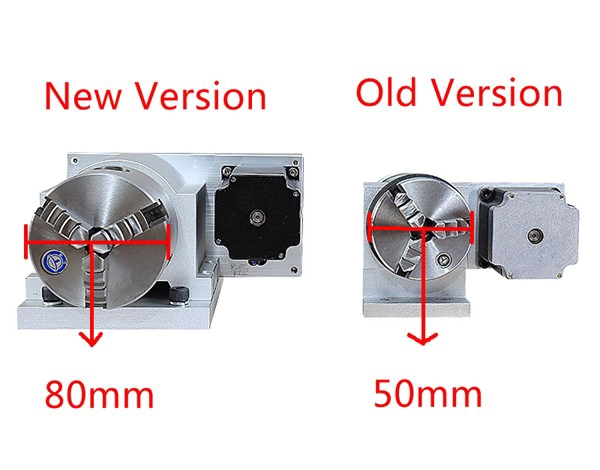

4 AXIS cnc

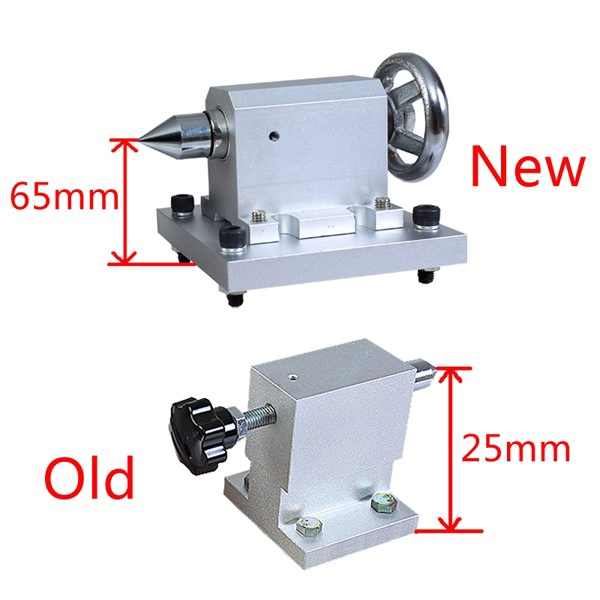

CNC 4 AXIS
10. Can be connected with computer and notebook by USB interface parallel port for
computer.

11.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
12. Spindle diameter: 80mm
13. Can ship from our overseas warehouse.
14. From professional China CNC router factory.
P.S: Original Mach3 soft available
What are the advantages for the DSP Control System ?
  • Independent DSP system, work without a computer.
  • Insert TF memory card, automatic reading and processing files.
  • By operating the control box, you can program and carving directly.
  • G-code files can be directly edited, delete, insert, and so on

  • Note: You may also intrested in below, Just click below link::

    A.The comparisons of CNC 6040 made by ChinaCNCzone and Other suppliers.
    B. What are the differences between ChinaCNCzone NEW CNC 6040 and Old Version?





    CNC 6040 4 Axis Parameters
    Effective working travel 580(X)mm*400(Y)mm*105(Z)mm
    Shape dimension 880*670*640mm
    Max.workpiece dimension 750mm*450mm<150mm
    Work table dimension 750mm*480mm
    Frame materials aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let  counterfeiters dwarfs
    acceptable material thickness ≤150mm
    Driving units X axis 1605 ballscrew
    Y axis 1605 ballscrew
    Z axis 1605 ballscrew
    Sliding units  X axis Dia.16mm chrome plate shafts
    Y axis Dia.20mm chrome plate shafts
    Z axis  Dia.13mm chrome plate shafts
    Stepping motor type  57 two-phase 3A 150N.cm
    Spindle motor brand new 1.5KW water cooling spindle, 24000RPM
    Principal axis collet  ER11/3.175 mm/6mm
    Repeat accuracy 0.05mm
    Spindle precision radial beat acuities 0.03 mm
    Carving Instructions G code/TAB files/nc file/NCC files/DXF file/GERBER file
    Communication interface through parallel and USB connection with computer
    Software environment Windows xp/Win7/Win8/Win10
    Maximum speed 0-4000mm/min
    Carving speed 0-2500mm/min (different materials differ)
    Control unit Toroidal transformer + PWM power supply module + TB6560 3axis drive board
    Computer connection parallel port/USB port
    Command code G code
    Acceptable software Mach3,USBCNC
    Protection Emergency stop button
    Operating Voltage AC110V/AC220V
    Machine weight (Package weight) 3 axis 57kg 4 axis 60KG
    package dimension top:62*49*52cm Bot:80*22*63cm
    The 4th axis parameter
    size 220(L)*116(W)*105(H)mm
    centre-height 65mm
    clamping diameter 80mm
    reduction ratio 1:3







    CNC 6040 4 Axis Desktop CNC Router
    CNC Router 6040 DIY 4 Axis CNC Mill
    6090 CNC Router DSP Controller Box

    USB CNC To 25 Pins transfer cable

    6090 CNC Router DSP Controller Interface

    6040 CNC mill 4 axis

    Ball Screw



    This
    CNC Router 6040 DIY 4 Axis CNC Milling Machine can be widely used
    as below:
    A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.
    B. Ideal for milling, engraving, drilling & routing.
    C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts

    Mini CNC Router use

    Mini CNC Router Application
    CNC Router 6040 Can Do

    3040 CNC Router for Aluminum

    ChinaCNCzone Factory Tour


    China CNC Router Factory
    Mini CNC Router Certificate

    ChinaCNCzone Mini CNC Router

    ChinaCNCzone Certificate

    ChinaCNCzone Company culture

    ChinaCNCzone Culture
    ChinaCNCzone Team
