Steel structure 3040 5 axis cnc stonemachinery engraving metal jade cutting machine For Lion head ja

Steel structure 3040 5 axis cnc stonemachinery engraving metal jade cutting machine For Lion head ja

chinacnczone 2020-01-11 11:46:12
On January 11, 2020, our company conducted a Lion head jade relief engraving. The following are more details.

Step 1. Preparation

(1) Below is our Lion head jade relief before engraving:

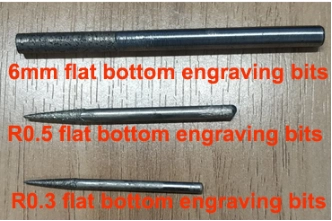

(2) Below are our engraving bits:

(3) Below is the steel structure 3040 5 axis cnc stonemachinery engraving metal marble cutting machine For Lion head jade relief used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 6mm flat bottom engraving bits,acurracy engraving by R0.5 flat bottom engraving bits and R0.3 flat bottom engraving bits

(1)Rough Engraving by 6mm flat bottom engraving bits

Table 1 .Rough Engraving by 6mm flat bottom engraving bitsl Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

9000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

40mins

(2)Accuracy Engraving by R0.5 flat bottom engraving bits

This is the first step of Acurracy Engraving

Table 2 .Accuracy Engraving by R0.5 flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

R0.5 flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.1mm

Precision

0.02mm

Processing Time

60mins

(3)Acurracy Engraving By R0.5 flat bottom engraving bits

This is the final Acurracy Engraving, the precise production of Lion head jade relief is completed through this step.

Table 3 . Acurracy Engraving By R0.5 flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

R0.5 flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

60mins

Step 3. Product comparison before and after engraving

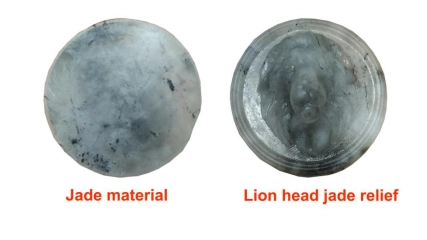

Below,the left picture is the Lion head jade relief before engraving, The right picture is Lion head jade relief after engraving.

Chinacnczone wish you all the best.
