steel structure 3040 5 axis cnc milling machine aluminum for sale

steel structure 3040 5 axis cnc milling machine aluminum for sale

chinacnczone 2020-05-22 16:14:08

On May 22, 2020, our company conducted a aluminum sample engraving. The following are more details.

Step 1. Preparation

(1) Below is our steel stainless material before engraving:

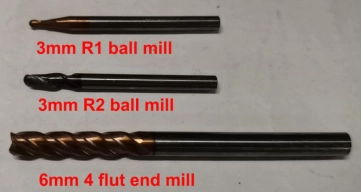

(2)Below is our engraving bits:

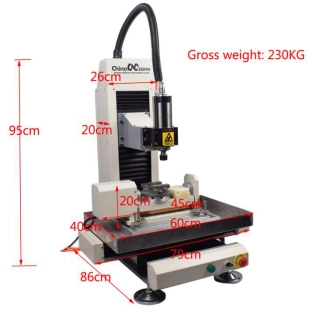

(3)Below is the steel structure 3040 5 axis cnc milling machine aluminum for sale used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 6mm 4 flut end mill ,accuracy engraving by 3mm R2 ball end mill and  3mm R1 ball end mill

(1)Rough Engraving by 6mm 4 flut end mill

Table 1 .Rough Engraving by 6mm 4 flut end mill Parameter Table

Project

Value

Carving Tool

6mm 4 flut end mill

Spindle Speed

11000RPM

Feed Speed

1000mm/min

Feed Depth

0.3mm

Precision

0.02mm

Processing Time

20mins

(2)Accuracy Engraving by 3mm R1 ball end mill and 3mm R2 ball end mill

This is the first step of accuracy Engraving

Table 2 .Accuracy Engraving by 6mm R1 ball end mill Parameter Table

Project

Value

Carving Tool

3mm R1 ball end mill

Spindle Speed

10000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

30mins

This is the finally step of accuracy Engraving

Table 3 .Accuracy Engraving by 3mm R2 ball end mill Parameter Table

Project

Value

Carving Tool

3mm R2 ball end mill

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

30mins

Step 3. Product comparison before and after engraving

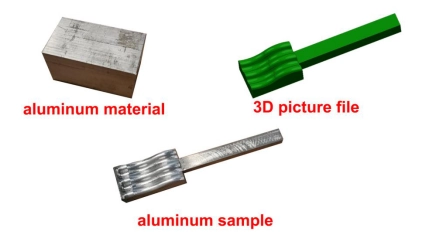

Below,The two figures above are the aluminum material and 3d picture file, The following picture is aluminum sample after engraving.

Chinacnczone wish you all the best.
