mini cnc metal 3040 4 axis metal cutting machine for Aluminum parts

mini cnc metal 3040 4 axis metal cutting machine for Aluminum parts

chinacnczone 2020-02-17 16:26:25
On february 17, 2020, our company conducted a Aluminum parts engraving. The following are more details.

Step 1. Preparation

(1) Below is our Aluminum parts before engraving:

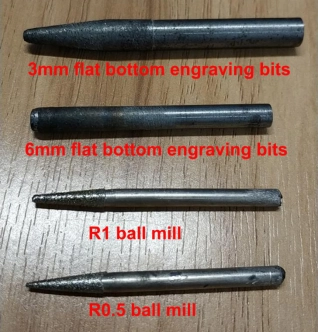

(2) Below are our engraving bits:

(3) Below is the mini cnc metal 3040 4 axis metal cutting machine for Aluminum parts used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 3mm flat bottom engraving bits and 6mm flat bottom engraving bits,accuracy engraving by R1 flat bottom engraving bits and R0.5 flat bottom engraving bits

(1)Rough Engraving by 6mm flat bottom engraving bits

Table 1 .Rough Engraving by 6mm flat bottom engraving bitsl Parameter Table

Project

Value

Carving Tool

3mm flat bottom engraving bits

Spindle Speed

9000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

40mins

(2)Rough Engraving by 3mm flat bottom engraving bits

Table 1 .Rough Engraving by 6mm flat bottom engraving bitsl Parameter Table

Project

Value

Carving Tool

3mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

60mins

(3)Accuracy Engraving by R1 flat bottom engraving bits

This is the first step of accuracy Engraving

Table 2 .Accuracy Engraving by R1 flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

R1 flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.1mm

Precision

0.02mm

Processing Time

60mins

(4)Accuracy Engraving By R0.5 flat bottom engraving bits

This is the final accuracy Engraving, the precise production of Aluminum parts is completed through this step.

Table 3 . Accuracy Engraving By R0.5 flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

R0.5 flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

300mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

60mins

Step 3. Product comparison before and after engraving

Below,the two on the left are the jade material and 3d file picture, The right picture is Aluminum parts sample after engraving.

Chinacnczone wish you all the best.
