Factory 6090 2.2kw jade CNC router machine for good price

Factory 6090 2.2kw jade CNC router machine for good price

chinacnczone 2020-03-12 15:19:52
On March 12, 2020, our company conducted a jade ashtray engraving. The following are more details.

Step 1. Preparation

(1) Below is our jade ashtray before engraving:

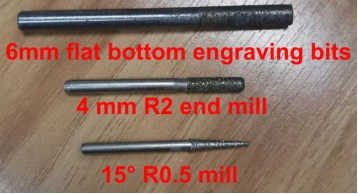

(2) Below are our engraving bits:

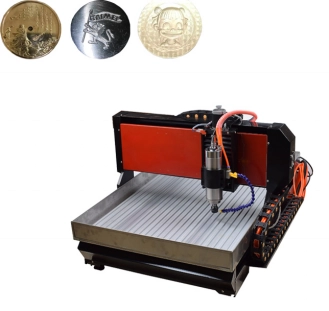

(3) Below is the factory 6090 2.2kw jade CNC router machine for good price for jade ashtray used in our engraving process:

Step 2. Process:

These are our experimental procedures, which mainly include three aspects: rough engraving by 6mm flat bottom engraving bits and 6mm flat bottom engraving bits,accuracy engraving by 4mm R2 end mill and 15° R0.5 flat bottom engraving bits

(1)Rough Engraving by 6mm flat bottom engraving bits

Table 1 .Rough Engraving by 6mm flat bottom engraving bitsl Parameter Table

Project

Value

Carving Tool

6mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

40mins

(2)Rough Engraving by 3mm flat bottom engraving bits

Table 1 .Rough Engraving by 6mm flat bottom engraving bitsl Parameter Table

Project

Value

Carving Tool

3mm flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

800mm/min

Feed Depth

0.15mm

Precision

0.02mm

Processing Time

60mins

(3)Accuracy Engraving by 4mm R2 end mill

This is the first step of accuracy Engraving

Table 2 .Accuracy Engraving by 4mm R2 end mill Parameter Table

Project

Value

Carving Tool

4mm R2 end mill

Spindle Speed

10000RPM

Feed Speed

500mm/min

Feed Depth

0.1mm

Precision

0.02mm

Processing Time

60mins

(4)Accuracy Engraving By 15° R0.5 flat bottom engraving bits

This is the final accuracy Engraving, the precise production of jade ashtray is completed through this step.

Table 3 . Accuracy Engraving By 15° R0.5 flat bottom engraving bits Parameter Table

Project

Value

Carving Tool

15° R0.5 flat bottom engraving bits

Spindle Speed

10000RPM

Feed Speed

300mm/min

Feed Depth

0.05mm

Precision

0.02mm

Processing Time

60mins

Step 3. Product comparison before and after engraving

Below,the two on the left are the jade material and 3d file picture, The right picture is jade ashtray sample after engraving.

Chinacnczone wish you all the best.
