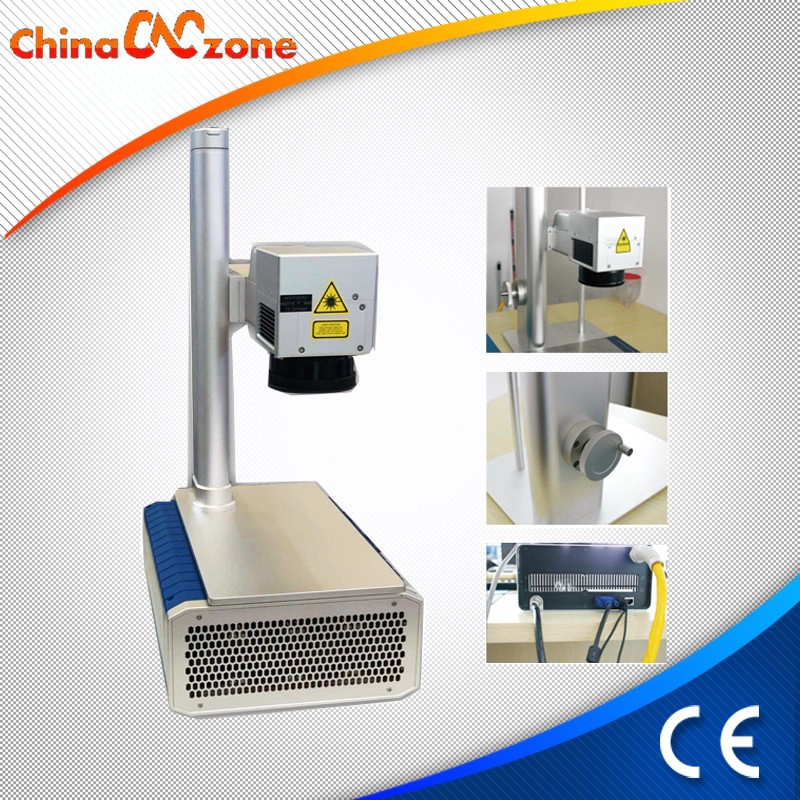

New Product! FLM-001 20W Portable Mini Fiber Laser Marking Machine Price Competitive for Metal Engraving

New Product! FLM-001 20W Portable Mini Fiber Laser Marking Machine Price Competitive for Metal Engraving

  • MODEL FLM-001 Mini Fiber Laser Marking Machine
  • Laser Power 20W
  • Laser Brand MAX BRAND
  • High speed Galvo Scanner China Made
  • Laser wave length 1064nm
  • Marking speed ≤7000mm/s
  • Marking depth 0.05~0.5 mm (accord to the material)
  • General Power 500W
  • Optional device On-line flying marking, 3D marking,Rotary marking, accord to customer request
ChinaCNC Product Highlight

New Product! FLM-001 20W Portable Mini Fiber Laser Marking Machine Price Competitive for Metal Engraving

Compared with our mini CNC engraving machine such as CNC 6040, CNC 3040, CNC 6090, the fiber marking machine can engrave also easily on metals such as gold,copper, aluminum ,stainless steel, chrome, brass etc

Main features for our FLM-001 20W Portable Mini Fiber Laser Marking Machine
Latest mini version with wifi function
1.High speed galvo scanner

2.Easy Operate without route maintenance
3.Higher precision,faster speed
4.Air cooling
  Small size,low power consumption
5.Red light preview
  Show the marking position before lasering
6.Up and Down Lifter laser head(desktop) and up and down worktable easy to marking engraving different workpiece
7.Rotary attachment optional
  Engrave and mark inside and outside ring jewellery
8.High temperature resistance
  Perfect for marking medical equipment etc that requires sterilization
9.The durability & Finer Marking quality
   Optimizes it for use in jewelry, mobile phones, and other items of value.
10.Computer Installed with Free Powerful software10.
   User friendly interface, easy operation
   Set and deal different layers graphic in separate Support PLT,PCX, AL, DXF, BMP,JPG    formats file
  Compatible AutoCAD, CorelDraw, Photoshop etc software
  Automatic serialization, date coding letter, symbol, pattern, figure, image, bar code, 2D code auto arrangement and amendment

HY-3040 Parameters





MODEL FLM-001 Mini Fiber Laser Marking Machine
Laser Power 20W
Laser Brand MAX BRAND
High speed Galvo Scanner China Made
Laser wave length 1064nm
Marking Area 70×70mm 110×110mm 160×160mm for selection
Marking speed ≤7000mm/s
Marking depth 0.05~0.5 mm (accord to the material)
Minimum Line width 0.01mm
Minimum character 0.1mm
Cooling way forced air cooling
General Power 500W
Power Supply 220V/50Hz/1kVA
Optional device On-line flying marking, 3D marking,Rotary marking, accord to customer request



laser marking machine price
20W Portable Mini fiber laser marking machine
Mini Fiber Laser Marking Machine Price Competitive for metal engraving




This 20W Portable Mini Fiber Laser Marking Machine can be widely use to mark/printing and engrave on many type of metal material and some non metallic material with different design text, symbol,pattern,bar code,2D code, serial number,
and suitable for online marking.
