ChinaCNCzone New DSP CNC 6090 3 Axis 4 Axis Mini CNC Router with 1500W/2200W Spindle and Water Cool System Z Axis 150mmChinaCNCzone New DSP CNC 6090 3 Axis 4 Axis Mini CNC Router with 1500W/2200W Spindle and Water Cool System Z Axis 150mmChinaCNCzone New DSP CNC 6090 3 Axis 4 Axis Mini CNC Router with 1500W/2200W Spindle and Water Cool System Z Axis 150mmChinaCNCzone New DSP CNC 6090 3 Axis 4 Axis Mini CNC Router with 1500W/2200W Spindle and Water Cool System Z Axis 150mm

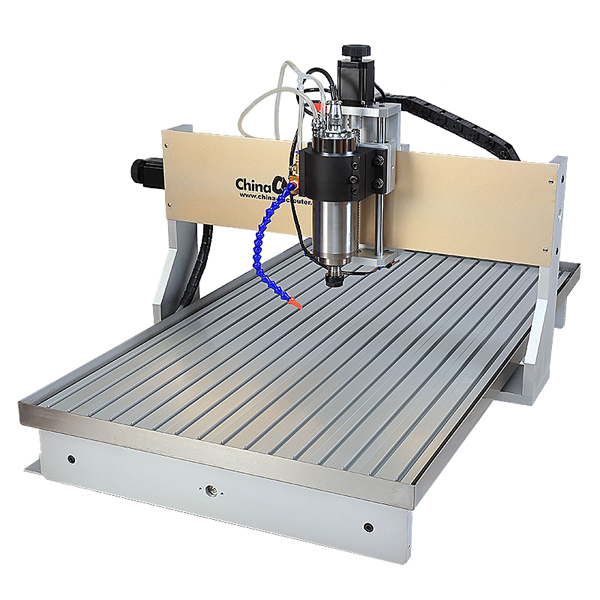

ChinaCNCzone New DSP CNC 6090 3 Axis 4 Axis Mini CNC Router with 1500W/2200W Spindle and Water Cool System Z Axis 150mm

  • Shape dimension X890mm*Y1250mm*Z670mm
  • Max.workpiece dimension X600mm*Y900mm*Z150mm
  • Acceptable material thickness ≤150mm
  • Spindle motor brand new 2.2kw water cooling spindle, 24000RPM
  • Spindle collet ER16-A, 3-10 mm shank diameter tool
  • Repeat accuracy <=0.05mm
  • Maximum speed 4000mm/min
  • Carving speed 0-2500mm/min (different materials differ)
  • Command code G code
  • Software Mach 3 or USB software
  • Operating Voltage AC110V/AC220V
ChinaCNC Product HighlightChinaCNCzone New DSP CNC 6090 mini CNC router with 1500W/2200W Spindle and Water Cool System

Why add the Sink cooling system ?
It can cool the spindle and protect the machine.
Avoid the spindle burn out.when you
Can engrave the high hardness or metal
It can improve the efficiency and accuracy of the machine.

What are the main features for this new DSP CNC 6090 Mini CNC Router
1.The acceptable material thickness and effective working area of Z axis is 150mm.
2. New added water cooling system, enlarge the working fields and prolong the working life.
3. With 1500W and 2200W Spindle selection
4. With 3 axis and 4 axis CNC version for selection, the 3 axis version can be updated into 4 axis easily according to your need.
5. USB interface
6. English manual available.
7.Can engrave material such acrylic, brass, wood, aluminum, PCB and so on.
8.Balls crew made it a higher precision.
9.Auto-Checking function, easy to set origin of Z axis
10.With built-in frequency converter in control box
11.It has a broaded base and a thicker screw for larger material working.
12.Limited switches added.
13.From reliable & trustable profesional China CNC Router manufacturer.
14.DSP controller box.
15.It has a broaded base and a thicker screw for larger material working.

What are the advantages of the DSP controller box?

1. with the DSP controller box with independent DSP system,the mini CNC router can work without a computer.
2. After copy the G-code to your SD card, you can insert TF memory card to the TF card slot on the DSP controller box, and then run the G-code directly,
3. G-code files can be directly edited, delete, insert through the DSP controller system.
4.Very easy to operate and suitable for factory application.
5. Select the mini CNC router with DSP controller system, NO need to to use the mach3 software any more.






    DSP CNC 6090 router Parameters
    Effective working travel 600(X)mm*900(Y)mm*150(Z)mm
    Shape dimension 890*1250*670mm
    Frame materials Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
    Axis 3 Axis and 4 Axis version
    Acceptable material thickness ≤150mm
    Driving units X,Z SFUR1605-DFC7-P0  ball screw,  Y SFUR2005-DFC7-P0 ball screw
    Sliding units X Axis Dia.30mm chrome plate shafts
    Sliding units Y Axis Dia.30mm chrome plate shafts
    Sliding units Z axis Dia.16mm chrome plate shafts
    Stepping motor type  57 two-phase 3A 150N.cm
    4 Axis size and precision 220(L)*116(W)*105(H)mm, 9KG Transmission ratio: 1:3,  0.6 degree/step, K11
    4Axis maximum clamping diameter Center height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm ,Tailstock maximum expansion length 50mm ,Maximum clamping weight 30kg
    Spindle motor Changlong GDZ80-2.2, 24000RPM, 1500/2200W
    Principal axis collet ER20  1-13mm
    Repeat accuracy 0.05mm
    Spindle precision radial beat acuities 0.03 mm
    Maximum speed 0-4000mm/min
    Control unit E100S2R2B + JMC542 drive board+1635A 4th Axis drive board + DSP Controller
    Computer connection DSP control No need connect computer
    Command code G code, or any MACH3 support format file
    Protection Emergency stop button
    Operating Voltage AC220V/110V
    Accessories Pump, Auto checking tool , cutter, banner and so on.
    Warranty Two Year
    Package size One wooden box package , 121*86*82cm
    Gross weight 156KG

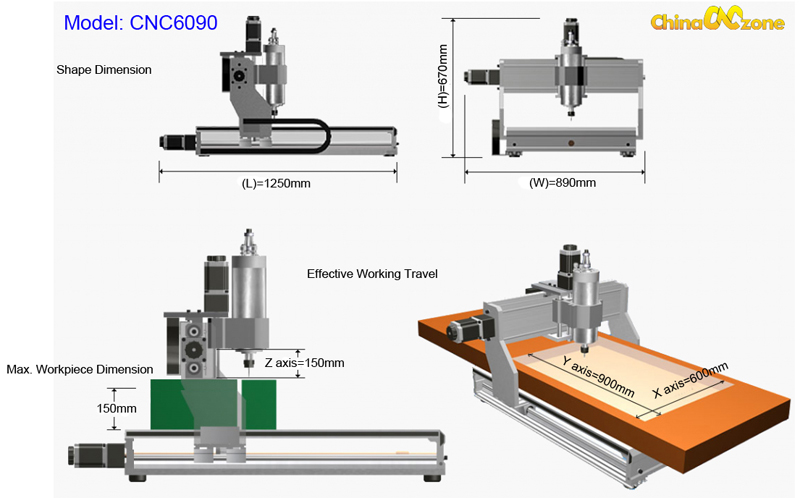

    CNC 6090 key parameters


    CNC 6090 with cooling system

    CNC 6090 3 Axis

    CNC 6090


    CNC 6090

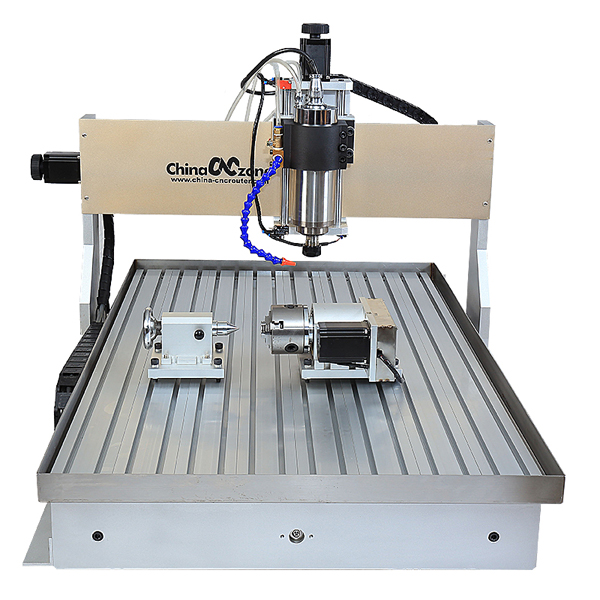

    CNC 6090 4 Axis with Cooling

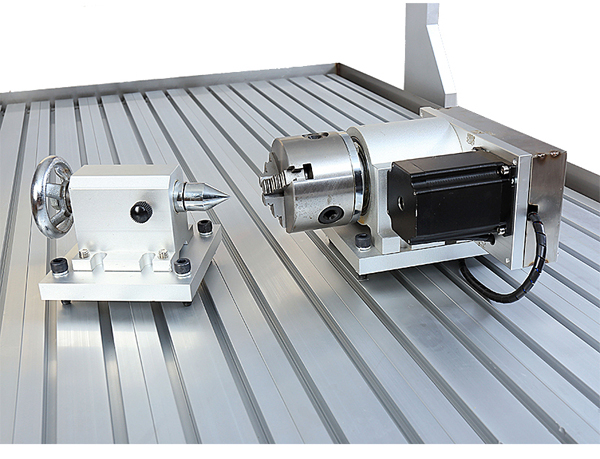

    cnc 6090 4 Axis

    CNC 6090 water cooling



    CNC 6090 working
    CNC 6090

    6090 CNC Router DSP Controller Box
    CNC Router 6090 DSP Controller Box
    6090 CNC Router DSP Controller Interface

    Ball Screw

    CNC 6090 Mini CNC Engraving Machine 3 Axis
    6090 CNC Router Packing list
    CNC 6090 Packing
    6090 CNC Router Packing

    This new DSP CNC 6090 with cooling system  can be widely used to engrave wood, acrylic, brass, alumimun,PVC, PCB and so on.
